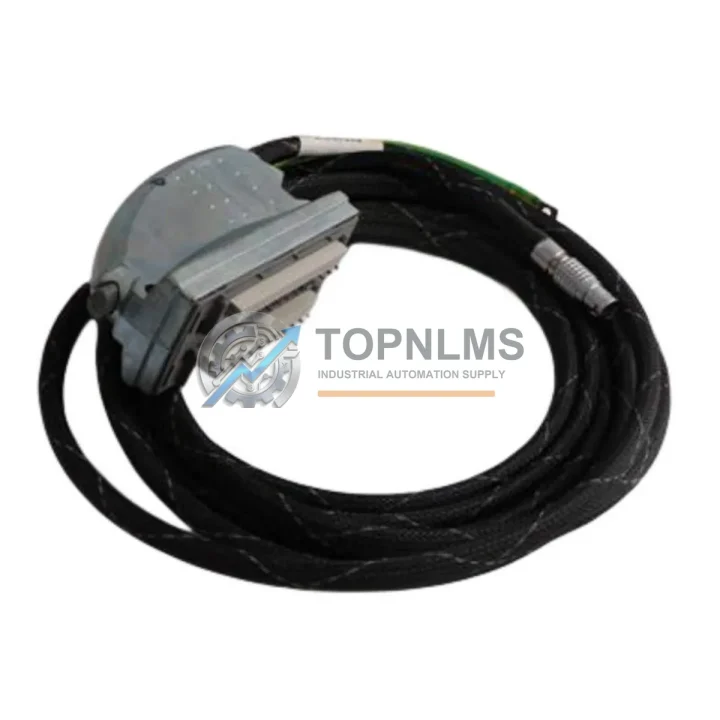

ICS TRIPLEX TC-308-02-2M5 Original Industrial Spare TC-308 Compatible

Product Overview

ICS TRIPLEX TC-308-02-2M5 Original Industrial Spare — System Stability & Safety-Critical Reliability

The ICS TRIPLEX TC-308-02-2M5 is an original safety communication module from the ICS Triplex TC-308 Trusted Safety System (TSS) series, engineered for Triple Modular Redundancy (TMR) architectures operating at SIL 2 and SIL 3 integrity levels. In safety-instrumented systems (SIS) across oil & gas, petrochemical, power generation, and heavy process industries, this module serves as the backbone of inter-chassis and inter-controller communication — ensuring that voted safety logic is transmitted without single-point failure risk.

Sourced directly from authorized supply channels, every TC-308-02-2M5 unit stocked by TOPNLMS undergoes pre-shipment functional verification. With a 12-month warranty and same-week dispatch capability, this module is the preferred choice for maintenance engineers managing aging Trusted Safety System installations where OEM lead times are unacceptable during unplanned shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy for TC-308 TSS Platforms

A scheduled maintenance window on a TC-308 Trusted Safety System chassis is the optimal time to audit the entire safety communication infrastructure — not just the failed or suspect module. The TC-308-02-2M5 communication module operates in close dependency with several adjacent components, and a proactive replacement strategy significantly reduces the probability of cascading failures during the next proof-test cycle.

During chassis inspection, maintenance teams should simultaneously evaluate the condition of TC-308 power supply modules (typically dual-redundant), as degraded power rails are a leading cause of intermittent communication faults that are often misattributed to the communication module itself. Alongside power supply health, the TC-308 I/O modules — both digital input and digital output variants — should be checked for contact wear, terminal corrosion, and firmware revision alignment with the current system baseline.

The inter-chassis communication harness connected to the TC-308-02-2M5 relies on proprietary TSS communication cables; inspect cable connectors and shielding integrity at both ends, as mechanical fatigue at the chassis entry point is a common failure mode in high-vibration environments. If the plant operates multiple TSS chassis in a networked configuration, the TC-308 network interface modules and associated Modbus or HART gateway modules should be included in the inspection scope.

For the voted logic layer, verify that all three TMR processor modules — the TC-308 CPU / controller modules — are running synchronized firmware and that no single leg is reporting persistent diagnostic alarms. A communication module replacement is most effective when the processor modules are confirmed healthy, as a degraded CPU can generate false communication faults post-replacement.

At the field interface level, review the TC-308 analog input modules connected to critical process transmitters (pressure, temperature, flow) and confirm that signal ranges and engineering unit scaling remain within calibrated tolerances. Simultaneously, inspect terminal block assemblies and marshalling panels for loose wiring, oxidized terminals, and labeling accuracy — these are frequently overlooked during module-focused maintenance but are a primary source of nuisance trips.

For plants running ICS Triplex systems alongside Triconex or Hima safety controllers in a hybrid SIS architecture, ensure that safety relay output modules interfacing between the TSS and final elements (valves, motors, dampers) are tested for coil resistance and contact integrity during the same outage window. Stocking a spare TC-308 communication module such as the TC-308-02-2M5 alongside one spare power supply module and one spare I/O module per chassis is the minimum recommended buffer inventory for a 12-month maintenance cycle in a continuous-process facility.

Strategic Replacement Solutions

The TC-308-02-2M5 is a direct OEM replacement for aging or failed communication modules within the ICS Triplex TC-308 Trusted Safety System platform. As OEM production of legacy TSS components has been discontinued or placed on extended lead time, sourcing original spare modules through specialist industrial distributors like TOPNLMS is the most reliable path to maintaining system integrity without undertaking a full SIS migration project.

Replacing the TC-308-02-2M5 with an original module — rather than an unauthorized substitute — preserves the TÜV SIL 2/3 certification of the installed system, avoids the need for re-validation testing, and maintains compatibility with existing chassis backplane firmware. This is critical for facilities operating under IEC 61511 functional safety management requirements, where any non-like-for-like replacement triggers a formal management of change (MOC) process and potentially a full proof-test requalification.

For plants managing end-of-life TC-308 systems, a strategic approach involves maintaining a rolling stock of 1–2 communication modules per chassis, rotating them on a 3–5 year replacement cycle aligned with proof-test intervals. This approach eliminates unplanned downtime caused by communication module failure — one of the most disruptive fault modes in a TMR safety system, as it can force the system into a safe state (shutdown) even when process conditions are normal.

TOPNLMS maintains stock of TC-308-02-2M5 and related TSS spare parts with rapid dispatch capability, supporting both emergency breakdown scenarios and planned maintenance procurement programs. All units are shipped with original packaging where available, accompanied by a test report and 12-month warranty documentation.

Support FAQ

Q1: Is the TC-308-02-2M5 an original ICS Triplex part or a third-party compatible?
The TC-308-02-2M5 supplied by TOPNLMS is an original ICS Triplex component sourced through authorized industrial supply channels. It is not a third-party replica or compatible substitute. Using original modules ensures your TC-308 TSS system retains its SIL 2/3 certification and avoids MOC re-validation requirements under IEC 61511.

Q2: What pre-shipment testing is performed on the TC-308-02-2M5?
Every unit undergoes functional verification prior to dispatch, including communication interface continuity checks and visual inspection for connector integrity and physical damage. A test report is included with shipment. The module is covered by a 12-month warranty from the date of delivery.

Q3: How quickly can the TC-308-02-2M5 be shipped for an emergency breakdown?
For in-stock units, TOPNLMS offers same-week dispatch with express international freight options. Emergency orders are prioritized. Contact [email protected] or +86 18359293191 directly for urgent requirements and real-time stock confirmation.

Q4: Can I use the TC-308-02-2M5 as a long-term inventory buffer for my TC-308 system?
Yes. Given the discontinuation risk for legacy TSS components, procurement teams are advised to hold 1–2 spare communication modules per chassis as strategic buffer stock. The TC-308-02-2M5 has a shelf life suitable for long-term storage when kept in original packaging in a controlled environment (temperature 10–30°C, humidity <70% RH). TOPNLMS can support blanket order arrangements for multi-unit procurement.
