ICS Triplex T8314 Replacement for Trusted TMR Series

Product Overview

ICS Triplex T8314 Replacement & Upgrade Solution for Trusted TMR Series: Seamless Migration from Legacy Fiber Optic Architectures

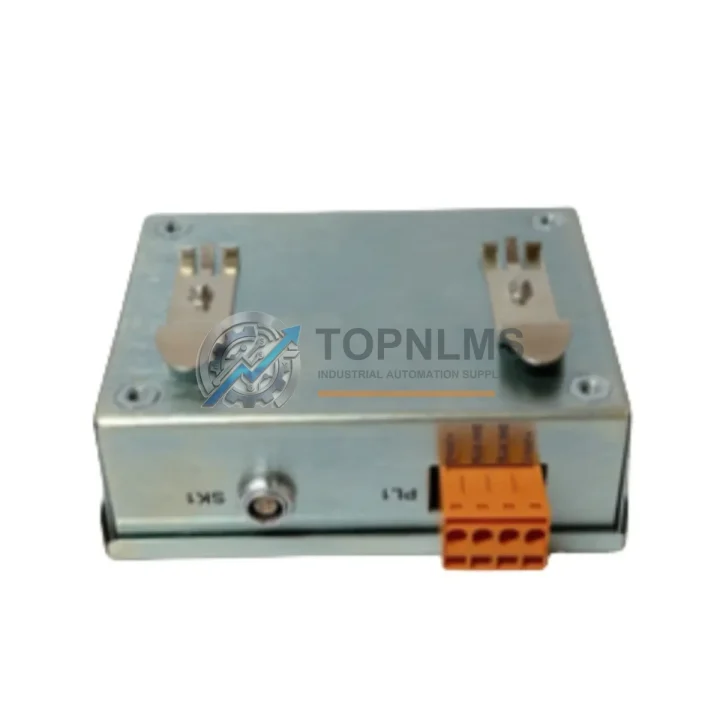

The ICS Triplex T8314 is a Fiber Optic TX/RX Module designed for the Trusted TMR (Triple Modular Redundancy) safety system platform — one of the most widely deployed high-integrity control architectures in oil & gas, petrochemical, power generation, and offshore processing facilities. As the T8314 approaches end-of-life availability and many sites face obsolescence challenges with aging Trusted TMR racks, sourcing a verified replacement or upgrade path has become a critical procurement priority for maintenance engineers and reliability teams worldwide.

At TOPNLMS, we specialize in supplying hard-to-find, discontinued, and legacy industrial control system components. The T8314 units we stock are sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a 12-month warranty — giving your engineering and procurement teams the confidence to plan maintenance windows and system upgrades without unnecessary risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating a Trusted TMR system is rarely a single-module exercise. In most retrofit and modernization projects, the T8314 fiber optic module replacement is one step in a broader system stabilization effort. Engineers upgrading from older Triplex T8000-series configurations typically also address the T8110 main processor module, which governs the TMR voting logic and must be confirmed compatible with the fiber communication layer introduced by the T8314. Alongside the processor, the T8431 and T8451 digital input/output modules are frequently replaced in the same maintenance window, as their firmware versions must align with the communication module revision to ensure deterministic scan-cycle behavior.

Power integrity is another common concern during Trusted TMR upgrades. The T8800 series power supply modules — including redundant PSU configurations — should be inspected and, where necessary, replaced to ensure stable backplane voltage during the transition. A failing or marginal power supply is one of the most common root causes of intermittent fiber link faults that are incorrectly attributed to the T8314 module itself.

For sites migrating from copper-based inter-controller communication to the fiber topology supported by the T8314, the transition often involves reconfiguring the T8920 communication gateway or updating the Modbus/TCP or PROFIBUS interface modules that bridge the Trusted TMR system to the plant DCS or SCADA layer. Ensuring that these gateway modules are running compatible firmware is essential before commissioning the new fiber optic link.

In control cabinet environments where space is constrained, the T8314’s standard single-slot form factor simplifies physical installation. However, technicians should verify that fiber cable routing within the cabinet meets minimum bend-radius specifications — a detail often overlooked during rushed maintenance windows that can cause signal degradation post-installation. Signal isolation requirements between the fiber optic segment and adjacent analog I/O modules (such as the T8461 analog input module) should also be reviewed during the pre-commissioning checklist.

Finally, for sites that maintain a hot-standby or online-spare inventory strategy, we recommend sourcing the T8314 alongside the T8310 or T8312 modules if your system architecture uses multiple fiber communication slots across the chassis. Maintaining matched revision levels across all fiber optic modules in the rack minimizes the risk of inter-module compatibility issues during live system operation.

Retrofit Guidance FAQ

Q: Can the T8314 be installed without shutting down the entire Trusted TMR system?
A: In a properly configured TMR architecture, individual module replacement can often be performed with the system in a degraded (duplex) operating mode, allowing the remaining two channels to maintain safety function. However, this procedure must be validated against your site-specific Safety Instrumented System (SIS) management of change (MOC) procedure. Always consult your functional safety engineer before performing hot-swap operations on a live safety system.

Q: Does the T8314 require re-configuration in Trusted Developer Studio after installation?
A: In most cases, the T8314 is automatically recognized by the Trusted TMR controller upon insertion, provided the firmware revision is compatible with the installed system software version. No explicit re-programming of the module is typically required, but a system diagnostic scan via Trusted Developer Studio is recommended post-installation to confirm module health status and fiber link integrity.

Q: What fiber cable type is compatible with the T8314?
A: The T8314 is designed for use with multimode fiber optic cable, typically 62.5/125 µm or 50/125 µm OM2/OM3 grade, depending on the inter-chassis distance. For intra-cabinet connections, standard multimode patch cables with ST or SC connectors (per your chassis configuration) are appropriate. Verify connector type against your specific chassis documentation before ordering fiber assemblies.

Q: How do I verify the T8314 is functioning correctly after installation?
A: After physical installation, use Trusted Developer Studio to run a module diagnostic. The fiber TX/RX link status should appear as “Active” in the system health display. Additionally, verify that the TMR voting logic is operating in full triple-redundant mode (not degraded duplex) before returning the system to normal operation. LED indicators on the module faceplate also provide real-time link status.

Q: Is the T8314 compatible with both the main chassis and expansion chassis?
A: Compatibility depends on your specific system architecture and chassis revision. The T8314 is primarily associated with inter-chassis fiber communication in Trusted TMR configurations. Confirm the target slot designation in your system’s hardware configuration documentation before installation.

Warranty Assurance

Every ICS Triplex T8314 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment process includes visual inspection, functional verification, and packaging in anti-static, shock-protected materials appropriate for sensitive industrial electronics.

If a unit exhibits any defect or failure within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund — whichever resolution best suits your operational timeline. We understand that unplanned downtime in safety-critical environments carries significant operational and financial consequences, and our after-sales response is structured accordingly.

For urgent requirements, we offer expedited shipping from our Xiamen warehouse to destinations worldwide, with typical lead times of 3–7 business days for international orders. DHL, FedEx, and UPS express options are available. Export documentation, including commercial invoices and packing lists compliant with customs requirements, is prepared for every international shipment.

Our procurement team is available to assist with technical cross-reference verification, quantity pricing for MRO stocking orders, and coordination with your engineering team on compatibility questions prior to purchase. We are committed to being a reliable long-term supply partner for your Trusted TMR system maintenance program.
