ICS Triplex TC-205-02-4M5 Ruggedized I/O Slot Cable TMR

Product Overview

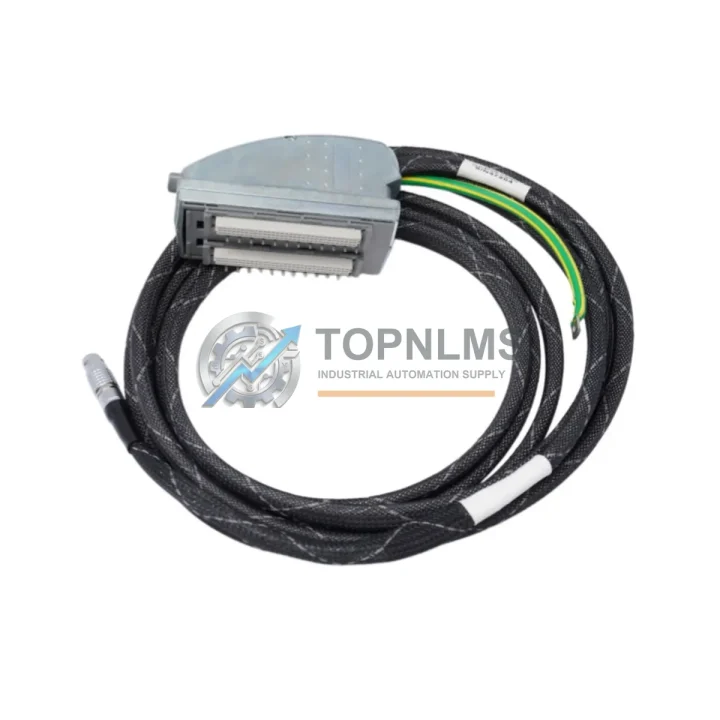

ICS Triplex TC-205-02-4M5 Ruggedized I/O Companion Slot Cable for TMR Redundant Chassis: Industrial Resilience in Harsh Environments

The ICS Triplex TC-205-02-4M5 is a precision-engineered I/O companion slot cable purpose-built for Triple Modular Redundancy (TMR) safety systems operating in the most demanding industrial environments. Designed to interconnect I/O modules within ICS Triplex TMR redundant chassis architectures, this cable delivers uncompromising signal integrity and mechanical durability where system failure is simply not an option. Whether deployed in offshore oil and gas platforms, petrochemical refineries, underground mining operations, or high-voltage power generation facilities, the TC-205-02-4M5 maintains stable, noise-free communication between safety-critical I/O nodes under continuous thermal cycling, mechanical vibration, and electromagnetic interference.

In TMR safety architectures, every interconnect is a potential point of failure. ICS Triplex addresses this with the TC-205-02-4M5’s ruggedized construction: shielded conductors resist EMI from adjacent variable frequency drives, motor starters, and high-current bus bars; robust locking connectors prevent accidental disconnection during chassis vibration; and the cable’s rated operating temperature range accommodates the thermal extremes found inside densely packed control cabinets in steel mills, cement plants, and water treatment facilities. The 4M5 length designation provides the flexibility needed for larger TMR chassis configurations without signal degradation over distance.

Within a complete ICS Triplex TMR safety system, the TC-205-02-4M5 works in concert with companion components including the TC-205-01 I/O companion slot cable for shorter chassis spans, the TC-201 series TMR processor modules, and the TC-202 series power supply modules that deliver conditioned, redundant power to the chassis backplane. On the I/O side, it interfaces with TC-203 series digital input modules and TC-204 series digital output modules, ensuring that field signals from pressure transmitters, emergency shutdown valves, and flame detectors are faithfully transmitted to the TMR voting logic without corruption. The cable is equally compatible with TC-206 series analog input modules used for continuous process variable monitoring in refinery and chemical plant applications.

Beyond the ICS Triplex ecosystem, the TC-205-02-4M5 is commonly deployed alongside complementary safety infrastructure. In typical SIL 2 and SIL 3 certified control cabinets, it coexists with Phoenix Contact QUINT series redundant power supplies, Pilz PNOZmulti safety relay modules for machine guarding, and Moxa EDS series industrial Ethernet switches providing PROFINET or Modbus TCP communication between the TMR safety controller and the plant DCS. In larger installations, the TMR chassis housing the TC-205-02-4M5 may communicate upstream to a Honeywell Experion PKS or Emerson DeltaV SIS distributed control system via dedicated safety network interfaces, with the I/O companion cable ensuring that the chassis-internal data paths remain fully redundant and fault-tolerant throughout.

For maintenance engineers managing aging TMR installations, the TC-205-02-4M5 represents a critical spare part. Cable degradation — caused by insulation fatigue, connector oxidation, or physical damage during routine maintenance — is a leading cause of spurious trips in TMR safety systems. Stocking a verified replacement cable eliminates extended downtime during emergency maintenance windows. TOPNLMS maintains ready inventory of the TC-205-02-4M5 with full traceability, enabling rapid dispatch to support planned turnarounds or unplanned outages at refineries, LNG terminals, and continuous process plants where every hour of downtime carries significant financial and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

A TMR safety system is only as reliable as its weakest interconnect. The TC-205-02-4M5 anchors the internal I/O data path within the ICS Triplex Trusted chassis, but robust plant safety demands a layered approach across every subsystem. In a typical safety instrumented system (SIS) cabinet, the TC-205-02-4M5 operates alongside the TC-201 TMR Processor Module, which executes the triple-redundant voting logic, and the TC-202 Redundant Power Supply Module, which ensures uninterrupted chassis power even during single-supply failures. Field-side protection is extended through TC-203 Digital Input Modules receiving signals from SIL-rated pressure switches and gas detectors, and TC-204 Digital Output Modules driving emergency shutdown valves and deluge system actuators.

For analog process monitoring — critical in refinery column temperature and pressure control — the TC-206 Analog Input Module connects to 4–20 mA HART transmitters, with the TC-205-02-4M5 ensuring that the chassis-internal signal path between I/O modules and the processor remains fully redundant. Communication integrity to the plant DCS is maintained through dedicated safety network interface modules, while cabinet-level surge protection devices and Phoenix Contact TRABTECH series surge arresters guard against lightning-induced transients on field cable entries. Together, these components form a defense-in-depth architecture that keeps the safety function available and reliable across the full plant lifecycle.

Application in Critical Infrastructure

The ICS Triplex TC-205-02-4M5 is deployed across the most demanding sectors of global critical infrastructure. In oil and gas upstream and midstream facilities — including wellhead control panels, pipeline compressor stations, and LNG liquefaction trains — TMR safety systems using this cable provide the SIL 3 integrity required by IEC 61511 for high-demand safety functions such as high-integrity pressure protection systems (HIPPS) and emergency shutdown (ESD). In petrochemical and refinery environments, the cable withstands the elevated ambient temperatures and chemical vapor exposure common in process areas, maintaining reliable I/O communication for burner management systems (BMS) and reactor protection systems.

In power generation — including coal, gas turbine, and nuclear auxiliary systems — the TC-205-02-4M5 supports turbine protection and boiler safety systems where spurious trips carry multi-million-dollar consequences and missed trips carry catastrophic risk. Mining operations, particularly underground coal and hard-rock mines, rely on TMR safety systems for conveyor protection, ventilation control, and gas detection, all of which demand cable interconnects that survive continuous vibration, dust ingress, and wide temperature swings. Water and wastewater treatment facilities use ICS Triplex TMR systems for chlorination dosing control and pump protection, where the TC-205-02-4M5 ensures that I/O data integrity is maintained in high-humidity, chemically aggressive environments. In metallurgical and steel plants, the cable operates reliably adjacent to high-power induction furnaces and rolling mill drives that generate intense electromagnetic fields, thanks to its full EMI shielding.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the TC-205-02-4M5?
All TC-205-02-4M5 cables supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection including visual examination, connector integrity verification, and continuity testing. Warranty claims are supported by our technical team with replacement dispatch or full refund options.

Q2: How is the TC-205-02-4M5 tested before shipment?
Every cable is subject to a standardized outgoing quality control (OQC) process: full continuity and insulation resistance testing, connector locking mechanism verification, and shield continuity check. For surplus-new or refurbished units, additional functional testing is performed using ICS Triplex-compatible test fixtures to confirm signal integrity across all conductors before dispatch.

Q3: Is the TC-205-02-4M5 compatible with all ICS Triplex TMR chassis generations?
The TC-205-02-4M5 is designed for ICS Triplex Trusted TMR redundant chassis systems. It is compatible with the standard I/O companion slot interface used across the Trusted product family. For specific chassis generation compatibility — including legacy T3000 and current Trusted SX series — our technical team can confirm fit based on your chassis model and firmware revision prior to order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of the TC-205-02-4M5?
Yes. TOPNLMS maintains a dedicated inventory program for ICS Triplex Trusted series spare parts, including the TC-205-02-4M5, to support planned maintenance turnarounds, emergency replacements, and multi-year spare parts agreements. We source from authorized distribution channels and verified surplus markets, with full documentation provided. Contact our team to discuss blanket order arrangements, lead time commitments, and volume pricing for ongoing supply requirements.
