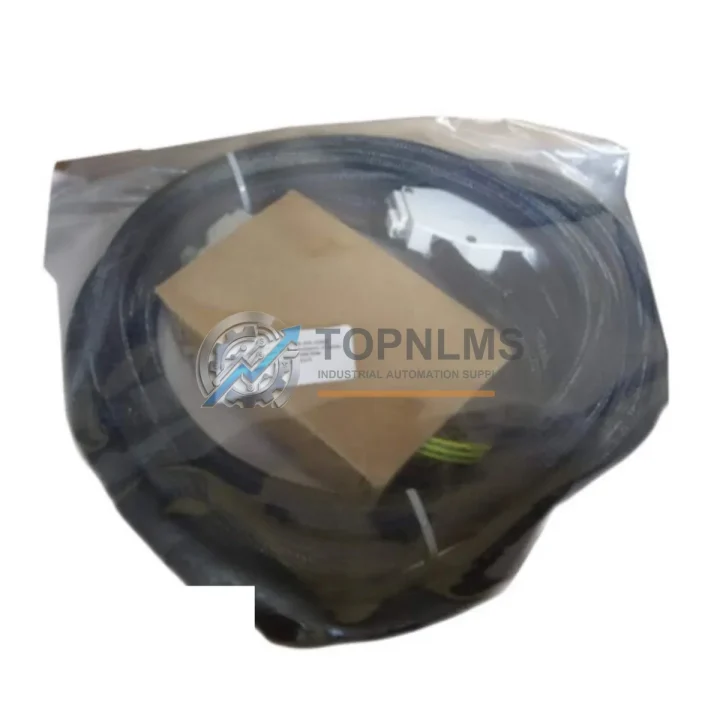

ICS TRIPLEX TC-306-02-2M5 Original Industrial Spare Triplex Compatible

Product Overview

ICS TRIPLEX TC-306-02-2M5 Original Industrial Spare — System Stability & Fault-Tolerant Maintenance Value

The ICS TRIPLEX TC-306-02-2M5 Smart Slot Jumper Cable (2.5M) is a critical interconnect component within the ICS TRIPLEX Fault-Tolerant Control Series — a platform widely deployed in process industries including oil & gas, petrochemical, power generation, and continuous manufacturing. This 2.5-metre jumper cable provides the physical communication backbone between smart slot modules within the Triplex chassis, enabling the redundant, triple-modular-redundant (TMR) architecture that defines the Triplex system’s safety and availability credentials.

In fault-tolerant control environments, cable integrity is not a peripheral concern — it is a system-critical variable. A degraded or failed TC-306-02-2M5 can disrupt inter-module communication, compromise voting logic between redundant channels, and ultimately trigger spurious shutdowns or, worse, mask genuine fault conditions. Maintaining a verified original spare on the shelf is the single most cost-effective insurance policy against unplanned downtime in a Triplex-based safety or control system.

TOPNLMS sources, inspects, and ships the TC-306-02-2M5 as an original ICS TRIPLEX component. Every unit undergoes pre-shipment continuity and connector integrity verification. Orders are fulfilled with full documentation and backed by a 12-month warranty against manufacturing defects.

Critical Technical Specs

Preventive Maintenance Strategy for Triplex Fault-Tolerant Systems

A scheduled maintenance window on a Triplex TMR system is the optimal moment to audit not just the TC-306-02-2M5 jumper cable, but the entire inter-module communication and power distribution infrastructure. Experienced maintenance engineers know that cable degradation rarely occurs in isolation — connector oxidation, chassis vibration, and thermal cycling affect multiple components simultaneously.

When inspecting or replacing the TC-306-02-2M5, it is best practice to simultaneously verify the condition of the TC-306-02-1M0 Smart Slot Jumper Cable (1.0M) and TC-306-02-5M0 (5.0M) variants used elsewhere in the same cabinet, as all three share the same connector family and are subject to identical wear mechanisms. The Triplex chassis backplane and smart slot module guides should be inspected for mechanical damage that could stress cable terminations.

Power integrity is equally critical in a TMR environment. The ICS TRIPLEX TC-501 Power Supply Module and its redundant counterpart should be load-tested during any planned outage — a marginal power supply will cause intermittent communication errors that are frequently misdiagnosed as cable faults. Similarly, the TC-502 Power Distribution Module should be checked for output voltage stability across all rails.

On the I/O side, Triplex I/O modules such as the TC-201 Analog Input Module and TC-202 Analog Output Module should be included in the inspection cycle. These modules interface directly with field instruments and are exposed to signal transients that can accelerate connector wear. The TC-401 Digital Input Module and TC-402 Digital Output Module serving discrete field devices warrant the same attention, particularly in environments with frequent motor starts or solenoid switching.

Communication infrastructure should not be overlooked. The TC-601 Communication Module — responsible for Modbus, HART, or proprietary Triplex network connectivity — relies on stable inter-chassis cabling to maintain data integrity with the supervisory DCS or SCADA layer. A degraded jumper cable upstream of this module can introduce latency or CRC errors that are difficult to trace without systematic cable inspection.

Finally, the Triplex controller processor module (TC-100 series) voting logic depends entirely on clean, low-latency communication between all three redundant channels. Any maintenance plan that addresses the TC-306-02-2M5 should include a functional test of the TMR voting output to confirm that all three channels are contributing correctly to the system output — a simple but definitive confirmation that the cable replacement has restored full system integrity.

Strategic Replacement Solutions

The TC-306-02-2M5 is a legacy-compatible component that allows facilities running first- and second-generation Triplex Fault-Tolerant Control systems to extend operational life without migrating to a new control platform. For plants where a full DCS migration is not economically justified in the current capital cycle, maintaining a stock of original ICS TRIPLEX spare cables is the most pragmatic path to continued system availability.

Unlike generic aftermarket cables, the original TC-306-02-2M5 uses the proprietary ICS TRIPLEX Smart Slot connector geometry and impedance-matched cable construction. Substituting non-original cables risks introducing signal reflections or connector mismatch that can degrade TMR voting performance — a risk that is entirely unacceptable in safety-instrumented or high-availability process control applications.

For maintenance planners managing multi-unit facilities or aging Triplex installations, TOPNLMS recommends holding a minimum of two TC-306-02-2M5 units per chassis as a strategic buffer. This quantity supports immediate replacement during an unplanned outage while a replenishment order is in transit, eliminating the risk of extended downtime caused by a single-point spare shortage. Combined with a documented inspection interval of 12–18 months for all inter-module cables, this approach aligns with IEC 61511 functional safety management best practices for safety-instrumented systems.

TOPNLMS maintains ready stock of the TC-306-02-2M5 and can fulfill urgent orders with same-day or next-business-day dispatch. All units are shipped with a certificate of conformance and are eligible for return within 30 days if the part does not match the application requirement.

Support FAQ

Q1: Is the TC-306-02-2M5 compatible with all generations of the ICS TRIPLEX Fault-Tolerant Control Series?
The TC-306-02-2M5 is designed for the ICS TRIPLEX Smart Slot chassis architecture. Compatibility should be verified against your specific chassis model and firmware revision. TOPNLMS technical support can assist with compatibility confirmation based on your system’s nameplate data — contact us at [email protected] before ordering if you have any uncertainty.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects including connector failure, cable continuity faults, and jacket integrity issues under normal industrial operating conditions. Warranty claims are initiated by contacting TOPNLMS with the order reference and a description of the fault. We arrange return shipping and provide a replacement or full refund upon inspection confirmation.

Q3: How is the TC-306-02-2M5 tested before shipment?
Every TC-306-02-2M5 unit undergoes a pre-shipment continuity test across all conductors and a visual inspection of both connector terminations. Units that fail either check are quarantined and not shipped. A test record is available upon request for quality-assurance documentation purposes.

Q4: What is the recommended spare inventory strategy for a facility with multiple Triplex chassis?
For facilities operating two or more Triplex chassis, we recommend holding a minimum of two TC-306-02-2M5 units per chassis in on-site inventory, reviewed and replenished annually. This buffer supports immediate corrective maintenance while a replenishment order is processed, and aligns with the 12–18 month inspection interval recommended for inter-module cabling in fault-tolerant control systems.
