ICS Triplex TC-205-02-10M5 Replacement for TC-200 Series: Seamless TMR Safety System Transition

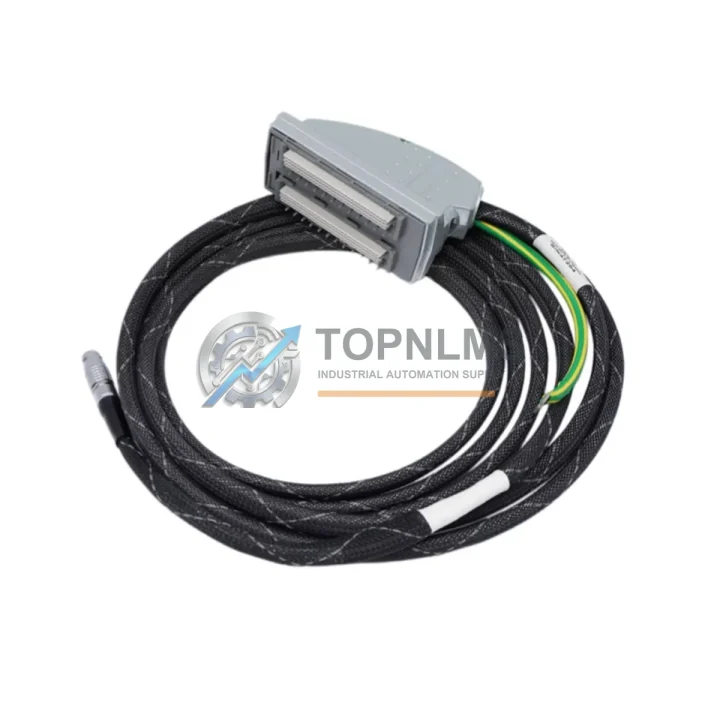

The ICS Triplex TC-205-02-10M5 is a chassis power cable purpose-built for the TC-200 Series Triple Modular Redundancy (TMR) safety controller platform. As aging safety systems approach end-of-life and original manufacturer support windows close, facilities running legacy TC-200 Series architectures face increasing pressure to source reliable replacement components before unplanned downtime forces emergency shutdowns. TOPNLMS maintains verified stock of the TC-205-02-10M5 to support exactly these migration and continuity scenarios — enabling your engineering team to execute a controlled, low-risk replacement without redesigning the broader safety system architecture.

The TC-205-02-10M5 chassis power cable connects the TC-200 Series controller chassis to its dedicated power supply module, delivering conditioned DC power across the backplane. In a TMR configuration, three independent processing channels — each drawing power through isolated pathways — must receive stable, correctly rated supply voltage to maintain voting logic integrity. A degraded or failed chassis power cable introduces asymmetric power delivery risk, which can trigger spurious trips or, more critically, mask a genuine fault condition. Replacing the TC-205-02-10M5 with a verified, specification-matched unit restores full TMR redundancy and ensures the safety instrumented function (SIF) remains within its required probability of failure on demand (PFD) envelope.

When planning a TC-205-02-10M5 replacement, engineers typically audit the surrounding TC-200 Series infrastructure simultaneously. The TC-200 chassis itself — including the TC-201 controller module and TC-202 I/O interface cards — should be inspected for connector wear and backplane integrity. The TC-203 power supply module, which mates directly with the TC-205-02-10M5 cable assembly, is a common co-replacement item: if the cable has degraded, the power supply connector pins may show corresponding wear. Similarly, the TC-204 communication interface module — responsible for Modbus RTU or proprietary ICS Triplex protocol links to the DCS host — should be verified for firmware compatibility if the chassis is being partially upgraded rather than fully replaced.

For sites migrating from older TC-100 Series or early TC-200 hardware to a refreshed TC-200 platform, the TC-205-02-10M5 cable pinout and connector housing are backward-compatible within the TC-200 chassis family, eliminating the need for custom wiring harness fabrication. Field engineers report that the physical installation — routing the cable from the power supply bay to the chassis backplane connector — can be completed within a standard maintenance window without removing adjacent I/O modules or disturbing field wiring terminations on the TC-206 terminal base assemblies. This is a significant advantage in live-plant environments where minimizing exposure time is a safety and operational priority.

Communication continuity is another key consideration during TC-200 Series maintenance. The TC-205-02-10M5 replacement does not affect the HART pass-through capability of connected TC-207 analog input modules or the discrete signal conditioning performed by TC-208 digital I/O modules. Once the replacement cable is seated and the chassis power supply is restored, the TMR voting logic resumes without requiring a cold restart of the safety application program — provided the TC-201 controller module retains its configuration in non-volatile memory, which is standard behavior for the TC-200 platform.

For facilities operating in SIL 2 or SIL 3 classified loops, maintaining a documented spare parts inventory that includes the TC-205-02-10M5 is a functional safety management requirement under IEC 61511. TOPNLMS can supply single units for immediate replacement or multi-unit quantities for site spare stock programs, with each unit shipped with a test report confirming dimensional and electrical conformance to the original ICS Triplex specification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A TC-205-02-10M5 replacement is rarely performed in isolation. During the same maintenance window, engineering teams commonly address adjacent components to maximize system reliability before returning the safety loop to service. The TC-203 power supply module is the most frequent co-replacement, as connector fatigue at the cable interface is a shared wear mechanism. The TC-201 TMR controller module should be inspected for firmware currency — ICS Triplex released several stability patches for the TC-200 platform that affect watchdog timer behavior and channel voting thresholds. If the site is also upgrading its operator interface, the TC-200 Series is compatible with modern HMI panels communicating via Modbus TCP through an appropriate protocol gateway, avoiding the need to replace the entire safety controller. For I/O expansion or signal conditioning, TC-207 analog input modules and TC-208 digital I/O modules can be added to the existing chassis without disrupting the TC-205-02-10M5 power cable routing. Sites that have already migrated their DCS host to a newer platform but retained the TC-200 safety layer will find that the TC-204 communication interface module supports the bridging required to maintain alarm and trip signal integrity across the mixed-generation architecture. Terminal base assemblies such as the TC-206 provide field wiring continuity during module swaps, eliminating the need to re-terminate instrument cables — a significant time saving in dense control cabinet installations.

Retrofit Guidance FAQ

Q: Does replacing the TC-205-02-10M5 require a safety system bypass?
A: In most TC-200 TMR installations, the chassis power cable can be replaced under a controlled bypass of the affected channel while the remaining two TMR channels maintain the safety function. Consult your site safety management plan and IEC 61511 bypass procedures before proceeding.

Q: Will the replacement cable affect my Modbus or proprietary ICS Triplex communication links?
A: No. The TC-205-02-10M5 is a DC power cable with no data signal conductors. Communication links through the TC-204 interface module are unaffected by this replacement.

Q: Is the TOPNLMS replacement unit dimensionally identical to the original?
A: Yes. The replacement unit is manufactured to the original ICS Triplex dimensional and electrical specification, ensuring correct seating in the TC-200 chassis power bay without modification.

Q: Can this cable be used in a TC-100 Series chassis?
A: The TC-205-02-10M5 is specified for the TC-200 Series chassis family. Compatibility with TC-100 Series hardware should be verified against your site-specific chassis documentation before installation.

Q: What is the lead time for multi-unit orders?
A: Single units ship within 1–3 business days from our Xiamen warehouse. Multi-unit spare stock orders are quoted individually — contact [email protected] for volume pricing and lead time confirmation.

Warranty Assurance

Every TC-205-02-10M5 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes dimensional inspection and electrical continuity verification to confirm conformance with the original ICS Triplex specification. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost, with priority processing to minimize your site’s exposure time. Our after-sales team responds to warranty claims within one business day. For safety-critical applications, we recommend retaining the test report supplied with each unit as part of your functional safety management documentation under IEC 61511 or equivalent site standards.
