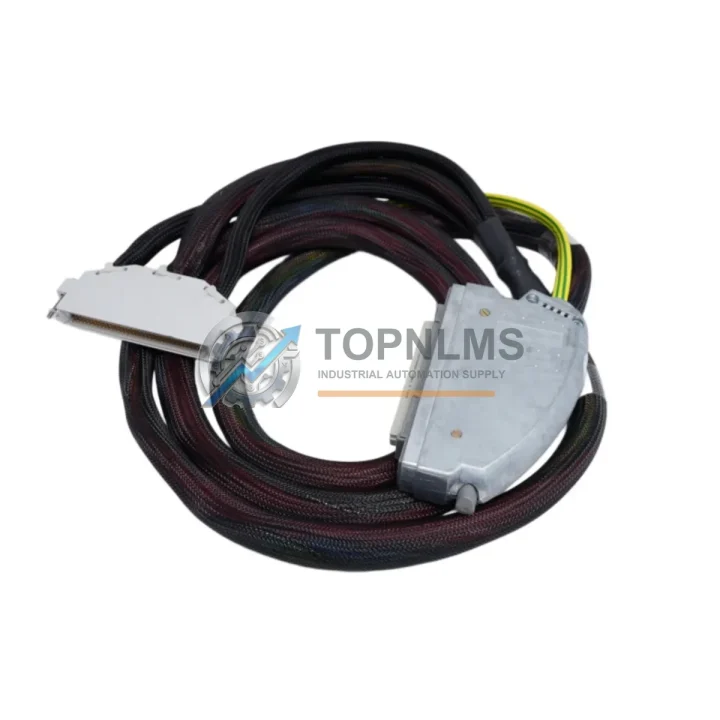

ICS Triplex TC-201-02-8M5 Triconex TMR Replacement Cable

Product Overview

ICS Triplex TC-201-02-8M5 Triconex TMR Replacement Cable: Seamless Transition from Legacy Chassis Power Infrastructure

The ICS Triplex TC-201-02-8M5 is a chassis fan power cable purpose-built for the Triconex Triple Modular Redundant (TMR) safety system platform. As aging Triconex TMR installations approach end-of-life or face discontinued OEM support, facilities engineers and reliability teams are increasingly sourcing verified replacement cables to maintain chassis thermal management integrity without triggering a full system overhaul. This cable directly supports the fan assemblies housed within the Triconex TMR chassis, ensuring continuous airflow to safety-critical processor and I/O modules during extended production runs.

For plants operating legacy Triconex TMR controllers — including installations built around the Tricon v9 or v10 main chassis — the TC-201-02-8M5 represents a drop-in mechanical and electrical replacement. The cable’s connector pinout, gauge, and shielding specification are matched to the original Triconex chassis fan interface, eliminating the need for field rewiring or custom harness fabrication. Maintenance teams can complete the swap during a scheduled shutdown window with no modification to the existing chassis backplane, power distribution module, or fan tray assembly.

In practice, the TC-201-02-8M5 is most commonly sourced as part of a broader chassis refresh that may also involve replacing the Triconex 3000 series main processor module, the 3700A enhanced processor, or the 3008 communication module. When a chassis fan fails or its power cable degrades — a common failure mode in high-ambient-temperature environments such as offshore platforms, petrochemical control rooms, and power generation facilities — the resulting thermal alarm can force a controlled shutdown of the entire TMR node. Sourcing the TC-201-02-8M5 as a stocked spare eliminates this single-point vulnerability.

Migration and upgrade projects that involve transitioning from older Triconex TMR hardware to current-generation Tricon CX or Tricon v11 architectures often require a parallel-run period during which the legacy chassis must remain fully operational. During this phase, maintaining the original chassis fan power infrastructure — including cables such as the TC-201-02-8M5 — is essential to sustaining the redundant voting logic and preventing spurious trips. The cable is also relevant when refurbishing spare chassis units held in warehouse storage, where connector oxidation or insulation degradation may have occurred over extended periods.

Beyond the cable itself, a complete chassis fan subsystem restoration may involve the Triconex 8310 power supply module, which feeds the fan tray rail, as well as the chassis backplane connector interface. In multi-chassis TMR configurations — where a primary chassis is paired with expansion chassis via the Triconex TCM (Tri-redundant Communication Module) — each chassis unit requires its own fan power cable, making the TC-201-02-8M5 a recurring line item in site-wide spare parts inventories. Facilities that standardize on Triconex TMR across multiple process units typically maintain a minimum of two to four TC-201-02-8M5 cables per site to support rapid field replacement without waiting on lead times.

For control system integrators managing DCS-to-SIS migration projects — for example, transitioning a legacy Honeywell TDC 3000 or Foxboro I/A Series distributed control system to a modern safety instrumented system built on Triconex TMR — the TC-201-02-8M5 is a necessary component when the target SIS chassis is sourced from existing plant inventory rather than purchased new. Refurbished Triconex chassis units frequently require cable inspection and replacement before being placed back into service, and the TC-201-02-8M5 is the correct part for this application.

Installation is straightforward: the cable routes from the chassis fan tray connector to the internal power distribution point within the Triconex main chassis enclosure. No programming changes are required in the Triconex TriStation 1131 development environment, and no I/O module reconfiguration is necessary. The replacement does not affect the HART or Modbus RTU communication paths managed by the 3008 or 4329 communication modules, nor does it interact with the chassis’s Ethernet-based diagnostic interface used by the Triconex System Access Application (SAA).

All TC-201-02-8M5 units shipped from TOPNLMS undergo pre-shipment continuity and insulation resistance testing. Each cable is individually packaged with a test record and part identification label. Standard lead time from our Xiamen warehouse is 3–7 business days for international express shipments, with same-day dispatch available for in-stock orders confirmed before 14:00 CST.

Compatibility Comparison Table

Seamless Upgrade Solutions

A Triconex TMR chassis fan cable replacement rarely occurs in isolation. During the same maintenance window, engineers typically audit adjacent components to prevent repeat interventions. The Triconex 8310 power supply module, which provides the regulated DC rail feeding the fan tray, should be inspected for capacitor aging and output voltage drift — a degraded 8310 can cause intermittent fan power interruptions that mimic cable faults. Similarly, the Triconex 3000 series main processor module and the 3700A enhanced processor should be checked for firmware currency and memory battery status, as these are often addressed during the same chassis-open event.

For sites running multi-chassis TMR configurations, the Triconex TCM (Tri-redundant Communication Module) and the chassis backplane interconnect cables are logical co-replacement candidates. If the control cabinet also houses a Triconex 4329 communication module for HART field device integration, its wiring harness and terminal block connections should be verified during the same outage. In retrofit projects where the legacy chassis is being refurbished for standby duty, the Triconex 3008 Ethernet communication module and its associated RJ-45 patch cables are frequently replaced alongside the fan power cable to bring the entire chassis to a known-good baseline.

For facilities transitioning from older I/O architectures — such as legacy Triconex 3501 or 3601 analog input modules — to current-generation smart I/O with HART pass-through, the chassis fan power infrastructure must be confirmed operational before the new I/O modules are commissioned. A failed or intermittent fan cable can cause thermal-induced processor resets that corrupt the I/O module configuration database, requiring a full TriStation 1131 download to restore. Sourcing the TC-201-02-8M5 as a verified spare before beginning an I/O migration project is therefore a standard risk-mitigation step recommended by Triconex system integrators.

Retrofit Guidance FAQ

Q: Does replacing the TC-201-02-8M5 require a system shutdown?
A: Yes. The chassis fan power cable is an internal chassis component. Replacement requires the affected TMR chassis to be powered down. In a multi-chassis TMR configuration, the remaining chassis nodes continue to execute the safety logic during the replacement window, provided the system is in a valid 2-of-3 voting state.

Q: Will this replacement affect my TriStation 1131 program or I/O configuration?
A: No. The TC-201-02-8M5 is a passive power cable with no interaction with the processor, memory, or communication subsystems. No program download or I/O reconfiguration is required after installation.

Q: Is the connector pinout identical to the original OEM cable?
A: Yes. The TC-201-02-8M5 replacement uses an OEM-matched connector and pinout. No field rewiring, adapter, or harness modification is required.

Q: Can this cable be used in Tricon v11 or Tricon CX chassis?
A: The TC-201-02-8M5 is confirmed compatible with Tricon v9 and v10 chassis. Compatibility with Tricon v11 and Tricon CX should be verified against the chassis fan tray part number before ordering. Contact our technical team at [email protected] for confirmation.

Q: What communication protocols are unaffected by this replacement?
A: All communication paths — including Modbus RTU via the 3008 module, HART pass-through via the 4329 module, and Ethernet diagnostics via the SAA interface — are unaffected. The fan power cable has no interaction with any communication subsystem.

Q: How do I verify the cable is the correct part for my chassis?
A: Cross-reference the chassis fan tray part number and the cable connector type against the Triconex TMR hardware manual for your chassis revision. Alternatively, provide your chassis serial number and revision to [email protected] and our team will confirm compatibility before shipment.

Q: What is the physical installation space requirement?
A: The TC-201-02-8M5 is dimensioned to fit within the standard Triconex TMR chassis cable routing channel. No chassis modification or additional cable management hardware is required.

Warranty Assurance

Every TC-201-02-8M5 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty covers manufacturing defects, connector failure, and insulation breakdown under normal operating conditions. Each unit undergoes pre-shipment continuity testing and insulation resistance measurement, with results documented on a per-unit test record included in the shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within 5 business days of receiving the returned item and confirming the defect. Our after-sales response time for warranty inquiries is within 24 hours on business days. We maintain buffer stock of the TC-201-02-8M5 specifically to support rapid warranty replacements without impacting standard order fulfillment.

For procurement teams requiring documentation, we can provide a Certificate of Conformance, pre-shipment test report, and commercial invoice with HS code declaration upon request. All shipments are dispatched from our Xiamen warehouse via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking provided at time of dispatch.
