ICS TRIPLEX TC-011-02-1M5 Ruggedized Fan Power Cable TMR

Product Overview

ICS TRIPLEX TC-011-02-1M5 Ruggedized Fan Power Cable TMR: Industrial Resilience for Harsh Environments

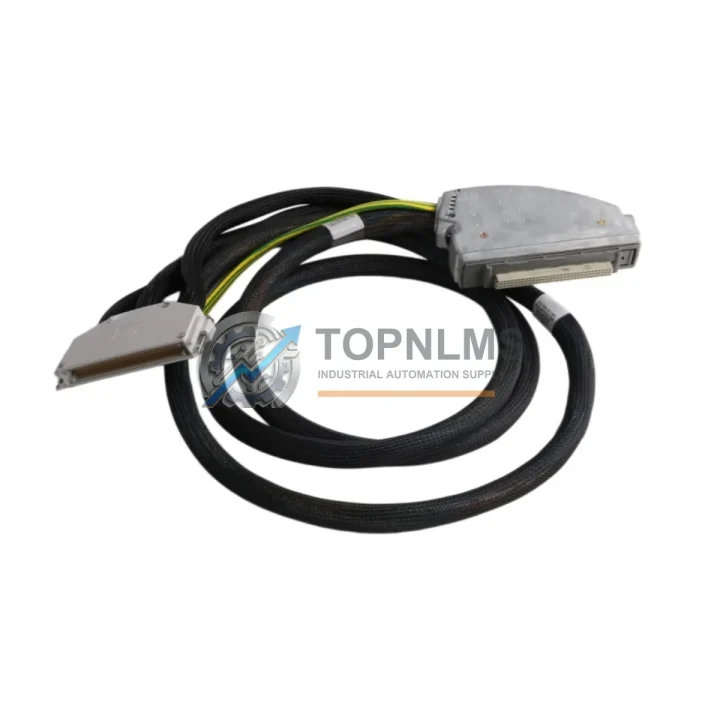

The ICS TRIPLEX TC-011-02-1M5 is a 1.5-metre chassis fan power cable engineered specifically for Triple Modular Redundancy (TMR) safety systems operating in the most demanding industrial environments. As a critical internal interconnect within ICS TRIPLEX TMR chassis assemblies, this cable ensures continuous, uninterrupted power delivery to chassis cooling fans — a function that is non-negotiable in high-availability safety instrumented systems (SIS) deployed across oil and gas, petrochemical, power generation, and heavy manufacturing facilities.

In environments characterised by elevated ambient temperatures, persistent vibration, electromagnetic interference (EMI), and corrosive atmospheres, the integrity of every internal cable assembly directly determines system uptime. The TC-011-02-1M5 is rated for continuous operation within the thermal and mechanical tolerances of ICS TRIPLEX TMR chassis platforms, providing the reliable power path that keeps cooling fans running and processor modules within safe operating temperature ranges. Without effective chassis cooling, TMR controller modules, I/O modules, and communication modules are exposed to thermal stress that accelerates component degradation and increases the risk of unplanned shutdowns.

Rugged Specifications Table

Comprehensive Protection Solutions: Maintaining TMR System Integrity

The TC-011-02-1M5 does not operate in isolation. It is one component within a tightly integrated TMR safety architecture where every element — from power distribution to signal processing — must perform reliably under continuous industrial stress. When planning a chassis maintenance or spare parts procurement exercise, maintenance engineers and reliability teams should consider the full scope of components that interact with or depend on effective chassis cooling.

The ICS TRIPLEX T8110 TMR controller module, for example, generates significant heat during continuous operation and relies entirely on chassis fan airflow to maintain junction temperatures within specification. Similarly, ICS TRIPLEX T8120 and T8121 I/O modules — handling discrete and analogue signals from field instruments in hazardous areas — are sensitive to thermal excursions that can cause signal drift or module faults. Ensuring the TC-011-02-1M5 fan power cable is in serviceable condition is therefore a prerequisite for protecting these high-value modules.

Within the same chassis, the ICS TRIPLEX T8100 power supply module provides regulated DC power to all installed modules. A failed cooling fan — caused by a degraded or open-circuit fan power cable — can trigger thermal protection circuits within the T8100, leading to a controlled but unplanned system shutdown. Stocking the TC-011-02-1M5 alongside spare T8100 power supply modules and chassis fan assemblies is a recognised best practice in TMR system lifecycle management.

Communication integrity is equally critical. ICS TRIPLEX T8151 and T8153 communication modules — supporting PROFIBUS, Modbus, or proprietary ICS TRIPLEX protocols — must maintain stable operating temperatures to ensure deterministic data exchange with DCS hosts, SCADA systems, and engineering workstations. In facilities where the TMR system interfaces with a Triconex Safety Manager or a Honeywell Safety Manager via hardwired or serial links, any thermal-induced communication fault can trigger a spurious trip with significant production impact.

For sites running mixed safety architectures, the TC-011-02-1M5 is often procured alongside ICS TRIPLEX termination assemblies, marshalling panel terminal blocks, and field junction box components as part of a comprehensive annual maintenance kit. This approach reduces the number of procurement events, consolidates shipping costs, and ensures that all wear-prone internal components are refreshed on a consistent schedule — a strategy strongly recommended for facilities with 5+ year system lifecycles.

Application in Critical Infrastructure

ICS TRIPLEX TMR systems — and by extension, components such as the TC-011-02-1M5 — are deployed across the most demanding sectors of global critical infrastructure.

Oil & Gas: Offshore platforms and onshore processing facilities rely on TMR safety systems for Emergency Shutdown (ESD) and High Integrity Pressure Protection Systems (HIPPS). In these environments, chassis fan failure is not a minor inconvenience — it is a potential pathway to a safety system impairment event. The TC-011-02-1M5 is a low-cost, high-impact spare that directly supports SIL 2 and SIL 3 system availability.

Power Generation: Gas turbine control and boiler management systems in power plants operate continuously, often for 8,000+ hours per year. Thermal management of the TMR chassis is essential to maintaining the mean time between failures (MTBF) of installed modules. Facilities that maintain a stock of TC-011-02-1M5 cables report faster corrective maintenance resolution times and reduced exposure to extended outage windows.

Mining & Minerals Processing: High-dust, high-vibration environments in underground and open-cut mining operations place exceptional mechanical stress on cable assemblies. The keyed, locking connectors of the TC-011-02-1M5 resist vibration-induced disconnection, maintaining fan power continuity even in mobile or semi-permanent installation scenarios.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating TMR-based control systems in high-humidity pump houses and chemical dosing areas benefit from the robust construction of OEM-specified cable assemblies. Using non-OEM substitutes in these environments introduces compatibility and reliability risks that are avoided by stocking genuine TC-011-02-1M5 units.

Metallurgy & Steel: Continuous casting lines, electric arc furnaces, and rolling mill control systems generate intense EMI and thermal loads. TMR chassis installed in these environments require all internal components — including fan power cables — to meet OEM specifications to maintain SIS certification validity.

Security & Quality FAQ

Q1: What warranty is provided with the TC-011-02-1M5?
All TC-011-02-1M5 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment continuity testing, insulation resistance verification, and connector integrity inspection before dispatch.

Q2: How do I verify compatibility with my ICS TRIPLEX TMR chassis?
The TC-011-02-1M5 is the OEM-specified fan power cable for ICS TRIPLEX TMR chassis platforms. Compatibility can be confirmed by cross-referencing the part number against your chassis bill of materials (BOM) or ICS TRIPLEX system documentation. Our technical team can assist with cross-referencing if you provide your chassis model and system revision.

Q3: What is the typical lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days from Xiamen, China. We support DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders. Export documentation, including commercial invoices and packing lists, is provided for all international shipments.

Q4: Can TOPNLMS support long-term supply for obsolete ICS TRIPLEX components?
Yes. TOPNLMS specialises in lifecycle support for legacy and end-of-life industrial automation components. We maintain strategic stock of ICS TRIPLEX TMR spare parts and can establish blanket purchase agreements for facilities requiring guaranteed supply over multi-year maintenance cycles. Contact our team to discuss your long-term procurement requirements.
