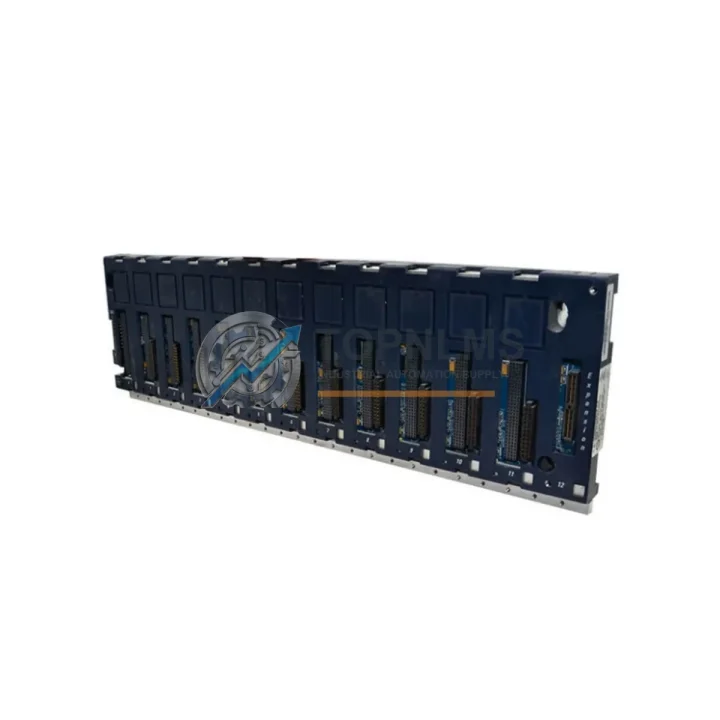

GE IC695CHS012-CA Ruggedized PLC Backplane for Harsh Environments

Product Overview

GE IC695CHS012-CA Ruggedized PLC Backplane for Harsh Environments

The GE IC695CHS012-CA is a 12-slot universal backplane engineered for the GE PACSystems RX3i control platform, purpose-built to sustain uninterrupted operation in the most demanding industrial environments. Factory-applied conformal coating on all circuit board surfaces — compliant with IPC-CC-830 — provides a critical barrier against moisture, condensation, corrosive gases, airborne dust, and chemical vapors. This makes the IC695CHS012-CA the preferred chassis solution for continuous-duty control systems in oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing where environmental exposure is not an exception but a constant operating condition.

Unlike standard uncoated backplanes, the IC695CHS012-CA is designed from the ground up for installations where reliability cannot be compromised. The conformal coating prevents humidity-induced corrosion and electrical leakage across the backplane bus, while the robust mechanical construction resists vibration and mechanical shock consistent with IEC 60068-2-6 and IEC 60068-2-27 standards — conditions routinely encountered in compressor stations, conveyor drive systems, and rotating machinery environments. The 12 universal slots accommodate the full range of PACSystems RX3i CPU, I/O, communications, and specialty modules, providing a stable, high-bandwidth backplane bus for mission-critical control architectures that must sustain 24/7 operation without scheduled maintenance windows.

In high-stakes industrial facilities, the backplane is the structural and electrical backbone of the entire control system. A failed or degraded chassis can cascade into unplanned downtime across an entire production line, triggering safety shutdowns, lost throughput, and costly emergency maintenance. The IC695CHS012-CA eliminates this risk by combining GE’s proven RX3i backplane architecture with enhanced environmental protection — ensuring that CPUs such as the IC695CPE330 or IC695CPE302, analog I/O modules like the IC695ALG608, and discrete I/O modules including the IC694MDL754 continue to communicate reliably even under sustained thermal cycling, vibration, and chemical exposure.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC695CHS012-CA is rarely deployed in isolation — it forms the structural and electrical core of a complete PACSystems RX3i control cabinet. In a typical ruggedized control architecture, the backplane hosts a redundant CPU pair such as the IC695CPE330 alongside the IC695RMX128 redundancy memory xchange module, ensuring seamless failover without process interruption when a primary CPU fault is detected. Power integrity across the entire cabinet is maintained by the IC695PSA040 40W AC power supply module, which delivers stable, filtered DC rails to all installed modules even under fluctuating grid conditions common in remote industrial sites and offshore platforms.

For process I/O, the backplane accommodates high-density analog input modules like the IC695ALG608 (8-channel analog input) and analog output modules such as the IC695ALG704, enabling precise measurement and closed-loop control of temperature, pressure, flow, and level signals from field instruments. Discrete control is handled by modules including the IC694MDL754 (32-point DC output) and IC694MDL655 (32-point DC input), which interface directly with field devices such as solenoid valves, motor starters, and proximity sensors across the production floor.

Communications in harsh-environment installations are equally critical to system integrity. The IC695ETM001 Ethernet module provides high-speed PROFINET and Modbus TCP connectivity for SCADA integration and remote diagnostics, while the IC695PBM300 PROFIBUS master module enables seamless integration with legacy field devices and distributed I/O racks. For safety-rated applications, the backplane can host the IC695STK001 safety toolkit module, supporting SIL 2 functional safety architectures in compliance with IEC 61508. Together, these components form a cohesive, ruggedized control system capable of sustaining continuous operation in the harshest industrial conditions without compromise to safety or availability.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the IC695CHS012-CA is deployed in wellhead control panels, pipeline SCADA RTUs, and compressor station automation cabinets where ambient temperatures fluctuate widely and hydrogen sulfide (H₂S) exposure accelerates corrosion on unprotected electronics. The conformal coating directly addresses this threat, extending the operational lifespan of the backplane and all hosted modules across multi-year production campaigns without requiring chassis replacement.

In mining operations, the backplane is installed in conveyor drive control panels, crusher automation systems, and ventilation control cabinets where coal dust, silica particulate, and mechanical vibration are constant hazards. The IEC 60068-2-6 vibration rating ensures that backplane bus connections remain stable and low-resistance even when mounted near heavy rotating equipment generating continuous mechanical shock loads.

In power generation and transmission substations, the IC695CHS012-CA supports protection relay coordination, transformer monitoring, and switchgear automation. Its EMC compliance with IEC 61000 standards ensures immunity to the high electromagnetic interference levels generated by high-voltage switching events, capacitor bank switching, and nearby variable frequency drives controlling large motor loads.

In water and wastewater treatment plants, the backplane controls pump stations, chemical dosing systems, and filtration processes in environments with persistent high humidity and chemical vapors from chlorination and pH adjustment processes. The conformal coating prevents moisture ingress that would otherwise cause intermittent communication faults or catastrophic board failure during peak demand periods.

In metallurgical and steel production facilities, the backplane is integrated into rolling mill control systems, furnace automation panels, and ladle handling equipment where radiant heat, metal dust, and electromagnetic noise from arc furnaces create extreme operating conditions. The IC695CHS012-CA’s ruggedized design ensures continuous, fault-free operation throughout extended production campaigns measured in weeks rather than hours.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All IC695CHS012-CA units shipped by TOPNLMS are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and backplane bus integrity. In the event of a warranty claim, we provide rapid replacement or repair to minimize your downtime and keep your production line running.

Q2: How is each unit tested before shipment?
Every IC695CHS012-CA undergoes a multi-stage inspection and functional verification process prior to dispatch. This includes visual inspection for physical damage, conformal coating integrity check, backplane bus continuity testing, and slot connector verification. Units are powered up and tested for correct module recognition using a reference PACSystems RX3i CPU and I/O configuration. Only units that pass all test criteria are released for shipment — no exceptions.

Q3: Is the IC695CHS012-CA compatible with all PACSystems RX3i modules?
Yes. The IC695CHS012-CA is a universal backplane that supports the full range of GE PACSystems RX3i modules, including CPU modules (IC695CPE330, IC695CPE302, IC695CPE305), analog and discrete I/O modules, communications modules (IC695ETM001, IC695PBM300), power supply modules (IC695PSA040, IC695PSD040), and specialty modules including redundancy and safety options. It is also backward compatible with IC694 series modules via the universal slot architecture, protecting your existing I/O investment.

Q4: Can TOPNLMS support long-term supply and replacement needs?
Yes. TOPNLMS maintains ongoing inventory of the IC695CHS012-CA and related PACSystems RX3i components to support both immediate emergency replacement requirements and planned preventive maintenance programs. We understand that industrial facilities require guaranteed spare parts availability over multi-year operational horizons. Our procurement team can assist with blanket orders, scheduled deliveries, and sourcing of discontinued or long-lead-time GE Automation components. Contact us at [email protected] or call +86 18359293191 to discuss your supply requirements.
