GE IS200BPVCG1BR1 Ruggedized Backplane Board for Harsh Environments

Product Overview

GE IS200BPVCG1BR1 Ruggedized Backplane Board: Industrial Resilience for Harsh Environments

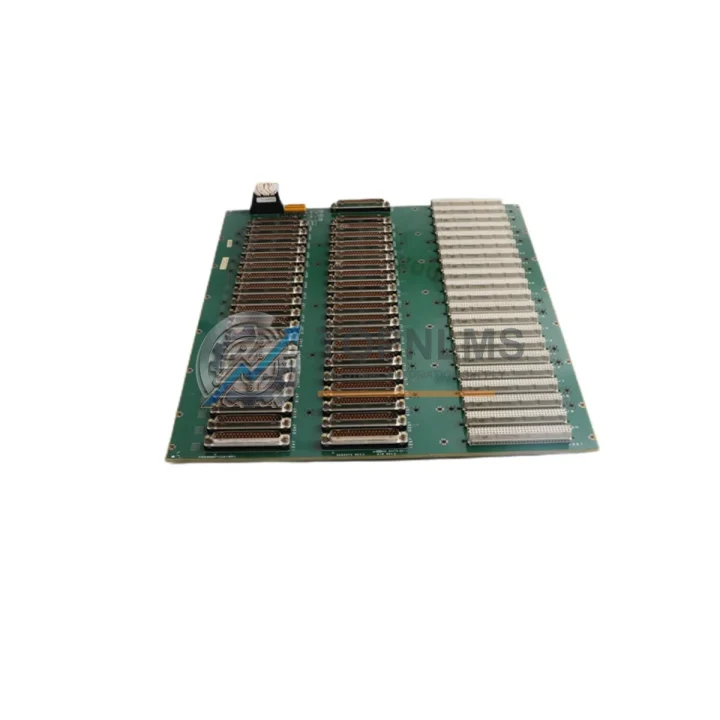

The GE IS200BPVCG1BR1 is a high-integrity backplane assembly board engineered for the GE Mark VI Triple Modular Redundancy (TMR) Control System — one of the most demanding turbine and process control platforms deployed across global critical infrastructure. Designed to operate continuously in environments characterized by extreme temperature cycling, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this board forms the structural and electrical backbone of the Mark VI TMR rack architecture.

In industrial facilities where unplanned downtime translates directly into production loss, safety risk, and regulatory exposure, the IS200BPVCG1BR1 delivers the passive reliability that active control components depend upon. Its multi-layer PCB construction, gold-plated edge connectors, and conformal coating make it resistant to corrosion, condensation, and conductive contamination — conditions routinely encountered in offshore platforms, petrochemical plants, and heavy manufacturing environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The IS200BPVCG1BR1 backplane does not operate in isolation — it is the integration layer that connects every functional module within the Mark VI TMR rack. In a fully configured turbine control cabinet, this board interfaces directly with the IS200TBAIH1C terminal board for field I/O termination, the IS200VCRCH1BBB VME controller card for redundant processing, and the IS200EPCTG1A power conditioner module that stabilizes DC bus voltage across all rack slots.

In high-vibration environments such as gas compression stations or rotating machinery halls, the backplane’s mechanical rigidity prevents micro-fractures in solder joints that would otherwise cause intermittent faults in the IS200DSPXH1D digital signal processor board or the IS200TRLYH1BCC relay output module. When the control system is deployed in hazardous classified areas — Zone 1 or Zone 2 gas atmospheres — the backplane’s passive architecture supports the intrinsic safety barriers and galvanic isolators installed upstream of the IS200IOCIH1B I/O controller interface board.

For facilities running continuous production lines in steel mills, cement plants, or LNG terminals, the TMR architecture enabled by this backplane allows the IS200STCIH2A servo terminal board and associated actuator drive modules to maintain triple-redundant voting logic — ensuring that a single-point failure in any one channel does not interrupt the control output. Paired with the IS200EXHSG2A exciter heat sink assembly and the IS200VSVOH1B vibration monitoring module, the complete Mark VI rack delivers a closed-loop protection system that monitors, controls, and safeguards simultaneously.

Communication integrity is equally critical. The backplane supports the IS200UCVEH2A UCVx Ethernet communication module, enabling the Mark VI system to exchange real-time data with DCS historians, SCADA platforms, and plant asset management systems over standard industrial Ethernet — without signal degradation even in cable trays shared with high-voltage power conductors.

Application in Critical Infrastructure

The GE IS200BPVCG1BR1 is a proven component in some of the world’s most demanding industrial environments. In oil and gas upstream and midstream operations, Mark VI TMR systems equipped with this backplane govern gas turbine-driven compressors on offshore platforms where salt-laden air, wave-induced vibration, and limited maintenance access demand zero-compromise hardware reliability. The backplane’s conformal coating provides a critical barrier against chloride-induced corrosion that would otherwise degrade unprotected PCB traces within months of offshore deployment.

In thermal and combined-cycle power generation, the IS200BPVCG1BR1 supports the turbine protection and governor control functions that must respond within milliseconds to overspeed, over-temperature, or loss-of-flame events. A failed or degraded backplane in this context can prevent protective trip signals from reaching the emergency stop valves — making the integrity of this component a direct safety-of-life concern.

In mining and mineral processing facilities, where crusher drives, conveyor systems, and slurry pumps generate continuous mechanical shock and electrical noise, the Mark VI rack’s backplane must maintain signal continuity across all module interconnects without introducing ground loops or common-mode noise that would corrupt analog sensor readings from thermocouples, pressure transmitters, or vibration probes.

Water and wastewater treatment plants operating in high-humidity pump stations and chemical dosing areas rely on the corrosion-resistant construction of the IS200BPVCG1BR1 to maintain control system availability across multi-year maintenance intervals. Similarly, in metallurgical and steel production environments, where radiated heat from furnaces and induction heaters creates sustained thermal stress, the board’s rated operating temperature range ensures stable performance without thermal derating.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IS200BPVCG1BR1?
The 12-month warranty covers all functional failures attributable to component defects or workmanship under normal operating conditions consistent with GE Mark VI system specifications. If the board fails to perform its backplane interconnect and signal routing functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is the IS200BPVCG1BR1 tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for PCB damage, connector integrity verification, continuity testing across all backplane signal paths, and functional bench testing in a Mark VI-compatible rack environment where applicable. Units that do not pass all inspection stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is this board compatible with all Mark VI TMR rack configurations?
The IS200BPVCG1BR1 is designed for the GE Mark VI TMR rack architecture within the IS200 series. Compatibility depends on the specific rack revision and firmware version of the Mark VI controller. TOPNLMS recommends providing your existing rack serial number or system configuration drawing for pre-sale compatibility verification. Our technical team will confirm fit before shipment at no additional charge.

Q4: Can TOPNLMS support long-term or repeat supply of this component?
Yes. TOPNLMS maintains a managed inventory of GE Mark VI IS200 series components to support both emergency replacement and planned maintenance programs. For facilities with multiple Mark VI systems or scheduled outage windows, we offer reserved stock agreements and priority fulfillment to ensure critical spare parts are available when needed. Contact our team to discuss volume pricing and long-term supply arrangements.
