HYUNDAI DOM16 Original Industrial Spare HD1000 Compatible

Product Overview

HYUNDAI DOM16 Original Industrial Spare HD1000 Compatible

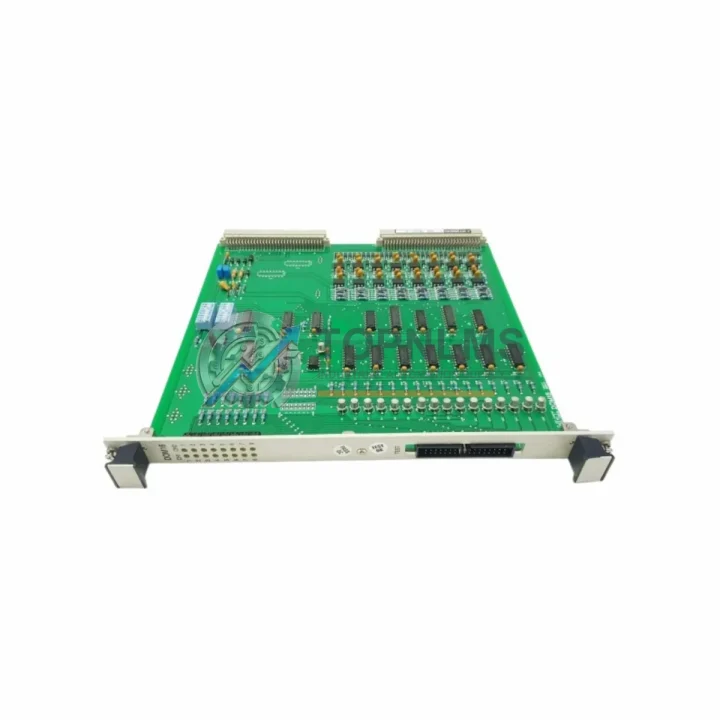

The HYUNDAI DOM16 is a 16-point transistor digital output module engineered for the HD1000 Series programmable logic controller platform. For maintenance engineers and plant managers responsible for keeping aging automation systems operational, securing a genuine DOM16 spare is one of the most effective strategies to eliminate unplanned downtime. Whether your facility runs continuous process lines, discrete manufacturing cells, or batch production systems, the DOM16 delivers the output switching reliability that HD1000-based control architectures depend on.

The HD1000 PLC platform has been widely deployed across South Korean and Asian industrial facilities in sectors including automotive assembly, food and beverage processing, chemical handling, and material handling. As these systems mature, the DOM16 digital output module becomes a critical wear item — transistor output channels degrade over time due to inductive load switching, voltage transients, and thermal cycling. Proactive spare management for the DOM16 is therefore not optional; it is a core element of any responsible preventive maintenance program.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance approach for HD1000-based control panels goes well beyond replacing the DOM16 in isolation. When a digital output module shows signs of channel failure — intermittent output, stuck-ON conditions, or blown internal fuses — experienced maintenance teams treat it as a signal to audit the entire I/O subsystem. During the same maintenance window, it is standard practice to inspect the companion DIM16 digital input module, which shares the same rack slot form factor and is subject to similar wear from field wiring transients.

The HD1000 CPU module — typically the HD1000-CPU or equivalent central processor unit — should be checked for firmware integrity and battery backup status during any DOM16 replacement event. A failing lithium backup battery in the CPU can corrupt the program stored in RAM, turning a simple output module swap into a full system recovery exercise. Keeping a spare CPU module on the shelf alongside the DOM16 is a best practice for facilities with no tolerance for extended downtime.

Power distribution within the HD1000 rack is handled by the PSU module (power supply unit), which provides regulated 5 VDC backplane power and 24 VDC field power. If the DOM16 has been subjected to repeated overcurrent events, the PSU module’s output capacitors may have degraded. Inspecting and, if necessary, replacing the PSU module during a DOM16 swap prevents secondary failures from occurring weeks after the initial repair.

Wiring termination is another area that deserves attention. The DOM16 connects to field devices through a removable terminal block or connector assembly. Over years of service, terminal screws loosen due to vibration and thermal expansion cycles, leading to intermittent connections that are often misdiagnosed as module failures. Replacing the terminal connector assembly and re-torquing all field wiring connections during a DOM16 replacement is a low-cost step that significantly improves long-term reliability.

For facilities that use the HD1000 platform in conjunction with HYUNDAI HMI panels — such as the HI series operator terminals — verifying the communication link between the HMI and the CPU module after any I/O module replacement is essential. A DOM16 swap that inadvertently disturbs the RS-232 or RS-485 communication cable between the HMI and the PLC can result in operator interface failures that are difficult to diagnose under production pressure.

Analog output applications that run alongside the DOM16 in mixed I/O configurations should also be reviewed. The AOM04 analog output module, where installed in the same HD1000 rack, shares backplane power with the DOM16. Verifying analog output calibration after a DOM16 replacement ensures that process control loops — temperature, pressure, flow — remain within specification.

Strategic Replacement Solutions

The DOM16 is a direct slot-in replacement for any failed or degraded 16-point transistor digital output module in the HD1000 rack. Because HYUNDAI designed the HD1000 platform with a standardized slot architecture, the DOM16 can be installed without mechanical modification to the rack or base unit. Field wiring connects to the same terminal positions, and the PLC program requires no modification — the CPU recognizes the new module automatically upon power-up.

For facilities transitioning from older HYUNDAI PLC generations — such as the earlier SPC series or the HPC platform — the DOM16 and the HD1000 rack represent a controlled upgrade path that preserves existing field wiring infrastructure. The 24 VDC transistor output standard used by the DOM16 is compatible with the vast majority of solenoid valves, motor starters, indicator lamps, and relay coils already installed in the field, eliminating the need for rewiring during the upgrade.

Stocking a minimum of two DOM16 units per production line is the recommended spare parts strategy for facilities with HD1000-based systems. One unit serves as the active replacement for immediate deployment; the second unit provides a tested backup that can be pre-configured and verified before it is needed. This two-unit buffer eliminates the risk of a second failure occurring before a replacement can be sourced and shipped.

All DOM16 units shipped from TOPNLMS are tested for output channel continuity, isolation integrity, and backplane connector condition prior to dispatch. Units are packaged in anti-static bags with foam cushioning to prevent transit damage. Standard shipping from Xiamen is 3–7 business days to most Asian destinations, with express options available for urgent requirements.

Support FAQ

Q1: How do I verify that the DOM16 is the correct module for my HD1000 rack?
Check the slot label on your HD1000 base rack and compare it with the module type printed on the DOM16 faceplate. The HD1000 rack uses a keyed slot system — the DOM16 will only seat correctly in a slot configured for digital output modules. If you have the original system documentation or wiring diagram, the I/O module assignment table will confirm the correct module type for each slot position.

Q2: Can the DOM16 be replaced while the PLC is powered?
Hot-swap capability depends on the specific HD1000 CPU firmware version and rack configuration. In most standard HD1000 installations, it is recommended to power down the rack before replacing any I/O module to prevent output channel damage and avoid unintended field device activation. Always consult your system safety procedures and isolate field loads before performing any module replacement.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, output channel failures under normal operating conditions, and backplane connector integrity. It does not cover damage caused by overvoltage, reverse polarity, physical impact, or installation errors. Warranty claims are processed within 5 business days of receiving the returned unit, with replacement shipment dispatched upon confirmation of the defect.

Q4: How should I store spare DOM16 modules?
Store spare DOM16 modules in their original anti-static packaging in a dry environment between 0°C and 40°C with relative humidity below 75%. Avoid storing modules near strong magnetic fields or in areas subject to vibration. Inspect stored modules annually for connector oxidation and replace anti-static packaging if it shows signs of degradation. Modules stored under these conditions maintain full functionality for a minimum of five years.
