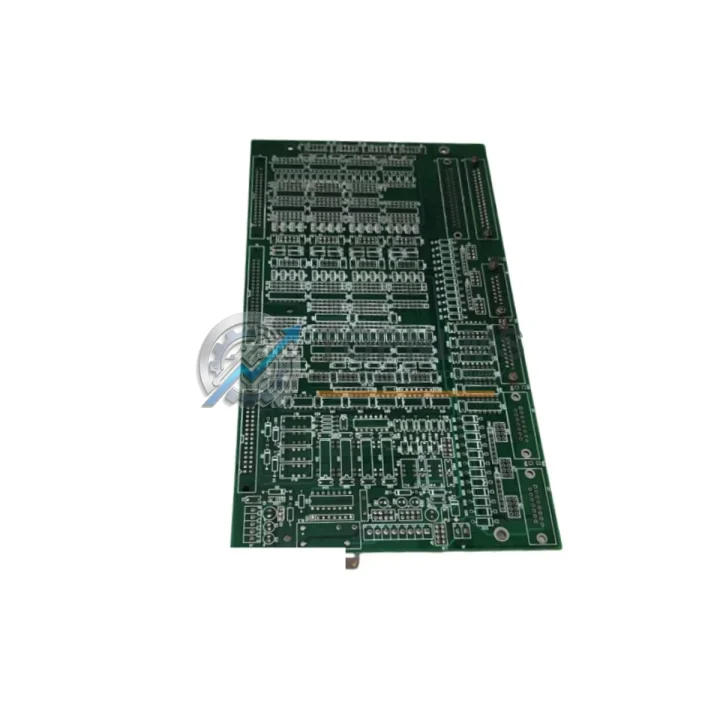

Hypertherm PCBS-0057 REV A Replacement for H1 Series

Product Overview

Hypertherm PCBS-0057 REV A Replacement for H1 Series: Seamless Transition for CNC Plasma Control Systems

When a Hypertherm H1 Series CNC plasma cutting system goes down due to a failed Servo I/O Interface Board, every hour of unplanned downtime translates directly into lost production and delayed orders. The Hypertherm PCBS-0057 REV A is the original-specification servo interface board designed for the H1 plasma control platform, governing the critical communication layer between the CNC motion controller and the servo drive axes. Sourced, tested, and shipped by TOPNLMS, this board provides a verified drop-in upgrade path that restores full system functionality without requiring architectural changes to your existing control cabinet.

The H1 Series was widely deployed across heavy fabrication, shipbuilding, structural steel, and pressure vessel manufacturing environments. As Hypertherm has progressively migrated its product line toward newer EDGE Pro and MicroEDGE Pro controllers, the PCBS-0057 has become increasingly difficult to source through standard distribution channels. TOPNLMS maintains dedicated inventory of this board specifically to support facilities that have chosen to extend the operational life of their H1 systems rather than undertake a full controller replacement project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful H1 system migration or board-level repair rarely involves a single component in isolation. When the PCBS-0057 servo interface board is replaced, experienced maintenance engineers use the opportunity to audit the broader control architecture and address adjacent wear items before returning the machine to production.

The H1 controller backplane, which houses the PCBS-0057 alongside the main CPU board and I/O expansion cards, should be inspected for oxidized edge connectors and cracked solder joints — conditions that frequently cause intermittent servo faults that are misdiagnosed as board failures. If the backplane shows signs of heat stress or connector wear, replacing it in the same maintenance window eliminates a likely future failure point.

The servo drive units connected downstream of the PCBS-0057 — typically Hypertherm-specified AC servo drives for the X, Y, and Z axes — should have their fault logs reviewed during the board replacement. A degraded servo drive can stress a new interface board and shorten its service life. Replacing a marginal drive at the same time as the interface board is a cost-effective decision that avoids a second unplanned shutdown within months.

The THC (Torch Height Control) module, which communicates with the servo interface board to maintain optimal cut height, is another component worth inspecting. If the THC has been producing erratic height readings or arc voltage instability, the root cause may be a failing interface board — but the THC itself may also have accumulated wear. Verifying THC calibration after the PCBS-0057 replacement ensures the full cutting loop is operating within specification.

Facilities running the H1 system on older industrial PCs or dedicated CNC operator stations should also evaluate the condition of the programming and communication cable set between the operator console and the H1 controller chassis. Degraded shielding on these cables introduces noise that can cause servo positioning errors even with a new interface board installed. Replacing worn communication cables as part of the retrofit is a low-cost step that protects the investment in the new board.

For plants considering a partial modernization rather than a full system replacement, the H1 platform can often be extended by upgrading the operator interface to a current-generation HMI panel while retaining the H1 motion controller and servo architecture. This approach preserves the existing servo tuning parameters, cutting programs, and wiring infrastructure while delivering a modern touchscreen operator experience. The PCBS-0057 REV A is fully compatible with this hybrid upgrade strategy.

Signal isolation modules installed between the H1 I/O board and field devices — limit switches, proximity sensors, and arc start signals — should be tested for leakage current and response time during any servo interface board replacement. Faulty isolation can allow transient voltages from the cutting arc to reach the interface board, which is a known failure mechanism for servo electronics in plasma cutting environments. Installing or replacing DIN-rail signal isolators on critical I/O channels is a straightforward protective measure.

Finally, the 24VDC control power supply feeding the H1 logic circuits deserves attention. A power supply operating at the edge of its output voltage tolerance — common in aging systems — can cause marginal logic levels on the servo interface board that manifest as intermittent communication errors. Verifying output voltage under load and replacing a degraded supply during the same maintenance window is standard practice for H1 system refurbishment.

Retrofit Guidance FAQ

Q1: Does replacing the PCBS-0057 REV A require any wiring changes to the H1 control cabinet?
No. The PCBS-0057 REV A uses the identical connector footprint and pinout as all previous H1 servo interface board revisions. The replacement is a direct board swap using the existing OEM harness. No rewiring, no adapter cables, and no modifications to the control cabinet are required. After installation, servo axis calibration verification is recommended before returning the machine to production cutting.

Q2: Will the existing H1 CNC programs and servo tuning parameters be retained after the board replacement?
Yes. The PCBS-0057 does not store cutting programs or servo tuning data — these reside in the H1 CPU board and its associated memory. Replacing the servo interface board does not affect stored programs, axis parameters, or machine configuration. However, it is good practice to back up the H1 system configuration to an external storage device before performing any board-level maintenance.

Q3: Our H1 system uses a third-party servo drive that was retrofitted years ago. Is the PCBS-0057 REV A still compatible?
Compatibility depends on how the third-party servo drive was integrated. If the drive was configured to accept the H1 analog command signal and fault relay interface — which is the standard retrofit approach — the PCBS-0057 REV A will function correctly. If the integration involved custom signal conditioning or modified connector wiring, your maintenance team should verify the interface specification before installation. TOPNLMS technical support can assist with compatibility assessment prior to purchase.

Q4: What pre-shipment testing does TOPNLMS perform on the PCBS-0057 REV A, and what does the 12-month warranty cover?
Every PCBS-0057 REV A unit shipped by TOPNLMS undergoes functional verification including power-on self-test, I/O channel continuity, and connector integrity inspection before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt. Warranty service includes replacement unit dispatch or repair, with technical support available via email and phone throughout the warranty period. Units damaged by incorrect installation, overvoltage events, or physical impact are evaluated on a case-by-case basis.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every Hypertherm PCBS-0057 REV A unit. Each board is individually inspected and functionally tested prior to packaging. Shipments are processed within 1–3 business days from our Xiamen warehouse, with DHL Express, FedEx International, and sea freight options available to match your project timeline and budget. For urgent breakdown situations, expedited dispatch can be arranged — contact our team directly to confirm lead time.

Our after-sales support team is available to assist with installation guidance, compatibility questions, and warranty claims throughout the 12-month coverage period. Replacement units for confirmed warranty cases are dispatched with priority handling to minimize your system downtime.
