Horner HE670RLY168C Ruggedized Relay Output Module Harsh Env

Product Overview

Horner HE670RLY168C Ruggedized Relay Output Module for Harsh Industrial Environments

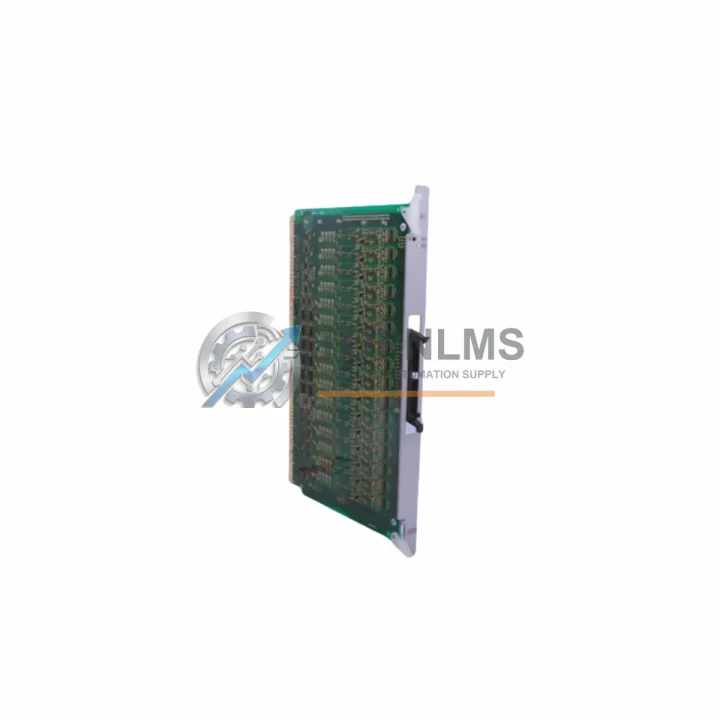

The Horner APG HE670RLY168C is a 16-channel relay output PC board engineered for the OCS HE670 Series of Operator Control Stations. Designed to perform reliably in the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, continuous mechanical vibration, and intense electromagnetic interference — this module delivers the switching precision and long-term durability that mission-critical automation systems require. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical plant, or integrated into a heavy-industry SCADA architecture, the HE670RLY168C maintains stable relay actuation cycles without signal degradation or unexpected trip events.

Horner APG’s OCS (Operator Control Station) platform combines PLC logic, HMI visualization, and I/O expansion into a unified architecture. The HE670RLY168C serves as the discrete output backbone of this platform, providing isolated relay contacts that interface directly with field devices such as motor starters, solenoid valves, pilot lights, and safety interlocks. Its PC-board form factor integrates cleanly into the HE670 chassis, eliminating the need for external relay banks and reducing overall panel footprint — a critical advantage in space-constrained control cabinets found in water treatment facilities, mining substations, and power distribution switchgear rooms.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, no single module operates in isolation. The HE670RLY168C is most effective when deployed as part of a coordinated system that addresses every layer of field protection and process control. Within the Horner OCS HE670 platform, it works in close coordination with the HE670DIN168C digital input module, which captures discrete field signals from limit switches, proximity sensors, and pushbuttons, while the HE670RLY168C drives the corresponding output actuators. For analog process variables — temperature, pressure, flow — the HE670AN4 analog input module feeds real-time process data into the OCS logic engine, enabling the relay outputs to respond to threshold conditions with millisecond-level precision.

Communication integrity is equally critical in harsh environments. The HE670RLY168C-equipped OCS panel typically includes a Horner HE670ETH Ethernet communication module or an HE670CAN CANopen communication module to maintain supervisory connectivity with SCADA systems and distributed I/O networks even under high electromagnetic noise conditions. For installations requiring serial fieldbus integration, the HE670MDS Modbus/RS-485 communication module provides robust, noise-immune data exchange with variable frequency drives (VFDs), intelligent motor controllers, and remote terminal units (RTUs).

Power supply stability directly affects relay output reliability. Pairing the HE670RLY168C with a 24 VDC DIN-rail industrial power supply — rated for wide-input AC voltage (85–264 VAC) and equipped with surge and short-circuit protection — ensures that relay coil voltage remains within specification even during grid disturbances common in heavy industrial facilities. For safety-critical loops, integrating a Horner or third-party safety relay module in series with selected HE670RLY168C output channels provides SIL-rated emergency stop and machine guarding functions compliant with IEC 62061 and ISO 13849.

Terminal block integrity is another often-overlooked factor in harsh-environment installations. Spring-clamp or screw-type DIN-rail terminal modules rated for vibration resistance (per IEC 60947-7-1) should be used at all field wiring termination points to prevent contact loosening caused by continuous mechanical vibration in compressor rooms, pump stations, or rolling mill environments. Surge protection devices (SPDs) installed on I/O signal lines further protect the HE670RLY168C’s relay contacts from transient overvoltages induced by nearby high-power switching equipment.

Application in Critical Infrastructure

The Horner HE670RLY168C has established a strong track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream wellhead automation and midstream pipeline control, the HE670RLY168C drives shutdown valves, chemical injection pumps, and flare ignition systems. Its relay isolation prevents ground loops between intrinsically safe field circuits and the control system, a mandatory requirement in Zone 1 and Zone 2 hazardous area installations. The OCS HE670 platform’s compact form factor allows it to be installed in explosion-proof enclosures (Ex d) with minimal internal volume consumption.

Mining & Mineral Processing: Underground and surface mining environments subject control equipment to extreme dust loading, continuous vibration from crushers and conveyors, and wide temperature swings between day and night shifts. The HE670RLY168C’s sealed relay contacts and robust PC-board construction resist contamination ingress, maintaining reliable switching of conveyor belt drives, ventilation fans, and dewatering pump motors across multi-year service intervals without relay contact degradation.

Power Generation & Distribution: In thermal power plants and hydroelectric facilities, the HE670RLY168C controls auxiliary equipment including cooling water pumps, lubrication oil systems, and generator excitation contactors. Its EMI tolerance is particularly valuable in high-voltage switchgear rooms where electromagnetic fields from bus bars and transformers can induce false triggering in less robust relay output modules.

Water & Wastewater Treatment: Municipal and industrial water treatment plants operate continuously, making unplanned downtime extremely costly. The HE670RLY168C’s 16-channel capacity allows a single module to control multiple process stages — raw water intake valves, chemical dosing pumps, UV disinfection systems, and effluent discharge gates — within a single compact OCS panel, reducing cabinet complexity and simplifying maintenance.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate intense electromagnetic interference and thermal stress. The HE670RLY168C’s industrial-grade relay contacts withstand the high inductive loads associated with large motor starters and solenoid-operated hydraulic valves, maintaining switching accuracy even as ambient temperatures approach the upper limits of the operating range.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and what is the claims process?
The HE670RLY168C carries a 12-month warranty from the date of shipment, covering all manufacturing defects in materials and workmanship. Every unit undergoes a full functional test — including relay actuation verification across all 16 channels, contact resistance measurement, and coil voltage tolerance check — before dispatch. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund upon return and inspection of the defective module. Contact [email protected] to initiate a warranty case.

Q2: How do I confirm compatibility with my existing Horner OCS HE670 system?
The HE670RLY168C is designed exclusively for the Horner OCS HE670 Series chassis. Compatibility is confirmed by matching the chassis model number (HE670 prefix) and verifying that the relay output board slot is unpopulated or that the existing board is the same form factor. TOPNLMS technical support can assist with compatibility verification — provide your full OCS model number and current I/O configuration when contacting us.

Q3: Is the HE670RLY168C suitable for use in hazardous or classified areas?
The HE670RLY168C is a standard (non-Ex certified) relay output board intended for installation inside appropriate industrial enclosures. For hazardous area applications (ATEX Zone 1/2, NEC Class I Division 1/2), the module must be housed in a certified explosion-proof or purged-and-pressurized enclosure. TOPNLMS can advise on suitable enclosure pairings and intrinsic safety barrier configurations for your specific site classification.

Q4: What is the lead time, and can TOPNLMS support long-term or repeat procurement?
In-stock units ship within 1–3 business days via DHL, FedEx, or UPS with full tracking. For project-based or MRO (maintenance, repair, and operations) procurement requiring multiple units or scheduled deliveries, TOPNLMS offers reserved stock arrangements and volume pricing. We maintain ongoing supplier relationships to support long-term availability of Horner APG OCS components, including the HE670RLY168C and related I/O and communication modules, ensuring continuity of supply for your maintenance and expansion programs.
