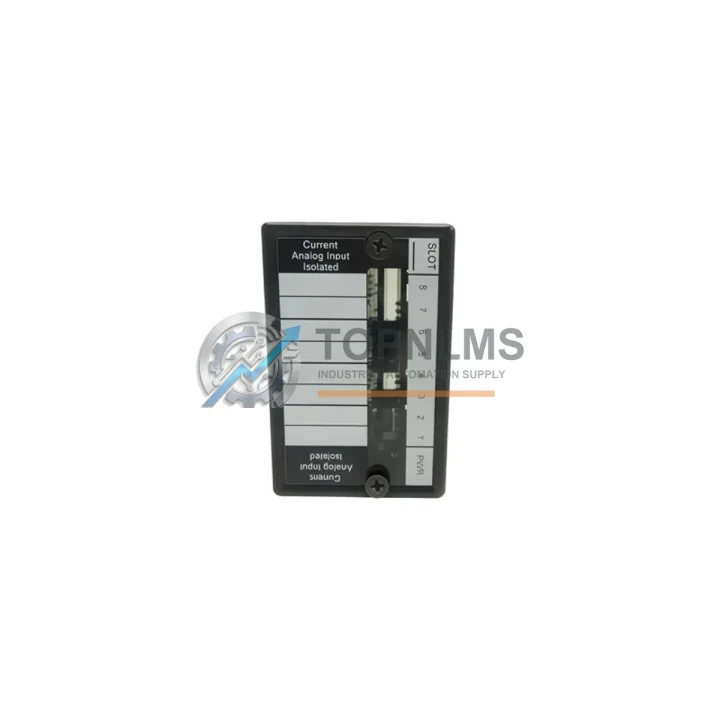

Horner APG HE670ADC840 Original Industrial Spare Series 670 Compatible: System Stability Through Verified Analog I/O Replacement

In modern industrial automation environments, the integrity of analog signal acquisition is foundational to process control reliability. The Horner APG HE670ADC840 is an original analog input module engineered for the Series 670 Rack I/O platform — a modular, high-density I/O architecture widely deployed in manufacturing, water treatment, energy management, and process automation facilities worldwide. When this module fails or degrades, the consequences extend far beyond a single measurement point: PID loops lose feedback, SCADA dashboards go blind, and operators face unplanned downtime that can cost thousands per hour.

Sourcing a verified original HE670ADC840 replacement is the fastest path back to full system stability. At TOPNLMS, every unit is tested prior to shipment, backed by a 12-month warranty, and dispatched with full documentation to support your maintenance records and audit trail.

Critical Technical Specs

Preventive Maintenance Strategy

Analog input modules like the HE670ADC840 rarely fail in isolation. In a Series 670 rack system, the module shares a backplane with power supply modules, digital I/O modules, and communication interfaces — all of which are subject to the same environmental stressors: vibration, thermal cycling, humidity ingress, and power transients. A disciplined preventive maintenance program should treat the HE670ADC840 replacement as a trigger for a broader rack-level inspection.

During a scheduled shutdown or corrective maintenance visit, technicians should simultaneously inspect the HE670PWR or equivalent Series 670 rack power supply module, as degraded DC rail voltage is a leading cause of analog measurement drift and module lockup. The HE670ADC840‘s signal accuracy is directly dependent on a stable backplane supply; a marginal power module will cause the replacement analog input module to exhibit the same symptoms as the failed unit.

Signal wiring integrity is equally critical. Field wiring connected to the HE670ADC840’s terminal block should be inspected for loose terminations, corroded conductors, and shield grounding continuity. If the facility uses shielded instrumentation cables (e.g., Belden 8761 or equivalent twisted-pair shielded cable), verify that shield drain wires are terminated at one end only to prevent ground loops that introduce 50/60 Hz noise into analog channels.

For facilities running temperature or pressure loops, the transmitters feeding the HE670ADC840 — such as 4–20 mA two-wire pressure transmitters or RTD/thermocouple signal conditioners — should be calibrated and loop-tested as part of the same maintenance window. A newly installed analog input module will expose transmitter drift that was previously masked by a degraded module’s offset errors.

If the Series 670 rack also houses HE670DAC analog output modules driving control valves or variable frequency drives, these should be verified for output accuracy using a calibrated loop calibrator. Analog output degradation in a control loop can cause hunting, overshoot, or process instability that is often misattributed to the analog input side.

Communication modules within the same rack — such as HE670ETN Ethernet modules or HE670SNP serial network modules — should have their firmware versions logged and connection status verified. A rack-level communication fault can prevent the PLC controller from reading updated analog values even when the HE670ADC840 itself is functioning correctly.

For facilities with aging Series 670 installations, it is prudent to maintain a minimum spare inventory that includes: one HE670ADC840 analog input module, one compatible HE670DOC or digital output module, one rack power supply, and a set of terminal block connectors matching the rack’s field wiring interface. This spare kit approach eliminates multi-day lead times during emergency shutdowns and is standard practice in ISO 55001-aligned asset management programs.

Finally, if the facility operates Horner APG OCS (Operator Control Station) all-in-one controllers alongside the Series 670 rack — such as the HE-XW1E0 or HE-XEC100 — ensure that the controller’s Cscape configuration file is backed up and version-controlled before any rack module swap. Module slot reassignment in the rack configuration requires a Cscape project update and download to the controller.

Strategic Replacement Solutions

The HE670ADC840 is a legacy-compatible module that allows facilities to extend the operational life of their Series 670 rack infrastructure without migrating to a new PLC platform. For plants running Horner APG controllers programmed in Cscape, replacing a failed analog input module with a verified original HE670ADC840 requires no software changes, no re-commissioning of the control program, and no retraining of maintenance staff — the module slots directly into the existing rack and is recognized automatically by the controller on power-up.

This plug-and-play replacement capability is a significant operational advantage over platform migration projects, which typically require 6–18 months of engineering effort, new hardware procurement, software rewriting, and factory acceptance testing. For facilities where the Series 670 system controls non-critical auxiliary processes, the cost-benefit analysis almost always favors spare-part-based life extension over full system replacement.

For facilities that have already begun a phased migration away from Series 670, maintaining a small buffer stock of HE670ADC840 modules ensures that the legacy system remains operational and revenue-generating during the transition period, without creating single-point-of-failure risk on the analog input side.

TOPNLMS sources HE670ADC840 units from verified supply channels, performs functional testing on each unit prior to shipment, and provides a 12-month warranty covering manufacturing defects and functional failures. Units are shipped with ESD-protective packaging, and a test report is available upon request for quality-critical applications.

Support FAQ

Q1: Is the HE670ADC840 compatible with all Series 670 rack configurations?
Yes. The HE670ADC840 is designed for the Horner APG Series 670 modular rack backplane and is compatible with all standard Series 670 rack chassis sizes. It is recognized by Horner APG OCS and standalone HE693/HE697 series controllers configured via Cscape software. No hardware modification is required for installation.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional failures and manufacturing defects under normal operating conditions. If a unit fails within the warranty period, contact TOPNLMS at [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a replacement or refund within the agreed service timeline.

Q3: How is each unit tested before shipment?
Each HE670ADC840 unit undergoes pre-shipment functional verification including backplane interface continuity, analog channel response testing across the configured input range, and visual inspection for physical damage. A test report documenting the results is available upon request for customers with quality management system requirements.

Q4: Can I use the HE670ADC840 as a direct replacement for an older or variant analog input module in the same series?
The HE670ADC840 is the specific part number for this analog input configuration. If your existing module carries a different suffix (e.g., HE670ADC820 or HE670ADC880), the channel count, input range, or resolution may differ. We recommend verifying the exact part number from your rack’s module label or Cscape I/O configuration before ordering. Our technical team at [email protected] can assist with compatibility verification at no charge.
