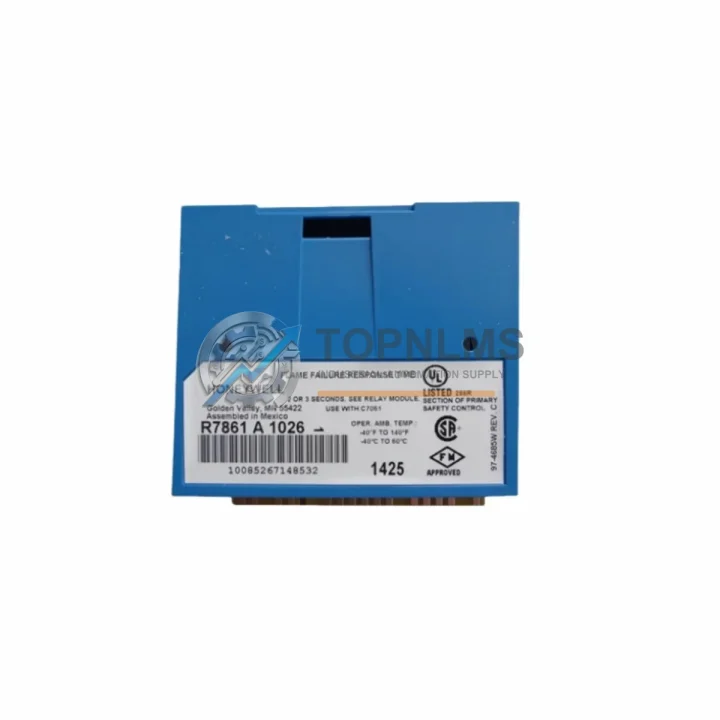

Honeywell R7861A1026 Ruggedized UV Flame Amplifier for Harsh Environments

Product Overview

Honeywell R7861A1026 Ruggedized UV Flame Amplifier for Harsh Environments

The Honeywell R7861A1026 is a UV flame amplifier module engineered for the Honeywell 7800 Series Burner Management System (BMS), delivering mission-critical flame detection reliability in the most demanding industrial environments. Designed to operate continuously in high-temperature boiler rooms, petrochemical processing plants, power generation facilities, and heavy industrial combustion systems, this module provides the signal conditioning and amplification backbone that keeps burner safety interlocks functioning without compromise.

In industrial settings where combustion control failures carry catastrophic consequences — including uncontrolled fuel release, explosion risk, and regulatory non-compliance — the R7861A1026 serves as a cornerstone safety component. Its UV flame detection circuitry interfaces directly with the Honeywell R7847A and R7849A flame detectors, processing ultraviolet radiation signals from gas, oil, and combination burners with high discrimination accuracy. The amplifier’s output drives the 7800 Series relay module logic, enabling rapid flame-on and flame-out response within the IEC 61511 functional safety framework.

Rugged Specifications Table

Comprehensive Protection Solutions

The R7861A1026 does not operate in isolation — it is an integral node within a layered combustion safety architecture. In a typical industrial burner management panel, this UV flame amplifier works in concert with the Honeywell R7140L1009 primary relay module, which provides the master logic sequencing for burner startup, ignition, and shutdown. The relay module’s plug-in amplifier socket accepts the R7861A1026 directly, ensuring a secure, vibration-resistant electrical connection even in environments subject to continuous mechanical shock from heavy machinery.

For facilities operating dual-fuel burners or high-capacity process heaters, the Honeywell R7284U1004 primary control and the Honeywell R7484C1001 expanded-capability relay module are frequently deployed alongside the R7861A1026 to manage complex multi-burner sequences. In these configurations, the UV amplifier’s fast flame signal response — typically within 1 second of flame establishment — is essential for maintaining the tight timing windows required by EN 298 and NFPA 85 burner management standards.

Upstream of the BMS, industrial power quality directly affects amplifier performance. The Honeywell PS4-24VDC power supply module and compatible 24 VDC DIN-rail power supplies from brands such as Phoenix Contact QUINT or Siemens SITOP PSU100S ensure stable, low-ripple DC power delivery to the relay module base, protecting the R7861A1026’s sensitive UV signal processing circuitry from voltage transients common in heavy industrial switchgear environments.

In facilities where electromagnetic interference is a persistent concern — such as arc furnace plants, induction heating lines, or high-voltage substations — the R7861A1026’s EMI-hardened design complements the use of shielded signal cables and ferrite suppression cores on detector wiring. When paired with the Honeywell C7027A1023 UV scanner or the C7035A1023 self-check UV scanner, the system achieves a high degree of nuisance-trip immunity while maintaining the sub-second flame failure response required for safe burner shutdown.

For safety-critical installations requiring proof-test documentation, the R7861A1026 integrates with the Honeywell S7800A1142 keyboard display module, enabling on-site technicians to perform diagnostic checks, view lockout history, and verify amplifier signal strength without removing the module from service. This capability is particularly valued in continuous production environments — petrochemical crackers, cement kilns, and glass melting furnaces — where unplanned downtime carries significant financial and operational penalties.

Application in Critical Infrastructure

The Honeywell R7861A1026 UV Flame Amplifier is deployed across the full spectrum of heavy industrial and critical infrastructure sectors where combustion reliability and safety interlock integrity are non-negotiable.

In oil and gas processing, the module is installed in fired heaters, reboilers, and flare pilots at upstream production facilities and downstream refineries. Its UV detection method is particularly effective in natural gas and light distillate combustion applications, where the UV emission spectrum of the flame provides a clean, interference-resistant signal even in the presence of ambient infrared radiation from hot refractory surfaces.

In power generation, the R7861A1026 is used in auxiliary boiler burner management systems at coal, gas, and combined-cycle power plants. These installations demand continuous 24/7 operation across wide ambient temperature ranges, and the module’s rated operating envelope of -40°C to +70°C ensures reliable performance from cold-climate outdoor installations to hot boiler room environments.

In metallurgical and mining operations, the module supports burner management on annealing furnaces, ladle preheaters, and ore roasting kilns. These environments are characterized by high ambient dust concentrations, vibration from heavy rolling mills or crushers, and frequent electrical noise from large motor drives — all conditions the R7861A1026 is engineered to withstand.

In water and wastewater treatment, the module is found in sludge incinerators and biogas combustion systems, where reliable flame supervision is required to meet environmental permit conditions and prevent unburned fuel release. Municipal utilities and industrial water treatment operators rely on the 7800 Series BMS platform — and the R7861A1026 amplifier specifically — for its long service history, broad spare parts availability, and straightforward field replacement procedure.

In chemical and pharmaceutical manufacturing, process heaters and thermal oxidizers equipped with the R7861A1026 must meet stringent process safety management (PSM) requirements under OSHA 29 CFR 1910.119 and equivalent international standards. The module’s SIL 2-capable architecture supports the functional safety documentation requirements of these regulated facilities.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Honeywell R7861A1026?
Every R7861A1026 unit supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed promptly, with replacement or repair dispatched within agreed lead times. Our warranty terms are documented and provided with each shipment.

Q2: How is each unit tested before shipment?
All R7861A1026 modules undergo functional verification prior to dispatch. Units are inspected for physical integrity, connector condition, and basic electrical continuity. Where test equipment is available, amplifier signal output is verified against Honeywell’s published specifications. This pre-shipment testing process ensures that customers receive a module ready for immediate installation and commissioning.

Q3: Is the R7861A1026 compatible with my existing 7800 Series relay module?
The R7861A1026 is designed as a plug-in amplifier for the Honeywell 7800 Series relay module platform, including the R7140, R7184, R7284, and R7484 series bases. Compatibility depends on the specific relay module model and its amplifier socket configuration. We recommend confirming your relay module model number before ordering. Our technical team is available to assist with compatibility verification at no charge.

Q4: Can TOPNLMS support long-term supply and replacement needs for this module?
Yes. TOPNLMS maintains stock of the R7861A1026 and related 7800 Series components to support both immediate replacement needs and planned maintenance programs. We understand that industrial facilities require predictable spare parts availability to support their preventive maintenance schedules and emergency repair inventories. Customers with ongoing procurement requirements are encouraged to contact us to discuss blanket order arrangements and priority stock reservation.
