Honeywell MC-PDOX02 51304487-150 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell MC-PDOX02 51304487-150 Original Industrial Spare TDC 3000 Compatible: Ensuring System Stability in Critical Process Control Environments

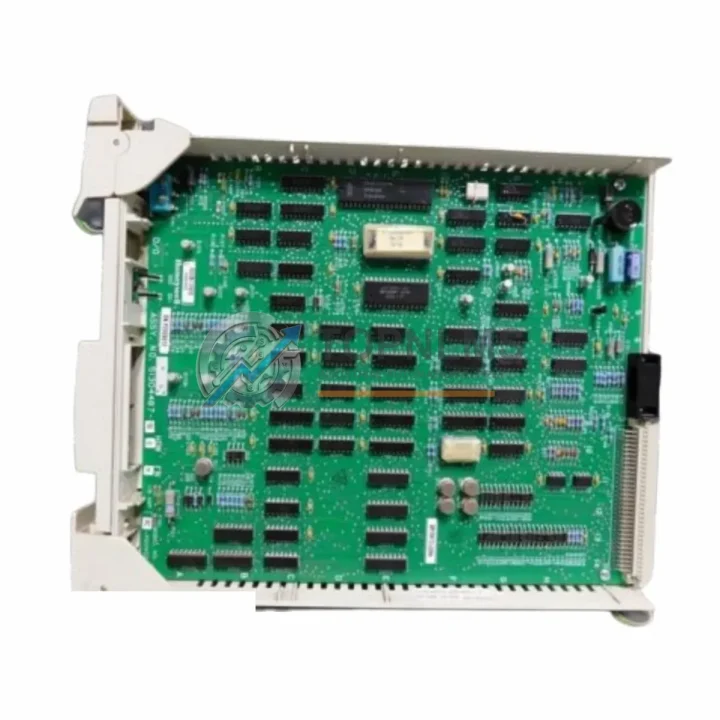

The Honeywell MC-PDOX02 (Part No. 51304487-150) is an original digital output processor module designed for the Honeywell TDC 3000 Distributed Control System — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process manufacturing. As aging TDC 3000 installations continue to operate well beyond their original design life, sourcing verified original spare parts for this platform has become a mission-critical procurement priority for maintenance engineers and reliability teams worldwide.

At TOPNLMS, every MC-PDOX02 unit is individually inspected, function-tested, and shipped with a 12-month warranty, giving your maintenance team the confidence to execute planned replacements or emergency interventions without compromising system integrity.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a TDC 3000 system experiences a digital output fault, the failure is rarely isolated to a single module. Experienced DCS maintenance engineers know that a failing MC-PDOX02 is often accompanied by stress on adjacent components sharing the same card cage, power bus, or LCN segment. A disciplined preventive maintenance approach — rather than reactive replacement — is the most effective way to protect uptime in continuous process environments where unplanned shutdowns carry significant financial and safety consequences.

During a scheduled inspection or turnaround, while replacing or testing the MC-PDOX02, maintenance teams should simultaneously evaluate the condition of the Honeywell MC-PDIX02 digital input processor module, which typically operates in paired configuration with the output processor in the same HPM or PM subsystem. A degraded input module can mask output faults and complicate root-cause analysis.

The Honeywell MC-TAIX08 analog input module and MC-TAOX04 analog output module installed in adjacent slots of the same card cage should also be inspected for connector wear, backplane contact integrity, and firmware revision alignment. Mixed firmware revisions across I/O modules in a single HPM are a known source of intermittent communication faults on the LCN.

Power integrity is foundational to TDC 3000 reliability. The Honeywell MC-PSIM11 power supply module feeding the card cage should be load-tested during any planned outage involving I/O module replacement. A power supply operating near its rated capacity with aging capacitors can cause subtle voltage sag that manifests as sporadic output module resets — symptoms that are frequently misdiagnosed as module failure.

Communication health across the LCN should be verified using the Honeywell NIM (Network Interface Module) diagnostics. If the MC-PDOX02 replacement is being performed in a node that also hosts a Honeywell HG (Highway Gateway) or AM (Application Module), confirm that LCN traffic loads are within specification before returning the node to service.

For facilities managing multiple TDC 3000 cabinets, it is also prudent to inspect LCN coaxial cable terminations and tap connectors at the same time. Degraded LCN physical layer connections are a leading cause of intermittent module communication errors that are incorrectly attributed to module hardware failure. Maintaining a small buffer stock of LCN tap assemblies and termination resistors alongside critical I/O modules like the MC-PDOX02 is a low-cost insurance policy against extended troubleshooting delays.

Finally, if the control cabinet housing the MC-PDOX02 also contains Honeywell relay output modules (MC-DIOL16) or LLMUX (Low-Level Multiplexer) assemblies, these should be included in the inspection scope. Relay contacts in aging output modules accumulate wear that is not always visible in DCS diagnostics until a contact fails open under load — a failure mode that can be catastrophic in interlock or shutdown circuits.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform, while no longer in active production, remains the backbone of process control at hundreds of facilities globally. Honeywell’s official end-of-life and migration roadmap for TDC 3000 hardware means that OEM new-stock availability for modules like the MC-PDOX02 is increasingly constrained. Facilities that have not yet migrated to Experion PKS or a successor platform face a growing challenge: maintaining system availability with a shrinking pool of verified original hardware.

TOPNLMS addresses this challenge by maintaining inventory of tested original TDC 3000 modules, including the MC-PDOX02 (51304487-150), sourced from decommissioned systems, controlled surplus, and verified industrial channels. Each unit undergoes functional testing prior to shipment to confirm output channel integrity, backplane communication, and module self-diagnostics.

For facilities executing a phased migration strategy — maintaining TDC 3000 in parallel with a new DCS platform during transition — having a reliable source of original spare modules is essential to avoiding forced migration timelines driven by hardware failure rather than project schedule. A single verified MC-PDOX02 in your maintenance stockroom can prevent a multi-day unplanned outage that would otherwise compress your migration window and increase project risk.

For older installations where the original module revision is no longer available, our technical team can advise on compatible revision substitutions within the TDC 3000 hardware family, ensuring that replacement modules are compatible with your existing HPM firmware and system configuration without requiring a system software update.

Support FAQ

Q1: What is the warranty coverage for the MC-PDOX02 (51304487-150)?
All MC-PDOX02 units supplied by TOPNLMS carry a 12-month warranty covering functional defects identified under normal operating conditions. Each module is tested prior to shipment. In the event of a warranty claim, we provide a replacement unit or full refund based on your preference and the outcome of our technical review.

Q2: How do I verify compatibility with my existing TDC 3000 system before installation?
Compatibility is determined by your HPM or PM firmware revision and the card cage slot assignment. The MC-PDOX02 is designed for use in standard TDC 3000 High-Performance Manager (HPM) and Process Manager (PM) configurations. We recommend confirming your system’s hardware revision list (HRL) and comparing it against the module’s hardware revision marking before installation. Our technical team can assist with compatibility verification if you provide your system’s HRL or HPM configuration details.

Q3: What pre-shipment testing is performed on each module?
Each MC-PDOX02 undergoes a multi-point functional test covering: power-on self-test (POST) completion, output channel continuity and switching verification, backplane connector integrity inspection, and visual inspection for component damage or corrosion. Test records are available upon request for quality documentation purposes.

Q4: What is the recommended inventory strategy for TDC 3000 spare modules?
For facilities operating TDC 3000 systems with no near-term migration plan, we recommend maintaining a minimum of one cold-spare MC-PDOX02 per HPM node that hosts digital output processing functions. Given the declining availability of original TDC 3000 hardware, procuring spares proactively — rather than on a break-fix basis — significantly reduces the risk of extended lead times during a critical outage. Pairing the MC-PDOX02 spare with a corresponding MC-PDIX02 digital input module and a backup power supply module provides comprehensive coverage for the most failure-prone components in a TDC 3000 I/O subsystem.
