Honeywell MU-TAIH12 51304337-100 Ruggedized Analog Input Module

Product Overview

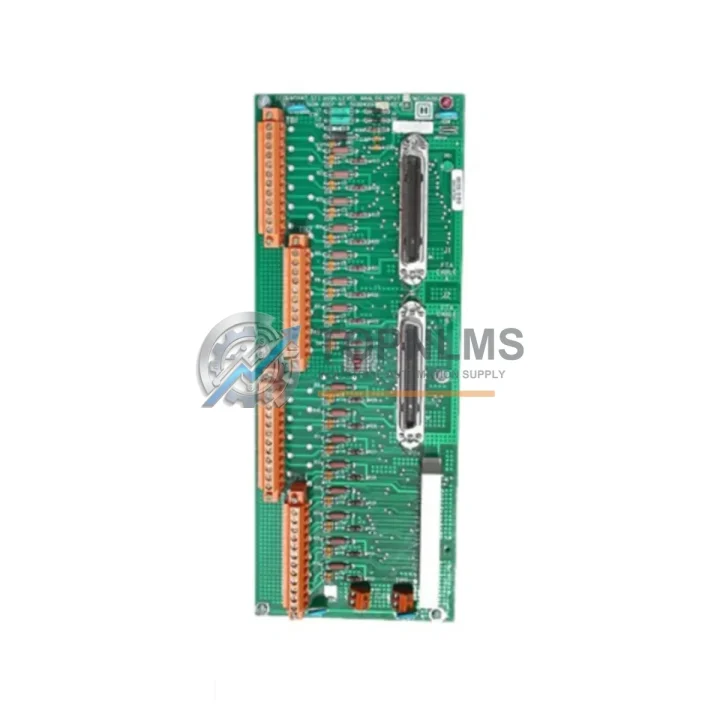

Honeywell MU-TAIH12 51304337-100 Ruggedized Analog Input Module for Harsh Industrial Environments

The Honeywell MU-TAIH12 51304337-100 is a 12-channel analog input board engineered for continuous, fault-tolerant operation within the Honeywell TotalPlant Solution (TPS) and TDC 3000 Distributed Control System (DCS) architecture. Designed to withstand the rigors of high-temperature process plants, high-humidity coastal facilities, dust-laden mining environments, and electromagnetically noisy heavy industrial sites, this module delivers the signal integrity and long-term reliability that mission-critical infrastructure demands. Whether deployed in a primary control loop or as a hot-standby spare, the MU-TAIH12 51304337-100 maintains precise analog signal acquisition across all 12 channels without compromise.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Honeywell TPS or TDC 3000 control system, the MU-TAIH12 51304337-100 analog input board operates as a critical data acquisition node, feeding real-time process variables into the High-Performance Process Manager (HPM). Its 12 isolated analog channels capture field signals from transmitters, thermocouples, and pressure sensors, then relay conditioned data across the Universal Control Network (UCN) to the system’s supervisory layer. This seamless integration depends on the health of surrounding modules: the Honeywell MU-TAOX12 51304453-100 analog output module drives final control elements based on the input data processed by the MU-TAIH12, while the Honeywell MU-TDID12 51304441-100 digital input module monitors discrete field signals such as valve limit switches and motor run contacts in the same cabinet.

Power integrity is foundational to stable analog signal acquisition. The Honeywell MC-PDOX02 redundant power supply module ensures that voltage fluctuations — common in heavy industrial environments with large motor loads — never propagate into the sensitive analog circuitry of the MU-TAIH12. Alongside it, the Honeywell MC-TAMR03 termination assembly provides the field-side wiring interface, protecting the module’s internal circuitry from transient surges and ground loops that are endemic to long cable runs in petrochemical plants and power stations.

For facilities operating under functional safety requirements, the MU-TAIH12 is commonly paired with Honeywell FSC (Fail-Safe Controller) safety modules and Honeywell HIMA safety relay assemblies to create a layered protection architecture. Communication integrity across the plant network is maintained by the Honeywell NIM (Network Interface Module), which bridges the TPS backplane to Ethernet or Modbus-based supervisory systems. In cabinet configurations where I/O density is high, the Honeywell MU-GAIH02 galvanically isolated analog input module complements the MU-TAIH12 by handling signals from hazardous area field instruments, ensuring ATEX and IECEx compliance without compromising data fidelity.

Vibration and shock resistance are equally important in compressor stations, offshore platforms, and rolling mill environments. The MU-TAIH12’s board-level construction — with conformal coating options and robust connector latching — ensures that mechanical stress from continuous equipment vibration does not cause intermittent signal faults. When integrated with the Honeywell TDC 3000 Data Hiway communication backbone and the Honeywell AM (Application Module) for advanced process control, the MU-TAIH12 51304337-100 forms the sensory foundation of a control system capable of running uninterrupted for years between planned maintenance windows.

Application in Critical Infrastructure

The Honeywell MU-TAIH12 51304337-100 has a proven deployment record across the world’s most demanding process industries. In oil and gas upstream and midstream facilities, it monitors wellhead pressure, separator temperature, and flow transmitter signals in environments where ambient temperatures routinely exceed 50°C and salt-laden air accelerates corrosion. Its robust analog front-end maintains measurement accuracy even when installed in control rooms adjacent to high-voltage switchgear, where electromagnetic interference levels would compromise lesser hardware.

In coal-fired and gas-fired power generation plants, the MU-TAIH12 tracks boiler drum level, turbine exhaust temperature, and feedwater flow — process variables where a single missed reading can trigger a costly unplanned shutdown. The module’s 12-channel density allows plant engineers to consolidate analog I/O into fewer cabinet slots, reducing wiring complexity and improving mean time between failures (MTBF) for the overall control system.

Water and wastewater treatment facilities rely on the MU-TAIH12 to monitor pH, dissolved oxygen, turbidity, and chemical dosing flow rates across multiple treatment stages. The module’s tolerance for high-humidity environments — treatment plants frequently operate at near-saturation humidity levels — makes it a preferred choice for process engineers specifying DCS hardware in these applications.

In metallurgical and steel production environments, where furnace radiant heat, heavy vibration from rolling mills, and pervasive metallic dust create extreme conditions for electronic hardware, the MU-TAIH12’s industrial-grade construction provides the operational continuity that production managers require. Unplanned downtime in a continuous casting line can cost tens of thousands of dollars per hour; having a tested, warranted spare module available from TOPNLMS eliminates the lead-time risk associated with OEM procurement channels.

Mining and mineral processing operations similarly depend on the TPS/TDC 3000 platform for crusher control, flotation cell management, and tailings pump monitoring. The MU-TAIH12 51304337-100 supports these applications by delivering consistent 12-channel analog acquisition even in the presence of variable-frequency drive (VFD) harmonic noise and ground potential differences across large plant footprints.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Honeywell MU-TAIH12 51304337-100?
Every MU-TAIH12 51304337-100 shipped by TOPNLMS carries a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Honeywell’s published specifications. Warranty claims are processed directly through TOPNLMS with no requirement to engage the OEM, minimizing downtime for your facility.

Q2: How is the module tested before shipment?
Each unit undergoes a multi-point functional verification prior to dispatch, including power-on self-test, channel-by-channel analog signal integrity checks, and backplane connector inspection. Modules that do not pass all test criteria are quarantined and not offered for sale. A test report is available upon request for customers with documented quality management system (QMS) requirements.

Q3: Is the MU-TAIH12 51304337-100 compatible with my existing TPS or TDC 3000 system?
Yes. The MU-TAIH12 51304337-100 is a direct form-fit-function replacement for the original Honeywell part number and is compatible with all standard TPS and TDC 3000 HPM cabinets using the standard I/O backplane. No firmware changes or system reconfiguration are required for a like-for-like swap. If your system uses a non-standard backplane revision, our technical team can verify compatibility before shipment.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains a managed inventory of Honeywell TPS and TDC 3000 spare modules to support customers with planned maintenance schedules, turnaround projects, and emergency replacement needs. Blanket purchase orders and scheduled delivery agreements are available for facilities that require guaranteed stock availability. Contact our team to discuss a supply agreement tailored to your plant’s maintenance strategy.
