Honeywell FS-FANWR-24R Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell FS-FANWR-24R Original Industrial Spare TDC 3000 Compatible: System Stability Through Proven Redundant Cooling

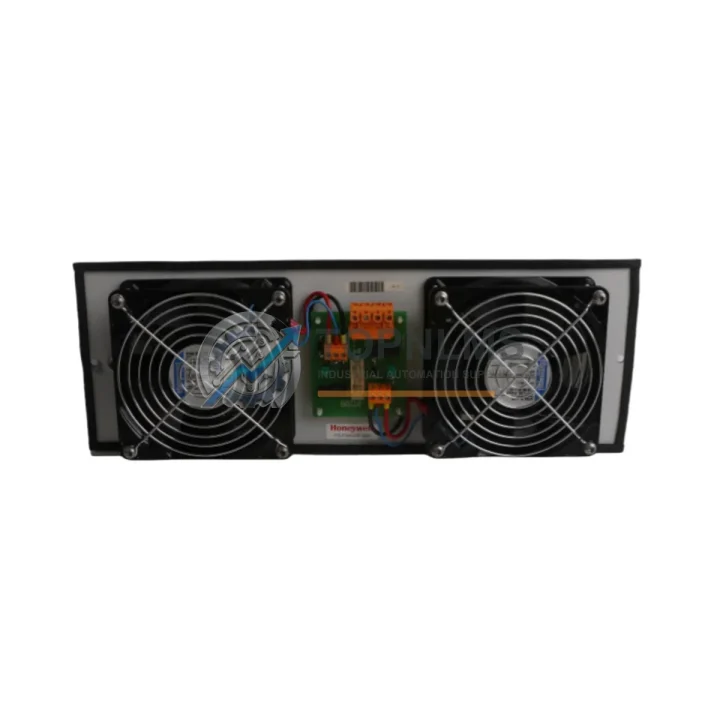

The Honeywell FS-FANWR-24R is a 24VDC redundant fan assembly engineered specifically for the TDC 3000 Distributed Control System cabinet infrastructure. In process industries where continuous uptime is non-negotiable — refining, petrochemical, power generation, pulp and paper — thermal management of the DCS cabinet is a foundational element of system reliability. The FS-FANWR-24R delivers the redundant airflow capacity required to maintain safe operating temperatures across High-Performance Process Manager (HPPM), Application Module (AM), History Module (HM), and Gateway Module (GW) card cages, protecting decades of installed control logic from heat-induced degradation and unplanned shutdown.

As a genuine Honeywell original spare part, the FS-FANWR-24R is manufactured to the same dimensional, electrical, and airflow specifications as the unit installed at commissioning. This matters critically in legacy TDC 3000 environments where aftermarket substitutes may introduce vibration harmonics, incompatible connector pinouts, or insufficient static pressure to overcome the resistance of fully populated card cages. Sourcing an original replacement eliminates compatibility risk and preserves the thermal validation of the original cabinet design.

Every FS-FANWR-24R shipped from TOPNLMS undergoes pre-shipment functional verification including voltage draw measurement, bearing noise inspection, and airflow confirmation. Units are packaged in anti-static, shock-resistant materials suitable for international freight. A 12-month warranty covers all units against manufacturing defects, with documented test records available upon request for quality-assurance-sensitive procurement teams.

Critical Technical Specs

Preventive Maintenance Strategy for TDC 3000 Cabinet Thermal Systems

Experienced DCS maintenance engineers treat fan assembly replacement not as a reactive repair but as a scheduled lifecycle event. The FS-FANWR-24R fan bearings operate continuously in environments that may include airborne particulates, humidity cycling, and vibration from adjacent rotating equipment. Industry best practice recommends inspection every 12–18 months and proactive replacement every 3–5 years regardless of apparent condition, since bearing failure in a non-redundant fan position can cause cabinet overtemperature within minutes under full process load.

During a scheduled FS-FANWR-24R replacement, maintenance teams should treat the intervention as a broader cabinet health audit. The 24VDC fan power supply rail — typically sourced from the cabinet’s Honeywell MC-PDPY01 or equivalent 24VDC power distribution module — should be load-tested to confirm it can sustain the inrush current of a new fan motor without voltage sag. A degraded power supply delivering marginal voltage will shorten the service life of a new fan assembly significantly.

While the cabinet door is open, inspect the TDC 3000 UCN Highway Interface Module and associated coaxial UCN cable terminations for signs of heat discoloration or connector oxidation — symptoms that indicate the cabinet has experienced prior thermal excursions. Check the Honeywell AM (Application Module) card cage for dust accumulation on the card-edge connectors, as particulate buildup increases thermal resistance and accelerates processor temperature rise. A can of filtered compressed air and a soft ESD brush are sufficient for in-situ cleaning without card removal.

The Honeywell HPPM (High-Performance Process Manager) modules are particularly sensitive to sustained elevated temperatures. If the site historian shows any process alarms correlated with high ambient temperature periods, cross-reference with the HPPM diagnostic logs for memory parity errors or watchdog resets — early indicators of thermal stress before hard failure. Simultaneously, verify that the History Module (HM) disk subsystem is operating within its thermal envelope, as HM disk failures are frequently preceded by months of elevated cabinet temperature.

For cabinets housing Honeywell Gateway Modules (GW) interfacing to third-party systems via Modbus, PROFIBUS, or OPC, confirm that the communication module’s status LEDs show normal heartbeat after fan replacement and cabinet door closure. Thermal shock during a maintenance window can occasionally cause a GW module to latch into a fault state requiring a controlled power cycle.

Maintenance planners building a comprehensive TDC 3000 spare parts inventory should consider stocking alongside the FS-FANWR-24R: a spare 24VDC cabinet power supply module, at least one HPPM processor card, a set of MC-TAIH02 or equivalent I/O termination assemblies, spare UCN coaxial cable segments and BNC terminators, and a Honeywell FTA (Field Termination Assembly) matched to the site’s predominant I/O type. This kit approach ensures that a single maintenance visit can address the most common failure modes without a second parts-sourcing cycle.

Strategic Replacement Solutions for Legacy TDC 3000 Systems

The TDC 3000 platform has an installed base spanning more than four decades, and many sites operate systems that Honeywell has formally transitioned to limited or end-of-life support. In this environment, the availability of original spare parts like the FS-FANWR-24R is a strategic asset, not merely a maintenance line item. A single unplanned DCS cabinet shutdown in a continuous process plant can cost tens of thousands of dollars per hour in lost production, emergency contractor fees, and product quality losses.

The FS-FANWR-24R is a direct form-fit-function replacement for the original fan assembly installed in TDC 3000 cabinets at commissioning. No firmware changes, no configuration modifications, and no recalibration are required. Technicians can complete a hot-swap replacement — where the redundant fan architecture permits — in under 15 minutes with standard hand tools, minimizing process disruption. For sites that cannot tolerate even brief airflow reduction, maintaining a pre-staged spare in the instrument room eliminates the sourcing delay entirely.

For plants executing a phased migration from TDC 3000 to Experion PKS or a third-party DCS, maintaining thermal stability of the legacy system during the transition period is critical. A failed fan assembly during a migration window can force an unplanned cutover or rollback, compressing project timelines and inflating costs. Stocking the FS-FANWR-24R as a bridge-period spare is a low-cost insurance policy against this scenario.

TOPNLMS sources FS-FANWR-24R units through verified industrial surplus and authorized distribution channels. Each unit is individually tested, serialized, and documented before shipment. Export compliance documentation, material safety data, and country-of-origin certificates are available for procurement teams with regulatory requirements.
