Honeywell 10208/2/1 Replacement for FSC Safety Manager SIS

Product Overview

Honeywell 10208/2/1 Replacement for FSC Safety Manager SIS: Seamless Transition from Legacy Relay Output Architecture

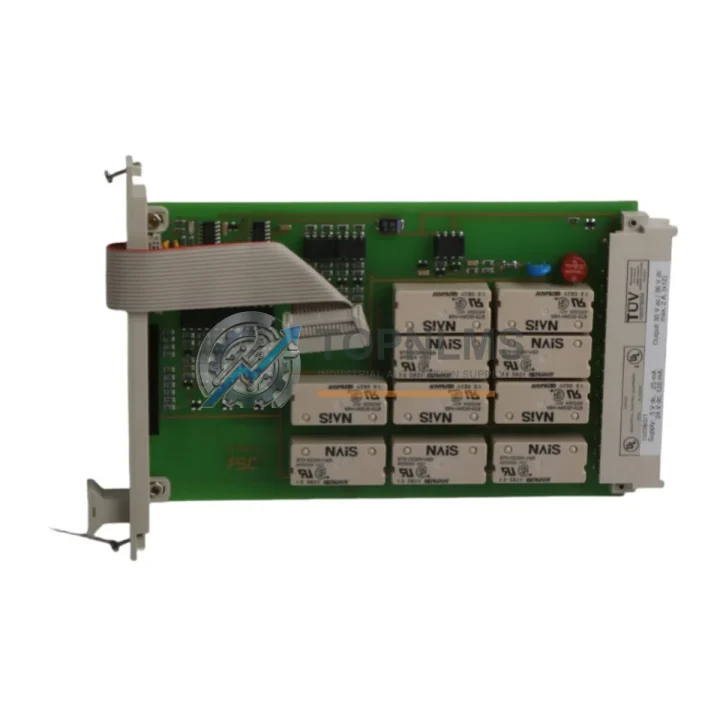

The Honeywell 10208/2/1 is a Relay Output Module designed for the Honeywell FSC (Fail Safe Controller) Safety Manager platform — a widely deployed Safety Instrumented System (SIS) used across oil & gas, petrochemical, power generation, and process industries. As FSC Safety Manager installations age and original hardware reaches end-of-life or becomes increasingly difficult to source, plant engineers and procurement teams face mounting pressure to maintain SIL-rated loop integrity without triggering a full system overhaul.

TOPNLMS supplies the Honeywell 10208/2/1 Relay Output Module as a direct replacement and upgrade solution for existing FSC Safety Manager racks. Our inventory is sourced from authorized channels, fully tested prior to shipment, and backed by a 12-month warranty — giving your maintenance and reliability teams the confidence to execute a controlled, low-risk swap during planned turnarounds or emergency shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful FSC Safety Manager relay output replacement rarely involves a single module in isolation. In practice, plant engineers executing a controlled migration or emergency swap will also need to verify the condition and availability of adjacent system components. During the replacement of the 10208/2/1, it is common to simultaneously audit or replace the FSC rack backplane (10001/x/x series), which provides the internal bus connectivity and power distribution for all installed I/O modules. If the rack itself shows signs of corrosion or contact wear, replacing it alongside the relay output module eliminates a secondary failure point.

The FSC Digital Input Modules (10205/x/x series) and Analog Input Modules (10206/x/x series) installed in the same rack should be inspected for firmware revision compatibility, particularly if the 10208/2/1 being replaced is from an older hardware generation. In multi-rack FSC configurations, the FSC Communication Module (10002/x/x) handles inter-rack data exchange and must remain at a compatible firmware level to ensure the relay output module’s status reporting is correctly received by the FSC Safety Manager controller.

For sites where the FSC Safety Manager interfaces with a Distributed Control System (DCS) — such as Honeywell Experion PKS or a third-party DCS via Modbus RTU or PROFIBUS DP — the FSC Gateway Module or serial communication interface card should be verified for compatibility with the replacement module’s diagnostic reporting. Field wiring from the 10208/2/1 relay outputs typically connects to solenoid valve terminal blocks, motor control relay panels, or ESD (Emergency Shutdown) actuator circuits; these terminal assemblies should be inspected for insulation integrity before the new module is energized.

Sites running Honeywell Safety Manager SC (the successor platform) may be evaluating a phased migration from FSC to SM SC architecture. In this scenario, the 10208/2/1 serves as a bridge solution — maintaining SIL loop integrity on the legacy FSC rack while the broader migration project is planned and budgeted. Complementary components in this migration path include the SM SC I/O modules, SM SC controller chassis, and the FSC-to-SM SC migration toolkit provided by Honeywell’s lifecycle services team. TOPNLMS can supply FSC spare parts to support this phased approach, ensuring your legacy system remains operational throughout the transition window.

Additionally, for sites requiring signal conditioning between the FSC relay outputs and field devices with non-standard voltage requirements, DIN-rail mounted signal isolators and relay interface modules are commonly installed in the same control cabinet. These components do not require modification when the 10208/2/1 is replaced, as the relay contact output characteristics remain identical.

Retrofit Guidance FAQ

Q: Does replacing the 10208/2/1 require changes to the FSC application program?
A: No. The 10208/2/1 is a hardware-level drop-in replacement. The FSC Safety Manager application logic, function block assignments, and I/O channel mapping remain unchanged. No re-download or re-validation of the safety application is required solely due to the module swap, though your site’s Management of Change (MOC) procedure should be followed.

Q: Is field wiring re-termination necessary?
A: No re-termination is required. The 10208/2/1 uses the same terminal connector and pin assignment as the module it replaces. Existing field cables can be reconnected directly to the replacement module without modification.

Q: What communication protocol does the 10208/2/1 use?
A: The module communicates via the FSC internal backplane bus — a proprietary Honeywell protocol. There is no external fieldbus configuration required. The FSC controller automatically recognizes the replacement module upon rack power-up.

Q: Will the replacement module fit in the existing FSC rack without cabinet modification?
A: Yes. The 10208/2/1 conforms to the standard FSC module form factor and slots directly into any compatible FSC rack position. No additional DIN rail space, mounting hardware, or cabinet cutouts are needed.

Q: How should the replacement be handled during a live plant shutdown?
A: The FSC Safety Manager supports hot-standby and redundant configurations on certain rack types. For non-redundant relay output positions, the affected SIL loop should be bypassed per your site’s bypass management procedure before the module is removed. The replacement module should be inserted, verified for correct seating, and the bypass cleared after functional testing confirms correct relay operation.

Q: What if the exact revision of the 10208/2/1 differs from the installed unit?
A: Minor hardware revisions within the 10208/2/1 family are generally backward compatible at the FSC rack level. TOPNLMS will confirm the hardware revision of the supplied unit prior to shipment upon request, allowing your engineering team to verify compatibility against the installed FSC system revision.

Warranty Assurance

Every Honeywell 10208/2/1 Relay Output Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify relay contact operation, backplane connector integrity, and module identification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for safety-critical applications. Our after-sales response team is reachable via email and phone, with typical response times within one business day. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions consistent with the FSC Safety Manager platform specifications.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Express shipping options are available for emergency plant shutdowns, with dispatch from our Xiamen warehouse typically within 24–48 hours of order confirmation.

For volume orders, long-term supply agreements, or technical pre-sales consultation, contact our team directly.
