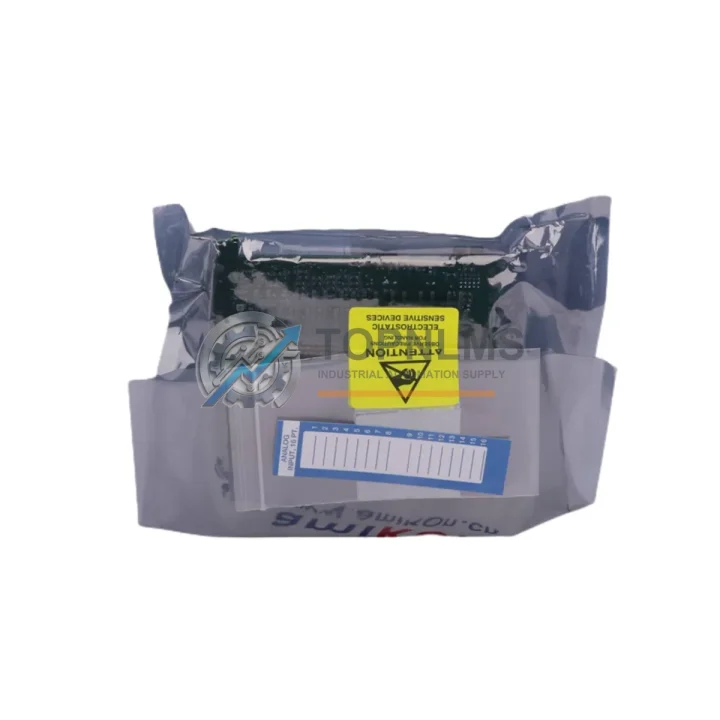

Honeywell 900A16-0101 Ruggedized Analog Input Module for Harsh Environments

Product Overview

Honeywell 900A16-0101 Ruggedized Analog Input Module for Harsh Environments

The Honeywell 900A16-0101 is a 16-channel analog input module engineered for the HC900 Hybrid Controller platform — a field-proven distributed control architecture widely deployed across oil & gas, power generation, water treatment, metallurgy, and heavy process industries. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 900A16-0101 delivers the signal acquisition accuracy and system stability that safety-critical production lines demand.

In continuous manufacturing environments where even a momentary signal dropout can trigger costly shutdowns or safety incidents, the 900A16-0101 provides the measurement integrity that process engineers rely on. Its 16 independently configurable analog input channels accept standard industrial signal types — including 4–20 mA current loops and thermocouple/RTD inputs depending on configuration — enabling dense I/O consolidation within a single module footprint. This reduces panel wiring complexity, minimizes potential failure points, and simplifies cabinet layout in space-constrained control rooms.

The module integrates seamlessly into the HC900 backplane alongside companion modules such as the Honeywell 900C52S-0243 HC900 Controller, 900B08-0101 analog output modules, and 900G32-0101 digital I/O modules, forming a cohesive, high-availability control node. When paired with the 900RIO-0001 Remote I/O expander, the 900A16-0101 supports distributed field installations where sensors are located far from the main control cabinet — a common requirement in pipeline monitoring, tank farm automation, and substation control applications.

In harsh industrial environments, signal integrity is non-negotiable. The 900A16-0101 incorporates hardware-level EMI filtering and galvanic isolation on its input channels, protecting measurement accuracy against the high-frequency noise generated by variable frequency drives (VFDs), motor starters, and high-current bus bars that are common in heavy industry. This makes it a reliable companion to Honeywell HC900 power supply modules and 900P01-0001 redundant power units, ensuring that the analog front-end remains stable even when the electrical environment is hostile.

For safety-instrumented systems and process protection applications, the 900A16-0101 is frequently deployed alongside Honeywell Safety Manager safety controllers and FSC (Fail-Safe Controller) modules, where it provides the process variable inputs needed for SIL-rated interlock logic. Its deterministic scan cycle and hardware watchdog behavior align with the requirements of IEC 61511 process safety management, making it a trusted component in burner management systems, emergency shutdown (ESD) panels, and high-integrity pressure protection systems (HIPPS).

Communication continuity is maintained through the HC900’s integrated Ethernet and RS-485 Modbus infrastructure. The 900A16-0101 participates in the controller’s unified data highway, making all 16 channel values available to SCADA systems, historian servers, and HMI platforms without additional protocol conversion hardware. This interoperability is critical in facilities running Honeywell Experion PKS distributed control systems, where the HC900 acts as a remote process controller feeding live analog data upstream to the enterprise control layer.

Replacement and spare-part procurement decisions for the 900A16-0101 are straightforward: the module is backward-compatible with all HC900 chassis generations, requires no firmware re-flashing upon hot-swap replacement, and can be configured via the Honeywell HC900 Designer software without taking the controller offline. This minimizes mean time to repair (MTTR) in facilities where unplanned downtime carries significant financial and safety consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The 900A16-0101 is most effective when deployed as part of a fully integrated HC900 control node. In a typical heavy-industry control cabinet, it operates alongside the Honeywell 900C52S-0243 dual-redundant controller module, which provides the processing backbone for the entire HC900 rack. Analog output commands are issued through the 900B08-0101 8-channel analog output module, closing the control loop between field sensors and final control elements such as control valves and variable speed drives.

Digital interlock signals — emergency stops, limit switches, and valve position feedbacks — are handled by the 900G32-0101 32-channel digital I/O module, which shares the same backplane and participates in the same scan cycle as the 900A16-0101. Cabinet power integrity is maintained by the 900P01-0001 redundant power supply module, which provides N+1 power redundancy and protects the entire rack against single-point power failures.

For installations requiring communication with third-party SCADA platforms or legacy DCS systems, the Honeywell 900CS-0001 communication module enables Modbus TCP/IP and serial Modbus RTU connectivity, allowing the 900A16-0101’s channel data to be polled by external supervisory systems without burdening the primary controller Ethernet port. In remote field installations, the 900RIO-0001 Remote I/O module extends the HC900 I/O bus over fiber or copper to satellite panels located up to several hundred meters from the main control room.

Safety relay modules and Honeywell SIL-rated safety barriers are commonly installed upstream of the 900A16-0101’s input terminals in hazardous area applications, ensuring that intrinsically safe signal levels are maintained when field instruments are located in Zone 1 or Zone 2 classified areas. Terminal blocks from the Honeywell TB series provide the field wiring interface, with clearly labeled, screw-clamp terminations that simplify commissioning and reduce wiring errors during maintenance.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 900A16-0101 is deployed in wellhead control panels, compressor station automation, and pipeline SCADA outstations. Its ability to accept thermocouple and RTD inputs makes it ideal for monitoring compressor discharge temperatures, heat exchanger outlet conditions, and separator vessel temperatures — all of which are critical process variables for safe and efficient hydrocarbon processing.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the module provides the analog front-end for boiler drum level control, turbine exhaust temperature monitoring, and generator cooling system supervision. Its EMI immunity is particularly valuable in generator halls, where high-current bus bars and large rotating machines create intense electromagnetic environments that can corrupt signals in lesser-equipped I/O modules.

In water and wastewater treatment plants, the 900A16-0101 monitors flow rates, pH levels, dissolved oxygen concentrations, and chemical dosing pump outputs across multiple treatment stages. Its 16-channel density allows a single module to cover an entire treatment train, reducing the number of I/O racks required and simplifying system architecture in facilities where panel space is limited.

In metallurgical and mining operations, the module withstands the high-vibration, high-dust environments of ore processing plants, smelters, and rolling mills. It monitors furnace temperatures, conveyor belt load cells, and hydraulic system pressures — providing the real-time process data that operators need to maintain product quality and prevent equipment damage in continuous, high-throughput production environments.
