Honeywell CC-PAIM01 51405045-175 Original Industrial Spare Experion PKS

Product Overview

Honeywell CC-PAIM01 51405045-175 Original Industrial Spare Experion PKS: System Stability & Maintenance Value

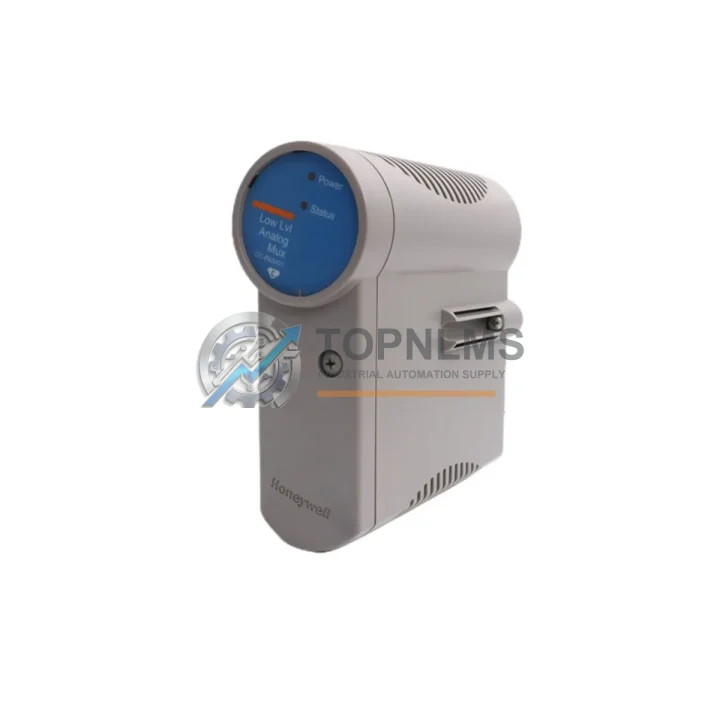

The Honeywell CC-PAIM01 (part number 51405045-175) is an original analog multiplexed input module engineered for the Honeywell Experion PKS (Process Knowledge System) distributed control system. In process-critical environments — refining, petrochemical, power generation, pulp and paper, and pharmaceutical manufacturing — this module serves as a foundational I/O component responsible for acquiring analog field signals and delivering them reliably to the controller layer. Maintaining a verified spare of the CC-PAIM01 is not optional for facilities running Experion PKS; it is a core element of any responsible spare parts strategy.

When a CC-PAIM01 fails in service, the consequences extend well beyond the module itself. Analog input channels go dark, process variables become unavailable to the controller, and operators lose visibility into critical loop parameters. In tightly integrated DCS architectures, a single failed I/O module can cascade into loop shutdowns, safety system interventions, or unplanned production halts. Having a tested, ready-to-install CC-PAIM01 51405045-175 on the shelf eliminates the most dangerous variable in that scenario: procurement lead time.

Critical Technical Specs

Preventive Maintenance Strategy

The CC-PAIM01 does not operate in isolation. It is one node in a tightly coupled I/O subsystem, and a disciplined preventive maintenance program must account for the entire signal chain — from field instrument to controller. When scheduling a planned inspection or replacement of the CC-PAIM01, maintenance engineers should simultaneously audit the associated CC-IOLIM01 I/O Link Interface Module, which provides the communication bridge between the PAIM and the C200/C300 controller. A degraded IOLIM can produce intermittent channel faults that are frequently misdiagnosed as PAIM failures, wasting both time and replacement modules.

Field wiring integrity is equally critical. The CC-TAIX11 and CC-TAIX51 analog input terminal assemblies that mate with the PAIM carrier should be inspected for terminal corrosion, loose screw connections, and shield grounding continuity during any PAIM replacement event. Corroded terminals introduce offset errors and noise into analog readings, undermining the accuracy of the new module before it ever enters service.

Power quality at the chassis level directly affects PAIM performance. The CC-PWR01 and CC-PWR02 power supply modules feeding the I/O chassis should be load-tested and their output voltages verified within specification. An aging or undersized power supply is a common root cause of unexplained I/O module resets and communication timeouts. Stocking a spare power supply module alongside the CC-PAIM01 is a low-cost insurance policy against extended downtime.

For facilities running redundant Experion PKS architectures, the CC-PAIM01 is typically deployed in redundant pairs managed through the IOLIM redundancy framework. During a planned maintenance window, both the primary and secondary PAIM modules should be inspected and their firmware versions verified for consistency. A firmware mismatch between redundant modules can cause unexpected failover behavior during process upsets.

Backplane and chassis integrity should not be overlooked. The CC-PCNT01 process controller node chassis and associated backplane connectors should be visually inspected for pin damage, contamination, and secure module seating. A partially seated CC-PAIM01 will produce erratic channel behavior that is difficult to distinguish from a module fault without physical inspection.

Signal conditioning upstream of the PAIM also warrants attention. Where signal isolators or barriers are installed between field instruments and the PAIM terminal assembly — particularly in hazardous area installations — these devices should be tested for loop integrity and isolation resistance. Degraded isolators introduce ground loops that corrupt analog readings across multiple channels simultaneously.

Finally, facilities managing aging Experion PKS installations should maintain a consolidated spare parts kit that includes the CC-PAIM01, the IOLIM, at least one power supply module, a set of terminal assemblies, and the associated FTE network switch modules that support the Fault Tolerant Ethernet backbone. A single missing component in that kit can extend a planned two-hour replacement into a multi-day procurement emergency.

Strategic Replacement Solutions

The CC-PAIM01 51405045-175 has been in service across Experion PKS installations for over a decade, and many facilities are now encountering end-of-life challenges as Honeywell transitions support resources toward newer platform generations. The strategic value of sourcing original CC-PAIM01 modules from verified industrial spare parts suppliers lies in the ability to extend the operational life of existing Experion PKS installations without undertaking a full DCS migration — a project that typically requires years of planning and millions in capital expenditure.

Original CC-PAIM01 modules sourced from reputable suppliers are fully compatible with existing Experion PKS configurations, requiring no firmware changes, no reconfiguration of the Control Builder engineering environment, and no modification to existing I/O assignments. The replacement module slots into the existing carrier, the system performs automatic module recognition, and the channel assignments are restored from the controller database — a process that experienced Honeywell engineers can complete in under thirty minutes under normal conditions.

For facilities managing multiple Experion PKS nodes across a large plant, a centralized spare parts strategy that maintains at least one CC-PAIM01 per I/O chassis cluster significantly reduces the mean time to repair (MTTR) for analog input faults. When combined with a documented replacement procedure and trained maintenance personnel, this approach can reduce analog I/O-related downtime events from days to hours — a measurable improvement in overall equipment effectiveness (OEE).

Support FAQ

Q1: Is the CC-PAIM01 51405045-175 compatible with all Experion PKS controller versions?
The CC-PAIM01 is designed for use with Honeywell Experion PKS C200 and C300 series controllers via the IOLIM interface. Compatibility with specific firmware revisions of the controller and IOLIM should be verified against the Honeywell Experion PKS I/O Module Compatibility Matrix prior to installation. We recommend confirming your controller firmware version before ordering if you are operating a mixed-revision system.

Q2: What testing is performed before shipment?
All CC-PAIM01 modules shipped from our inventory undergo functional verification including power-on self-test confirmation, visual inspection for physical damage, and connector integrity checks. Modules are shipped in anti-static packaging with individual test documentation. The 12-month warranty covers functional defects identified after installation under normal operating conditions.

Q3: How should I manage CC-PAIM01 spare parts inventory for a large Experion PKS installation?
For installations with 10 or more PAIM modules in service, industry best practice recommends maintaining a minimum of 10% spare coverage — typically one spare per ten installed modules, with a floor of two spares regardless of installation size. Modules in long-term storage should be kept in climate-controlled environments and rotated into service periodically to prevent connector oxidation and capacitor aging.

Q4: What is the lead time for out-of-stock units, and can I verify compatibility before purchase?
In-stock units ship within 1–3 business days. For out-of-stock inquiries, lead times vary based on current market availability and are confirmed at the time of order. Compatibility verification support is available via email or phone prior to purchase — contact our technical team with your controller model, IOLIM firmware version, and current I/O configuration for a pre-sale compatibility assessment.
