Honeywell 51405039-175 CC-PA0H01 Replacement for C300 DCS

Product Overview

Honeywell 51405039-175 CC-PA0H01 Replacement for C300 DCS: Seamless Transition & Legacy System Upgrade

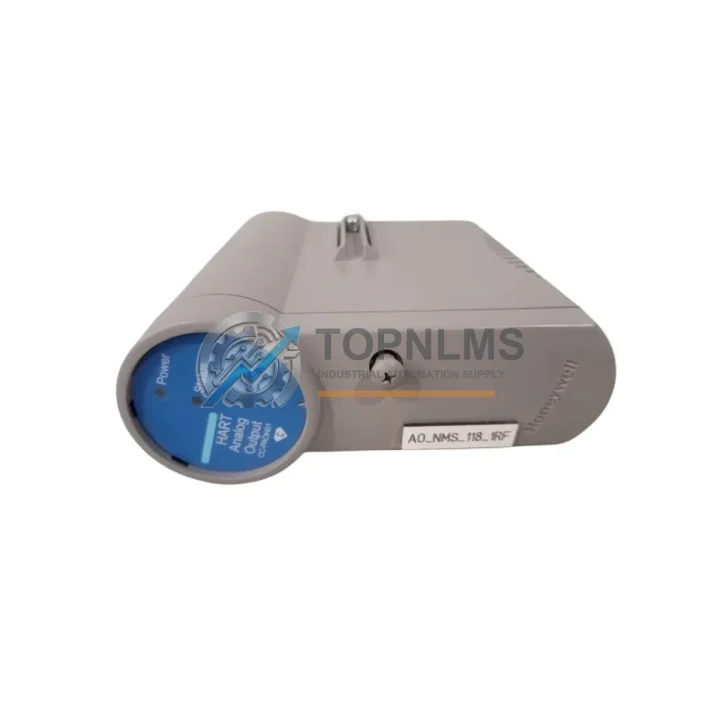

The Honeywell 51405039-175 CC-PA0H01 is an 8-channel analog output module engineered for the Experion PKS C300 Distributed Control System (DCS). As Honeywell progressively phases out legacy I/O hardware, many facilities running C300-based control architectures face urgent pressure to source verified replacement modules that maintain full backward compatibility with existing wiring, cabinet layouts, and control strategies. This listing provides a tested, ready-to-ship solution for engineers and procurement teams managing planned or emergency replacements of the CC-PA0H01 in active production environments.

Whether your plant is executing a phased migration from an older TDC 3000 or PlantScape system to the Experion PKS platform, or simply replacing a failed module in an existing C300 rack, the 51405039-175 integrates directly into the C300 I/O chassis without requiring changes to field wiring, marshalling cabinets, or controller logic. The module outputs 4–20 mA signals across all 8 channels, compatible with standard field instruments including control valves, positioners, and variable-speed drives already wired to your existing terminal blocks.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or within the Experion PKS C300 platform rarely involves a single module swap. In practice, the CC-PA0H01 analog output module operates as part of a coordinated I/O subsystem. During retrofit projects, engineers commonly replace or verify the condition of the CC-IP0101 Analog Input Module installed in adjacent slots of the same C300 I/O carrier, ensuring that both input and output signal chains are refreshed simultaneously to eliminate latent failure risk.

The C300 controller itself — the CC-PCF901 C300 Process Controller — serves as the supervisory node managing all I/O modules on the local I/O Link. When upgrading aging I/O hardware, it is best practice to confirm that the controller firmware is current and that the CC-TCF901 C300 Controller Termination Assembly is in serviceable condition, as worn termination assemblies are a common source of intermittent communication faults that can be misdiagnosed as module failures.

For facilities transitioning from older Honeywell systems, the CC-TAIX11 Analog Input Termination Assembly and CC-TAOX11 Analog Output Termination Assembly provide the physical interface between the I/O module and field wiring. Reusing these termination assemblies during a module swap eliminates the need to re-terminate field cables, dramatically reducing installation time and the risk of wiring errors during live-plant maintenance windows.

Communication integrity across the C300 architecture depends on the FTE (Fault Tolerant Ethernet) network infrastructure. During system upgrades, the CC-ESMT01 Ethernet Switch Module installed in the control cabinet should be inspected and replaced if it shows signs of age-related degradation, as network instability at the switch level can cause spurious I/O faults across all connected modules including the CC-PA0H01.

For plants that also operate Honeywell Safety Manager or FSC (Fail Safe Controller) systems in the same facility, coordinating the C300 I/O upgrade schedule with any planned FSC module replacements — such as the 10006/1/1 Digital Output Module — ensures that both safety and process control layers are refreshed within the same maintenance outage, minimizing total plant downtime.

Finally, where the C300 system interfaces with third-party field devices via HART or FOUNDATION Fieldbus, verifying the compatibility of the CC-PDOB01 Digital Output Module and associated multiplexers in the same upgrade cycle ensures end-to-end signal integrity from the controller to the final control element.

Retrofit Guidance FAQ

Q: Can I replace the CC-PA0H01 without modifying field wiring?
A: Yes. The 51405039-175 CC-PA0H01 uses the same termination assembly footprint as the original module. If the CC-TAOX11 termination assembly is already installed and in good condition, the module swap requires no field wiring changes. Simply power down the I/O carrier, remove the old module, insert the replacement, and restore power.

Q: Do I need to reload the control strategy after replacing the module?
A: In most cases, no. The C300 controller retains the I/O configuration in its memory. After the module is reseated and the I/O Link re-establishes communication, the controller will automatically re-associate the channel assignments. A forced download is only required if the module address or channel configuration has changed.

Q: Is the CC-PA0H01 compatible with HART-enabled field devices?
A: The standard 51405039-175 CC-PA0H01 supports 4–20 mA output. HART pass-through capability depends on the specific firmware revision and system configuration. Consult your Experion PKS system documentation or contact our technical team to confirm HART support for your specific installation.

Q: What communication protocol does this module use?
A: The CC-PA0H01 communicates via the C300 I/O Link, which is managed by the C300 Process Controller over the FTE (Fault Tolerant Ethernet) network. No additional fieldbus configuration is required for standard analog output operation.

Q: Will this module fit in my existing C300 I/O cabinet without physical modification?
A: Yes. The CC-PA0H01 occupies a standard C300 I/O carrier slot. No cabinet rework, DIN rail modification, or additional mounting hardware is required. The module’s physical dimensions and connector interface are identical to the original, ensuring a direct mechanical fit.

Q: What if my system is migrating from TDC 3000 or PlantScape?
A: A full platform migration from TDC 3000 or PlantScape to Experion PKS C300 requires new I/O carriers, termination assemblies, and controller hardware in addition to the I/O modules. The CC-PA0H01 is the correct analog output module for the destination C300 architecture. Our team can assist with bill-of-materials review for complete migration projects.

Warranty Assurance

Every Honeywell 51405039-175 CC-PA0H01 shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing, channel output verification, and communication interface checks to confirm the module meets original Honeywell performance specifications.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever resolution best suits your operational timeline. Our after-sales response target is within 24 business hours of a warranty claim submission. We understand that unplanned downtime in process control environments carries significant operational cost, and our fulfillment process is structured to prioritize rapid dispatch for replacement orders.

Stock is maintained in Xiamen, China, with express international shipping available to most destinations. Standard lead time for in-stock modules is 3–5 business days to major industrial hubs in Southeast Asia, the Middle East, and Europe. Expedited air freight options are available for emergency replacement scenarios.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. All modules are shipped in anti-static packaging with appropriate export markings for customs clearance.

To place an order, request a quotation, or discuss a multi-module migration project, contact our technical sales team directly.
