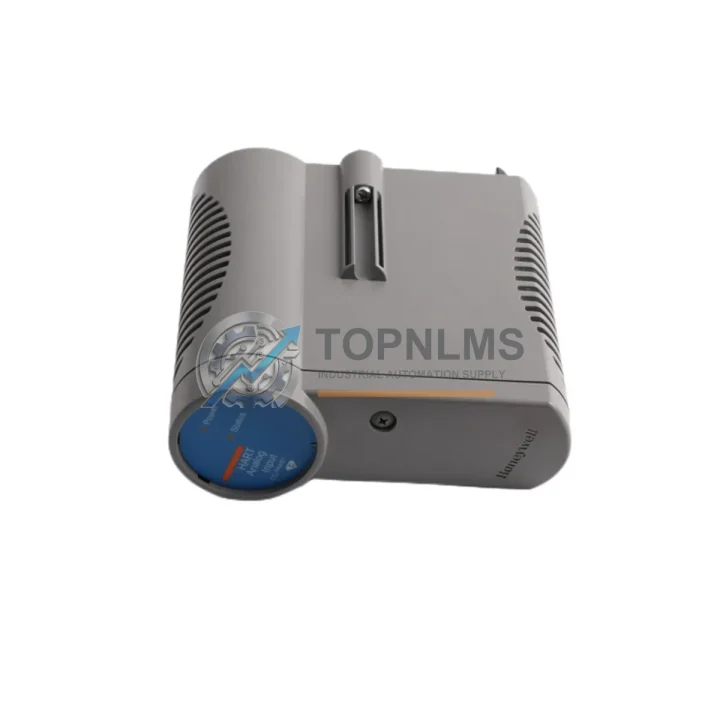

Honeywell 51405038-175 CC-PAIH01 Replacement for Experion PKS

Product Overview

Honeywell 51405038-175 CC-PAIH01 Replacement for Experion PKS Series C: Seamless Transition & Legacy System Upgrade

When your Honeywell Experion PKS distributed control system relies on the CC-PAIH01 (51405038-175) 8-channel analog input module and that module reaches end-of-life, unplanned downtime becomes your most immediate risk. TOPNLMS supplies verified replacement and upgrade units for the Honeywell 51405038-175 CC-PAIH01, enabling control engineers and procurement teams to restore system integrity without redesigning the control architecture, rewiring field terminations, or rewriting application logic.

The CC-PAIH01 is a high-density analog input module designed for the Experion PKS Series C platform. It accepts 8 channels of 4–20 mA or 1–5 V analog signals, interfaces directly with the Series C I/O Link, and mounts into the standard C300 controller chassis or remote I/O enclosure. Our replacement units are sourced from authorized distribution channels, undergo incoming inspection, and ship with a 12-month warranty covering manufacturing defects and functional failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failed or end-of-life CC-PAIH01 rarely involves a single component. In practice, control engineers working on Experion PKS Series C systems encounter a broader set of interdependent hardware that must be evaluated during the replacement process.

The CC-PAIH01 connects to the field through a dedicated Field Termination Assembly (FTA) — typically the CC-TAIX11 or CC-TAIX51 terminal block assembly. If the FTA shows signs of corrosion, loose terminals, or mechanical damage, replacing it alongside the analog input module eliminates a secondary failure point and avoids a return visit. The FTA mounts in the same marshalling cabinet and uses the same screw-terminal layout, so field wiring remains undisturbed.

For sites running mixed I/O configurations, the CC-PDOB01 digital output module and CC-PDIL01 digital input module share the same Series C chassis slots and I/O Link architecture. If your upgrade scope includes a full I/O card refresh — common during a planned shutdown — sourcing these modules together reduces logistics complexity and ensures consistent firmware revision levels across the rack.

Communication between the C300 controller and the I/O subsystem depends on the C300 Controller Module itself remaining healthy. Sites that have deferred C300 maintenance while replacing I/O cards should verify the controller’s firmware version and battery status. In some cases, a CC-PCF901 power filter or CC-PWR024 24 VDC power supply module replacement is warranted when aging power infrastructure is identified as a contributing factor to analog signal drift or module resets.

For remote I/O cabinets connected over Fault Tolerant Ethernet (FTE), the IOLIM (I/O Link Interface Module) serves as the bridge between the Ethernet backbone and the Series C I/O bus. If the IOLIM is running an outdated firmware version or shows intermittent link faults, upgrading it in parallel with the CC-PAIH01 replacement prevents the new module from being masked by upstream communication errors during commissioning.

Sites transitioning from older TDC 3000 or PlantScape architectures to Experion PKS often encounter legacy HPM (High-Performance Process Manager) I/O cards that are no longer supported. The CC-PAIH01 is a natural migration target for 4–20 mA analog loops previously served by HPM analog input cards, and the migration can be executed loop-by-loop during scheduled maintenance windows without a full system cutover.

Finally, for sites requiring signal conditioning between field instruments and the CC-PAIH01 — particularly where intrinsic safety barriers or HART signal isolators are installed — verifying that the isolator output range matches the module’s input specification (4–20 mA into 250 Ω) is a critical pre-commissioning step. TOPNLMS can advise on compatible signal isolator models upon request.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the CC-PAIH01?
No. The replacement module uses the same Field Termination Assembly (FTA) connector and pinout as the original. Field cables terminate at the FTA, not directly at the module, so no rewiring is required. Simply disconnect the FTA cable from the old module, seat the replacement module in the chassis slot, and reconnect the FTA cable.

Q: Will my existing Experion PKS control strategy (application logic) require modification?
No. The CC-PAIH01 replacement is recognized by the Experion PKS server using the same hardware tag and I/O address. Provided the replacement module carries the same part number and revision compatibility, the control strategy loads without modification. A channel-by-channel I/O verification scan is recommended after installation as standard commissioning practice.

Q: Is the replacement module compatible with HART pass-through communication?
The CC-PAIH01 supports HART protocol pass-through on each analog input channel, allowing field device diagnostics and configuration via the Experion PKS HART Device Manager. The replacement unit maintains this capability. Verify that your FTE network and server configuration have HART multiplexer services enabled if HART communication was previously active.

Q: What is the physical installation space requirement?
The CC-PAIH01 occupies a single standard Series C module slot in the C300 chassis or remote I/O enclosure. No additional brackets, spacers, or DIN rail adapters are required. The module slides into the slot and locks with the standard Series C retention latch.

Q: Can this module be used as a hot-standby spare?
Yes. The Experion PKS Series C platform supports redundant I/O configurations. A spare CC-PAIH01 can be held in inventory and swapped during a maintenance window with minimal downtime. TOPNLMS recommends maintaining at least one spare per critical analog input rack to support rapid field replacement.

Q: What commissioning steps are required after installation?
After physical installation, perform the following: (1) Power cycle the chassis or use the Experion PKS server to perform a module reset; (2) Verify module status in the Experion PKS Station display — the module should report “OK” within 60 seconds; (3) Perform a loop check on each of the 8 analog input channels using a calibrated 4–20 mA source; (4) Confirm HART device recognition if applicable; (5) Document the replacement in the site maintenance log.

Warranty Assurance

Every Honeywell 51405038-175 CC-PAIH01 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units confirmed by incoming inspection at the customer’s site.

Pre-shipment testing: Each unit undergoes a functional verification check prior to dispatch, including power-on self-test confirmation and visual inspection for physical damage, bent connector pins, and component integrity.

Replacement support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 3–5 business days of claim confirmation. Customers are not required to return the defective unit before the replacement ships for orders with documented site urgency.

After-sales response: Our technical support team responds to warranty inquiries within 24 hours on business days. For urgent plant-down situations, priority handling is available — contact us directly at [email protected] or call +86 18359293191.

Procurement assurance: TOPNLMS maintains stock of the CC-PAIH01 and related Experion PKS Series C modules to support both planned maintenance schedules and emergency replacement requirements. Lead times, stock availability, and volume pricing are available upon request.
