Honeywell 51304690-100 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51304690-100 Original Industrial Spare TDC 3000 Compatible: System Stability and Industrial Spare Parts Maintenance Value

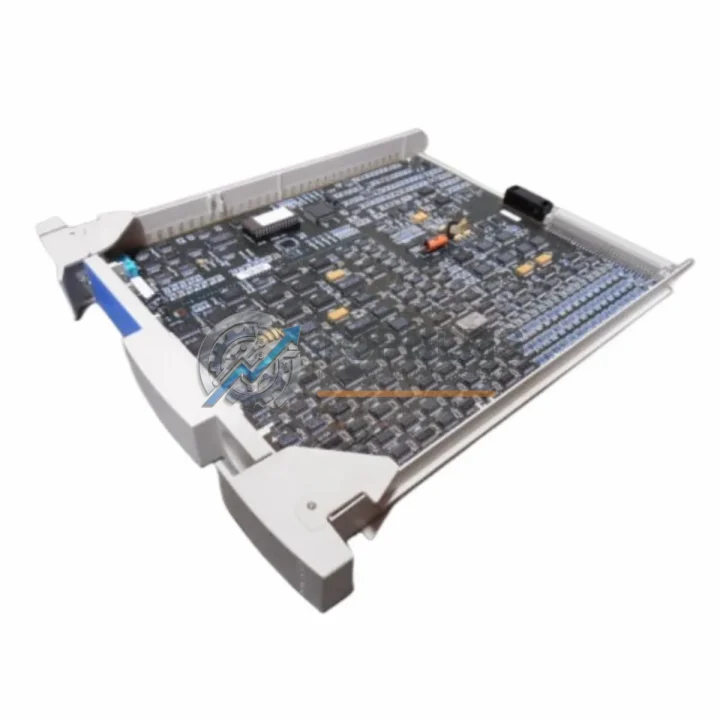

The Honeywell 51304690-100 is an original SOE (Sequence of Events) Digital Input Card designed for the Honeywell TDC 3000 Distributed Control System — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process manufacturing. As aging TDC 3000 systems remain operational across global facilities, maintaining a reliable inventory of original spare modules like the 51304690-100 is a cornerstone of any responsible maintenance strategy.

This module captures and time-stamps discrete digital input events with millisecond resolution, enabling operators and engineers to reconstruct the precise sequence of events during process upsets, emergency shutdowns, or equipment trips. Its role in post-incident analysis, regulatory compliance, and root-cause investigation makes it a mission-critical component — not a commodity spare. Downtime caused by a failed SOE card can delay restart decisions, compromise safety reviews, and extend unplanned outages far beyond what a stocked spare would have cost.

Critical Technical Specs Table

Preventive Maintenance Strategy

A TDC 3000 system is only as reliable as its weakest module. When scheduling a planned shutdown or conducting a cabinet inspection, the 51304690-100 SOE Digital Input Card should be evaluated alongside the broader I/O subsystem. Engineers performing preventive maintenance on TDC 3000 installations routinely inspect the 51304485-100 Digital Input Module and 51304485-200 Digital Output Module in the same I/O carrier, since these cards share the same backplane power distribution and field wiring terminations. A fault in one card often indicates thermal stress or connector wear affecting adjacent slots.

Power integrity is equally critical. The 51401288-100 Power Supply Module and associated 51109684-100 Power Distribution Panel should be inspected for capacitor aging, output voltage drift, and cooling fan condition during any SOE card replacement. An unstable power rail is a leading cause of intermittent digital input faults that are frequently misdiagnosed as card failures.

Field wiring terminations deserve attention as well. The 51304441-100 Field Termination Assembly (FTA) connects field devices to the I/O cards via marshalling cabinets. Corroded terminals, loose screw connections, or degraded cable insulation at the FTA level can cause false SOE events or missed transitions — symptoms that appear to originate in the 51304690-100 but are actually wiring faults. Inspecting and, where necessary, replacing the FTA during a card swap eliminates this diagnostic ambiguity.

For facilities running long cable runs between the DCS cabinet and field junction boxes, signal isolators and surge protection modules installed on the input channels protect the SOE card from transient voltages induced by nearby motor starters, VFDs, or switching equipment. These are often overlooked during routine maintenance but are a cost-effective way to extend the service life of digital input cards.

Communication infrastructure should not be neglected. The 51304362-100 Data Hiway Interface Module and 51304362-200 Local Control Network (LCN) Interface Card govern how SOE data is transmitted to the operator console and historian. If these communication modules are aging, timestamped event data may be delayed or lost — undermining the entire value of the SOE card. Proactive replacement of communication modules during a planned outage prevents this failure mode.

Finally, for facilities managing multiple TDC 3000 cabinets, maintaining a small buffer stock of 51198685-100 Universal I/O Cards and 51304453-100 Analog Input Modules alongside the 51304690-100 provides a comprehensive first-response spare kit. This approach minimizes diagnostic time during unplanned outages — technicians can swap candidate modules quickly rather than waiting for emergency procurement.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform has been in service for decades, and while Honeywell has transitioned its primary DCS offering to the Experion PKS platform, thousands of TDC 3000 systems remain in active production worldwide. Original spare modules like the 51304690-100 are no longer in active manufacture, making secondary-market sourcing from verified suppliers the primary procurement channel for maintenance teams.

Replacing a failed SOE card with a genuine original module — rather than an unverified substitute — preserves the system’s event-logging accuracy and avoids the re-engineering effort required to adapt a non-compatible card. The 51304690-100 slots directly into the existing I/O carrier without firmware changes, configuration modifications, or recalibration, enabling a rapid return to service. In facilities where regulatory frameworks require documented event logs (such as SIL-rated safety systems or environmental compliance monitoring), using an original replacement also satisfies audit requirements that a generic substitute may not.

For maintenance planners managing system lifecycle, the 51304690-100 also supports a phased migration strategy: by keeping TDC 3000 I/O subsystems operational with original spares, facilities can defer full DCS migration until capital budgets align — avoiding the cost and risk of a forced emergency migration triggered by an unavailable spare part.

Each unit supplied by TOPNLMS is functionally tested prior to shipment, packaged with anti-static protection, and covered by a 12-month warranty. Expedited shipping options are available to support urgent maintenance requirements.

Support FAQ

Q1: Is the 51304690-100 a direct drop-in replacement for a failed SOE card in my TDC 3000 system?
Yes. The 51304690-100 is an original Honeywell module designed for the TDC 3000 I/O subsystem. It installs directly into the existing card slot without hardware modification, firmware update, or system reconfiguration. Verify the carrier slot assignment and field wiring termination before powering up.

Q2: How is the module tested before shipment?
Each 51304690-100 unit undergoes functional testing prior to dispatch to verify digital input channel integrity and basic communication with the TDC 3000 backplane. Units that do not pass testing are not shipped. Test records are available upon request for quality-assurance documentation.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the module’s rated environmental specifications. Contact [email protected] to initiate a warranty claim.

Q4: How should I manage spare inventory for aging TDC 3000 systems?
For TDC 3000 installations with no planned migration in the next 3–5 years, industry best practice recommends holding at least one spare unit of each critical I/O card type installed in the system. SOE cards are particularly high-priority spares given their role in safety and compliance logging. Procuring spares proactively — rather than reactively after a failure — avoids emergency freight costs and extended downtime while secondary-market sourcing is arranged.
