Honeywell 10205/2/1 Ruggedized Analog Output Module

Product Overview

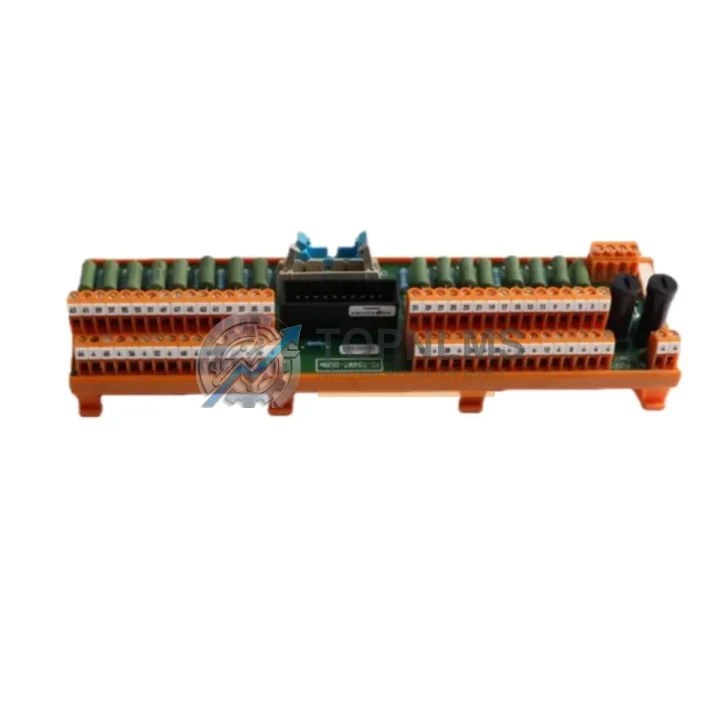

Honeywell 10205/2/1 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

The Honeywell 10205/2/1 is a precision-engineered analog output module designed for the Honeywell TDC 3000 Distributed Control System (DCS). Delivering a stable 4–20 mA analog output signal, this module is purpose-built to maintain continuous, accurate process control in the most demanding industrial environments — including high-temperature refineries, high-humidity chemical plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines.

Engineered to Honeywell’s stringent industrial-grade standards, the 10205/2/1 provides the signal integrity and thermal stability required for mission-critical control loops. Whether installed in a climate-controlled central control room or a field-mounted control cabinet exposed to electromagnetic interference and mechanical shock, this module delivers consistent 4–20 mA output with minimal drift, ensuring your process variables remain within safe operating limits at all times.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated TDC 3000 control architecture, the Honeywell 10205/2/1 Analog Output Module operates in close coordination with a range of complementary hardware components. On the input side, Honeywell Analog Input Modules such as the 10205/1/1 collect field sensor data — thermocouples, RTDs, and pressure transmitters — and pass processed values through the TDC 3000 backplane to the output module, which then drives final control elements such as control valves and variable-speed drives.

The module interfaces directly with the Honeywell High-Performance Process Manager (HPM) controller, which executes PID control algorithms and issues setpoint commands to the 10205/2/1 at scan rates appropriate for fast-response process loops. In plants where the Local Control Network (LCN) or Universal Control Network (UCN) is deployed, this output card maintains synchronization with the network’s data highway, ensuring that operator commands issued from the Honeywell Universal Station (US) or Global User Station (GUS) are faithfully translated into precise milliamp signals at the field device level.

For power integrity — a critical factor in preventing spurious output signals — the 10205/2/1 relies on stable DC bus power delivered by Honeywell TDC 3000 Power Supply Modules, which provide regulated, redundant power rails to the card rack. In high-availability installations, redundant power supply configurations protect against single-point failures that could otherwise cause uncontrolled process upsets.

Signal conditioning and field wiring termination are handled through Honeywell Field Termination Assemblies (FTAs) and associated marshalling cabinets, which provide the physical interface between the 10205/2/1’s backplane connector and the 4–20 mA field wiring. Proper FTA selection — including models with built-in surge protection and galvanic isolation — is essential in environments with high ground potential differences or frequent lightning exposure, such as outdoor substations and offshore platforms.

When the TDC 3000 system is integrated with safety instrumented systems (SIS), the analog output signals from the 10205/2/1 may be monitored by Honeywell Safety Manager or third-party IEC 61511-compliant Safety Logic Solvers, which can override or trip the output in response to detected process hazards. This layered architecture — combining basic process control with independent safety instrumentation — is standard practice in SIL 2 and SIL 3 rated applications across the oil and gas sector.

Application in Critical Infrastructure

The Honeywell 10205/2/1 has a proven service record across the world’s most demanding process industries. In petroleum refining, it controls the position of modulating control valves on crude distillation units, fluid catalytic crackers, and hydrotreaters — processes where a loss of analog output integrity can result in off-spec product, equipment damage, or safety incidents. The module’s stable 4–20 mA output ensures that valve positioners receive accurate setpoint signals even in the presence of the high-frequency electrical noise generated by large motor drives and power transformers common in refinery environments.

In natural gas processing and LNG facilities, the 10205/2/1 manages flow control on compressor anti-surge loops and separator level control loops, where response speed and signal accuracy are paramount. The module’s compatibility with the TDC 3000 HPM’s fast-scan control execution makes it suitable for these dynamic, high-consequence applications.

In coal-fired and combined-cycle power plants, TDC 3000 systems equipped with 10205/2/1 output modules regulate boiler feedwater flow, turbine governor signals, and burner management system outputs. The module’s ability to operate reliably in the high-temperature, high-vibration environment of a turbine hall — where ambient temperatures can exceed 50°C and mechanical vibration is continuous — demonstrates its rugged industrial design.

In municipal and industrial water treatment facilities, the module drives chemical dosing pumps, aeration blower speed references, and filter backwash valve actuators. Its long-term signal stability reduces the need for frequent field calibration, lowering maintenance costs in facilities that operate continuously with minimal staffing.

In metallurgical and steel production environments — among the harshest in industry — the 10205/2/1 controls electric arc furnace electrode positioning, rolling mill speed references, and continuous casting mold level control. These applications demand zero-tolerance for signal dropout or drift, and the module’s proven reliability in high-EMI, high-temperature environments makes it a trusted choice for plant engineers responsible for maintaining production continuity.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 10205/2/1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified 4–20 mA analog output function within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are supported by our technical team at [email protected].

Q2: How is the module tested before shipment?
Every Honeywell 10205/2/1 unit undergoes a multi-point functional test prior to dispatch. Testing includes output signal verification across the full 4–20 mA range, backplane connector integrity inspection, and visual examination for physical damage or component degradation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with quality assurance requirements.

Q3: Is the 10205/2/1 compatible with my existing TDC 3000 system configuration?
The Honeywell 10205/2/1 is designed as a direct replacement for the original OEM module within the TDC 3000 platform. It is compatible with standard TDC 3000 card racks and backplane configurations, including HPM, LCN, and UCN-based architectures. If you are uncertain about compatibility with a specific rack revision or firmware version, our technical team can assist with cross-referencing your system’s bill of materials before purchase.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated inventory of legacy Honeywell TDC 3000 components, including the 10205/2/1, to support plants operating aging DCS platforms where OEM supply has been discontinued or lead times are unacceptably long. We offer expedited shipping via DHL, FedEx, and UPS to minimize process downtime. For customers with ongoing maintenance requirements, we can discuss reserved stock arrangements to ensure availability when you need it most. Contact us at [email protected] or +86 18359293191 to discuss your supply continuity needs.
