HITACHI EH-BS8 Replacement Upgrade Solution for EH Series

Product Overview

HITACHI EH-BS8 Replacement & Upgrade Solution for EH Series: Smooth Migration from Legacy PLC Racks

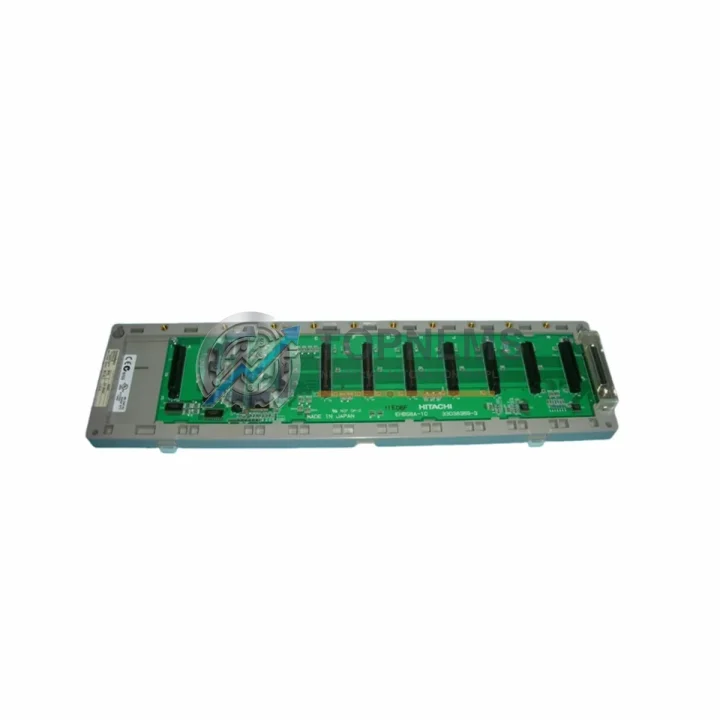

The HITACHI EH-BS8 is an 8-slot rack base unit designed for the HITACHI EH Series programmable logic controller platform. As legacy EH Series installations reach end-of-service milestones, plant engineers and procurement teams increasingly require a reliable, drop-in replacement or structured upgrade path that preserves existing wiring infrastructure, minimizes reprogramming effort, and reduces unplanned downtime. The EH-BS8 addresses all of these requirements directly, serving as both a direct spare for failed or aging base units and as the foundation for a controlled system modernization project.

The EH-BS8 accommodates up to 8 I/O and special-function modules within a single rack, maintaining full mechanical and electrical compatibility with the standard EH Series module footprint. Existing EH-CPU, EH-XD, EH-YT, EH-AD, and EH-DA modules slot directly into the EH-BS8 without modification to wiring harnesses or terminal blocks. This physical compatibility is critical for brownfield retrofit projects where rewiring a control cabinet would introduce unacceptable downtime or require costly panel redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EH Series rack migration involves more than swapping the base unit. During a typical retrofit, engineers also evaluate the condition of the EH-PS power supply module seated in the rack — a degraded power supply is a common root cause of intermittent CPU faults and should be replaced alongside the base unit to ensure system stability. The EH-CPU controller module itself may also be upgraded at this stage; newer EH CPU variants offer expanded program memory and faster scan times without requiring changes to the existing ladder logic structure, making the transition transparent to the control program.

On the I/O side, existing EH-XD digital input modules and EH-YT transistor output modules typically transfer directly to the new EH-BS8 rack. However, projects that involve expanding I/O capacity often add EH-AD analog input modules or EH-DA analog output modules to handle additional process signals — these slot into the spare positions on the 8-slot base without any backplane reconfiguration. For applications requiring process signal isolation, a DIN-rail-mounted signal isolator or signal conditioner is recommended between field transmitters and the analog I/O modules to protect against ground loops and voltage transients common in industrial environments.

Communication architecture is another key consideration. Many EH Series installations use H-Link for peer-to-peer PLC communication across production lines. The EH-BS8 fully supports H-Link communication modules in any slot, preserving existing network topology. Sites transitioning to Ethernet-based SCADA or HMI connectivity can add an EH Ethernet communication module to the rack, enabling Modbus TCP or proprietary HITACHI Ethernet protocol without replacing the CPU or rewiring field devices. Panel-mounted HMI terminals connected via RS-232 or RS-485 to the existing EH comm module continue to operate without driver changes.

For programming and commissioning, the EH Series programming cable (USB-to-RS-232 adapter compatible with HITACHI’s WindLDR or EH-150 programming software) connects directly to the CPU module on the new rack. No new software licenses are required if the existing WindLDR project file is retained — the program uploads to the replacement CPU without modification, significantly reducing commissioning time during a planned maintenance window.

Retrofit Guidance FAQ

Q: Do I need to rewire terminal blocks when replacing the EH-BS8 base unit?
A: No. The EH-BS8 uses the same backplane connector layout as previous EH Series base units. I/O modules with their wired terminal blocks can be removed from the old rack and inserted into the new EH-BS8 without disconnecting field wiring, provided the modules are handled carefully during transfer.

Q: Will my existing ladder logic program run on the replacement rack without modification?
A: Yes. The EH-BS8 is a passive backplane — it does not affect program execution. As long as the CPU module and I/O module types remain the same, the existing WindLDR project file runs without changes. If the CPU is also being upgraded to a newer EH CPU variant, verify memory address compatibility in WindLDR before downloading.

Q: Is H-Link communication preserved after replacing the base unit?
A: Yes. H-Link communication is handled by the dedicated H-Link module seated in the rack slot, not by the base unit itself. Replacing the EH-BS8 does not affect H-Link network configuration or station addressing.

Q: What if my control cabinet has limited space — will the EH-BS8 fit?
A: The EH-BS8 shares the same physical footprint and mounting hole pattern as the original EH Series 8-slot base unit. No cabinet modification or additional DIN rail space is required for a like-for-like replacement.

Q: Can I expand to more than 8 I/O slots using the EH-BS8?
A: The EH-BS8 provides 8 module slots. For applications requiring more I/O, an additional EH Series expansion rack connected via the EH expansion bus cable can be added, extending the system capacity without replacing the main CPU or base unit.

Warranty Assurance

Every HITACHI EH-BS8 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional inspection and continuity testing to verify backplane bus integrity and power supply interface contacts. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch or repair support with priority handling to minimize impact on production schedules. Our technical team is available to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period.

Stock is maintained in Xiamen for fast domestic and international dispatch. Orders confirmed before the daily cut-off are typically shipped the same business day. Export documentation, including commercial invoice and packing list, is prepared for all international shipments to facilitate customs clearance.

For procurement inquiries, compatibility verification, or bulk order pricing, contact our team directly.
