HITACHI BSU09H-B Ruggedized 9-Slot Backplane for Harsh Environments

Product Overview

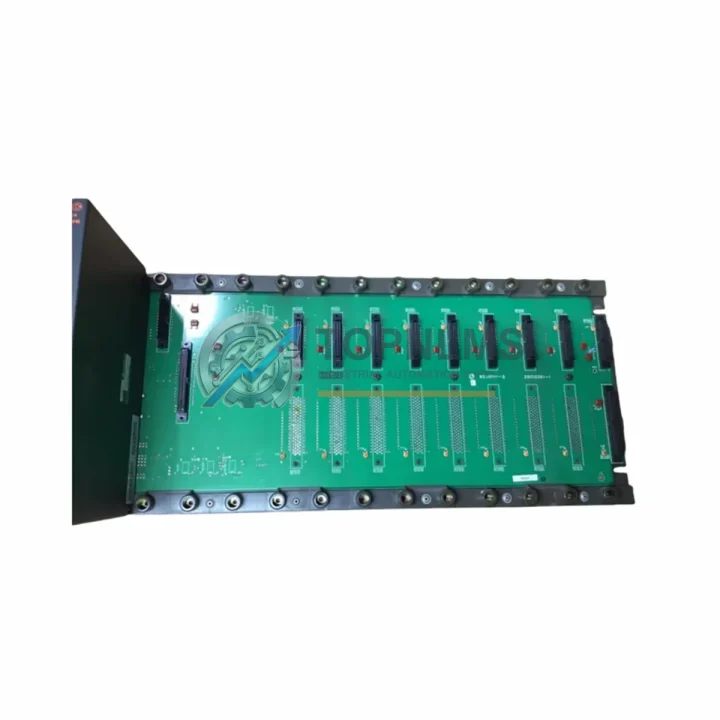

HITACHI BSU09H-B Ruggedized 9-Slot Backplane Module: Industrial Resilience for Harsh Environments

The HITACHI BSU09H-B is a 9-slot base rack (backplane) module engineered for the HITACHI H Series programmable logic controller platform — one of the most field-proven PLC architectures deployed across heavy industry in Asia and globally. Designed to operate reliably under the demanding conditions of continuous production lines, the BSU09H-B provides the structural and electrical backbone that holds the entire H Series control system together. Whether installed in a steel mill, a chemical processing plant, a water treatment facility, or a power generation station, this backplane module delivers the mechanical rigidity, signal integrity, and thermal tolerance that mission-critical automation demands.

Industrial environments are unforgiving. High ambient temperatures, persistent humidity, airborne particulate contamination, mechanical vibration from rotating machinery, and pervasive electromagnetic interference from variable frequency drives and high-current switching equipment all conspire to degrade control system reliability over time. The BSU09H-B is built to resist these stressors. Its robust backplane PCB construction ensures stable inter-module communication across all nine slots, maintaining clean data bus integrity even when adjacent equipment generates significant EMI. The rack’s mechanical frame provides secure module retention, preventing contact degradation caused by vibration — a common failure mode in lesser-quality backplane designs.

Within a fully configured H Series control cabinet, the BSU09H-B serves as the integration point for a complete suite of HITACHI H Series modules. The CPU module — such as the HITACHI H-4010 or H-4020 — occupies the primary slot, while the remaining eight positions accommodate digital input modules (MD-DI32), digital output modules (MD-DO32T), analog input modules (MD-AI8), analog output modules (MD-AO4), and communication interface modules including the MD-CM01 for Ethernet/IP connectivity. This modular architecture allows engineers to tailor the I/O configuration precisely to the process requirements without over-specifying hardware, reducing both capital cost and cabinet footprint.

In applications where process safety is paramount — such as oil and gas wellhead control, refinery distributed control system (DCS) integration, or mining conveyor protection — the BSU09H-B supports the deployment of HITACHI safety-rated I/O modules alongside standard process modules within the same rack. This co-location capability simplifies cabinet design and reduces wiring complexity while maintaining the functional separation required by IEC 61508 and IEC 62061 safety standards. The backplane’s power distribution architecture ensures that each module slot receives clean, regulated DC power, minimizing the risk of cross-module interference that could compromise safety function integrity.

Power supply modules compatible with the BSU09H-B — including the HITACHI H-PS01 and H-PS02 — connect directly to the rack’s power bus, providing redundant power paths in high-availability configurations. For facilities operating 24/7 with zero-tolerance for unplanned downtime, redundant power supply arrangements supported by the BSU09H-B rack architecture are a standard engineering practice. The rack’s thermal design facilitates natural convection cooling, and when paired with forced-air cooling in high-density cabinet installations, the BSU09H-B maintains stable operation across an ambient temperature range consistent with IEC 61131-2 environmental classifications for industrial control equipment.

Communication reliability is equally critical in modern industrial automation. The BSU09H-B supports the installation of HITACHI H Series communication modules that interface with PROFIBUS DP, Modbus RTU/TCP, and proprietary HITACHI H-Link networks, enabling seamless integration with SCADA systems, HMI panels, and upstream DCS platforms. In petrochemical plants where the H Series PLC manages burner management sequences or compressor control logic, the communication module’s ability to report real-time process data to the control room without latency is directly dependent on the backplane’s bus architecture — an area where the BSU09H-B’s design heritage provides a proven advantage.

From a procurement and maintenance perspective, the BSU09H-B occupies a critical position in any facility’s spare parts inventory strategy. As a base rack module, it is the single component whose failure renders the entire H Series control node inoperable. Maintaining at least one spare BSU09H-B on-site is standard practice for facilities with long lead times on imported automation components. TOPNLMS stocks the BSU09H-B as a genuine HITACHI component, sourced through verified supply channels, and subjects each unit to functional verification testing prior to dispatch. Every BSU09H-B shipped by TOPNLMS is covered by a 12-month warranty against manufacturing defects and functional failure, providing procurement teams with the assurance needed to justify spare parts investment to plant management.

Rugged Specifications Table

Comprehensive Protection Solutions

The BSU09H-B does not operate in isolation — it is the foundation of a layered protection and control architecture. In a typical heavy industrial control cabinet, the rack hosts a combination of modules that together deliver end-to-end process protection. Digital input modules such as the HITACHI MD-DI32 collect field signals from pressure switches, temperature sensors, and limit switches, while digital output modules like the MD-DO32T drive solenoid valves, motor contactors, and alarm annunciators. Analog modules including the MD-AI8 and MD-AO4 handle 4–20 mA process loops for flow, level, and pressure control.

For facilities requiring functional safety compliance, HITACHI H Series safety I/O modules can be co-located in the BSU09H-B rack alongside standard modules, enabling a compact safety instrumented system (SIS) architecture. Communication modules such as the MD-CM01 (Ethernet/IP) and MD-CM02 (PROFIBUS DP) extend the H Series control node into plant-wide SCADA and DCS networks, ensuring that the BSU09H-B-based control node participates fully in supervisory data collection and remote diagnostics. Industrial power supplies — including the HITACHI H-PS02 redundant power module — protect the entire rack from power quality events, while surge protection terminal blocks and EMI filter modules installed at the cabinet entry point shield the backplane bus from conducted interference originating in the field wiring.

Application in Critical Infrastructure

The HITACHI BSU09H-B has accumulated a substantial installed base across critical infrastructure sectors throughout Asia, the Middle East, and Southeast Asia. In oil and gas upstream and midstream facilities, H Series PLC systems built on the BSU09H-B backplane manage wellhead safety shutdown logic, pipeline pressure monitoring, and compressor anti-surge control — applications where control system failure carries both safety and financial consequences measured in millions of dollars per hour of unplanned downtime.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the BSU09H-B supports auxiliary control systems managing cooling water pumps, fuel handling conveyors, and transformer protection relay interfaces. The rack’s vibration resistance and wide operating temperature range make it equally suitable for mining environments, where conveyor drive control, crusher sequencing, and ventilation fan management demand control hardware that can withstand the mechanical and thermal stresses of underground or open-cut operations.

Water and wastewater treatment facilities rely on H Series systems for pump station control, chemical dosing automation, and SCADA-integrated remote monitoring — all applications where the BSU09H-B’s long-term reliability and availability of genuine spare parts are decisive procurement factors. In metallurgical and steel production environments, where ambient temperatures near furnaces and rolling mills can challenge even industrial-grade hardware, the BSU09H-B’s thermal design and robust bus architecture ensure continuous operation through production campaigns that may run for weeks without interruption.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the HITACHI BSU09H-B?
Every BSU09H-B supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure and manufacturing defects under normal operating conditions. TOPNLMS will replace or repair any unit that fails within the warranty period at no additional cost to the buyer, including return shipping coordination for international customers.

Q2: How is each BSU09H-B tested before shipment?
Each unit undergoes a pre-shipment functional verification process that includes visual inspection for physical damage, power-on testing to confirm backplane bus continuity across all nine slots, and compatibility verification against HITACHI H Series CPU and I/O modules. Units that do not pass all test criteria are quarantined and not dispatched. A test report is available upon request for customers with quality management system requirements.

Q3: Is the BSU09H-B compatible with all HITACHI H Series CPU and I/O modules?
Yes. The BSU09H-B is the standard 9-slot base rack for the HITACHI H Series PLC platform and is compatible with the full range of H Series CPU modules (H-4010, H-4020, H-4030), all standard digital and analog I/O modules, communication interface modules, and power supply modules. It is also backward-compatible with earlier H Series module generations. If you have a specific module compatibility question, contact TOPNLMS technical support before ordering.

Q4: Can TOPNLMS guarantee long-term supply of the BSU09H-B for ongoing maintenance programs?
TOPNLMS maintains dedicated stock of the BSU09H-B and other HITACHI H Series components to support customers with long-term maintenance and spare parts programs. For facilities managing aging H Series installations, TOPNLMS can provide scheduled supply agreements to ensure that critical spare parts are available when needed, reducing the risk of extended downtime caused by component unavailability. Contact our team to discuss volume pricing and supply program options.
