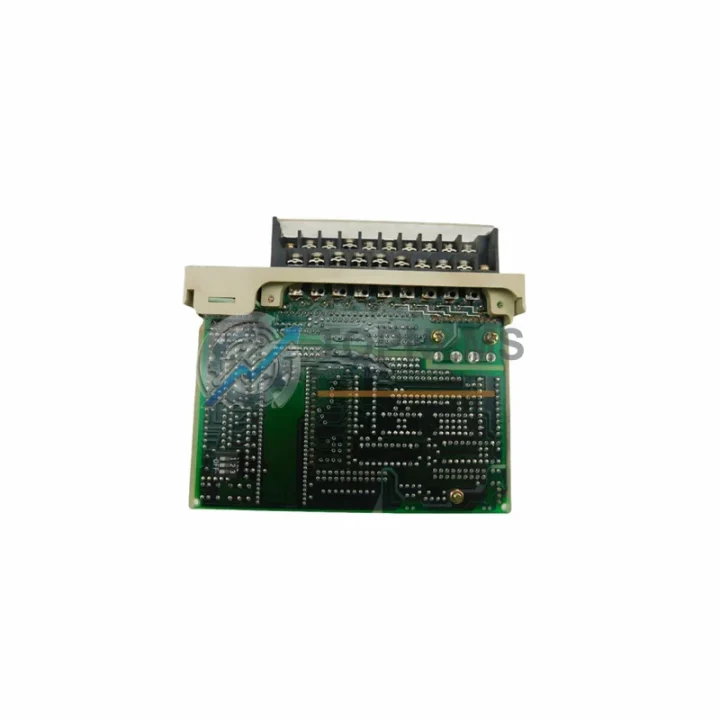

HITACHI CTM 33018818-4CTM Replacement for EH-150 Series

Product Overview

HITACHI CTM 33018818-4CTM Replacement for EH-150 Series: Seamless Migration & Upgrade Solution

The HITACHI CTM 33018818-4CTM is a high-speed counter module designed for the EH-150 programmable logic controller series. As industrial facilities face increasing pressure to maintain uptime while managing aging control infrastructure, this module serves as the definitive drop-in replacement for discontinued or end-of-life counter modules within the EH-150 platform. Whether your facility is running a legacy EH-150 rack with original I/O modules from the early 2000s or managing a hybrid system that blends older HITACHI H-series controllers with newer EH-150 components, the CTM 33018818-4CTM provides a validated migration path that minimizes engineering rework, preserves existing wiring, and eliminates the need for full PLC replacement.

The EH-150 series was engineered for demanding industrial environments — from automotive assembly lines and packaging machinery to water treatment facilities and material handling systems. The CTM 33018818-4CTM counter module slots directly into the EH-150 base unit rack, maintaining full compatibility with the existing backplane bus architecture. Engineers migrating from older HITACHI H-200 or H-300 series controllers will find that the EH-150 platform, anchored by modules like the CTM 33018818-4CTM, offers a structured upgrade path without requiring a complete rewire of field instrumentation or encoder feedback circuits.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the CTM 33018818-4CTM rarely involves the counter module in isolation. In most EH-150 retrofit projects, the counter module works in concert with a broader set of components that must be evaluated for compatibility and, in some cases, replaced simultaneously to ensure system integrity.

The EH-150 CPU module — typically the EH-CPU448 or EH-CPU516 — serves as the central controller that communicates with the CTM 33018818-4CTM over the internal backplane. If the CPU firmware is outdated, a firmware refresh using the HITACHI EH-150 programming cable (PC-EH series) is recommended before commissioning the new counter module. The programming cable connects the CPU’s RS-232 or USB port to an engineering workstation running the HITACHI Ladder Editor, allowing engineers to verify counter channel assignments and confirm that the existing ladder logic correctly maps to the new module’s I/O addresses.

On the I/O side, digital input modules such as the EH-XD16 or EH-XD32 are commonly installed in adjacent rack slots to handle auxiliary discrete signals — limit switches, proximity sensors, and encoder index pulses — that feed into the counter logic. If these modules are also approaching end-of-life, replacing them alongside the CTM 33018818-4CTM during the same maintenance window reduces future downtime risk and simplifies the commissioning process.

Power supply integrity is critical in any EH-150 rack. The EH-PS series power supply modules provide regulated 5 VDC and 24 VDC to the backplane and field devices respectively. Before installing the CTM 33018818-4CTM, verify that the installed power supply module has sufficient current headroom to support the additional counter module load. In high-density racks where multiple analog output modules (EH-AO series) and communication modules are already installed, a power budget review is essential.

For facilities that rely on MODBUS RTU or PROFIBUS DP communication between the EH-150 controller and upstream SCADA systems or HMI panels, the EH-150 communication module (EH-ETH or EH-PROFIBUS) must be confirmed compatible with the updated rack configuration after the CTM 33018818-4CTM is installed. In most cases, no changes to the communication module configuration are required, as the counter module communicates exclusively over the internal backplane and does not affect the external network interface.

HMI panels — whether HITACHI’s own operator terminals or third-party panels connected via RS-485 — typically display counter values read from the CPU’s data registers. After replacing the CTM 33018818-4CTM, engineers should verify that the HMI tag addresses still correctly reference the counter data registers in the CPU memory map. This is a software-only check and does not require any hardware changes to the HMI or its communication cable.

Signal isolators and terminal modules installed between field encoders and the CTM 33018818-4CTM input terminals should also be inspected during the retrofit. If the existing signal isolator is rated for the encoder’s output voltage and frequency range, it can be retained without modification. In applications where high-frequency pulse inputs exceed the isolator’s bandwidth, upgrading to a wideband signal isolator ensures accurate count data at the new module’s input terminals.

Retrofit Guidance FAQ

Q: Can I install the CTM 33018818-4CTM without modifying the existing wiring?
A: Yes. The CTM 33018818-4CTM uses the same terminal block pinout as the original EH-150 counter module variants. Field wiring from encoders, pulse generators, and proximity sensors connects directly to the module’s terminal block without any rewiring. Verify wire gauge and terminal torque specifications in the HITACHI EH-150 hardware manual before tightening.

Q: Do I need to modify my existing ladder program after replacing the module?
A: In most cases, no. The CTM 33018818-4CTM is register-compatible with the EH-150 counter module family. Counter channel addresses, preset values, and comparison output assignments remain valid. However, if the original module used a non-standard firmware variant, a full I/O map verification using the HITACHI Ladder Editor is recommended before returning the machine to production.

Q: Is the CTM 33018818-4CTM compatible with MODBUS or PROFIBUS communication?
A: The counter module itself communicates over the EH-150 internal backplane bus and does not have an independent external communication port. MODBUS RTU, PROFIBUS DP, or Ethernet/IP communication is handled by the dedicated EH-150 communication module installed in the same rack. The CTM 33018818-4CTM’s counter data is accessible to the CPU and, through the CPU, to any connected communication module — no changes to the communication configuration are required.

Q: Will the module fit in the same rack slot without cabinet modification?
A: Yes. The CTM 33018818-4CTM conforms to the standard EH-150 module form factor and occupies a single rack slot. No DIN rail modification, cabinet cutout change, or mounting bracket adaptation is required. The module slides into the existing slot and is secured with the standard EH-150 module locking mechanism.

Q: How do I verify the module is functioning correctly after installation?
A: After installing the CTM 33018818-4CTM and powering up the EH-150 rack, use the HITACHI Ladder Editor’s online monitoring function to observe counter channel values in real time. Apply a known pulse source to the input terminals and confirm that the counter increments correctly. Check the module’s LED status indicators — RUN, ERR, and channel activity LEDs — to confirm normal operation before returning the system to automatic mode.

Q: What if my encoder output voltage does not match the module’s input specification?
A: The CTM 33018818-4CTM accepts standard industrial encoder signal levels. If your encoder outputs a voltage level outside the module’s rated input range, install a signal isolator or level converter between the encoder and the module’s input terminals. This is a common requirement when migrating from older 15 VDC encoder systems to the EH-150 platform’s 5 VDC or 12 VDC input range.

Warranty Assurance

Every CTM 33018818-4CTM shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before shipment, each module undergoes a functional verification test that confirms counter channel operation, backplane communication integrity, and LED status indicator function. Modules that do not pass the pre-shipment test are quarantined and not dispatched.

If a module develops a fault within the 12-month warranty period under normal operating conditions, TOPNLMS will provide a replacement unit at no additional cost. The warranty covers manufacturing defects and functional failures but does not cover damage resulting from incorrect installation, overvoltage conditions, or physical impact. To initiate a warranty claim, contact TOPNLMS with the order number, module serial number, and a description of the observed fault.

TOPNLMS maintains stock of the CTM 33018818-4CTM and related EH-150 modules at our Xiamen warehouse, enabling fast dispatch for urgent replacement orders. Standard orders are processed within 1–2 business days, with express shipping options available for critical downtime situations. All modules are shipped in anti-static packaging with individual inspection records included in the shipment documentation.
