Hitachi PGMJ Ruggedized PLC Programming Console

Product Overview

Hitachi PGMJ Ruggedized PLC Programming Console: Industrial Resilience for Harsh Environments

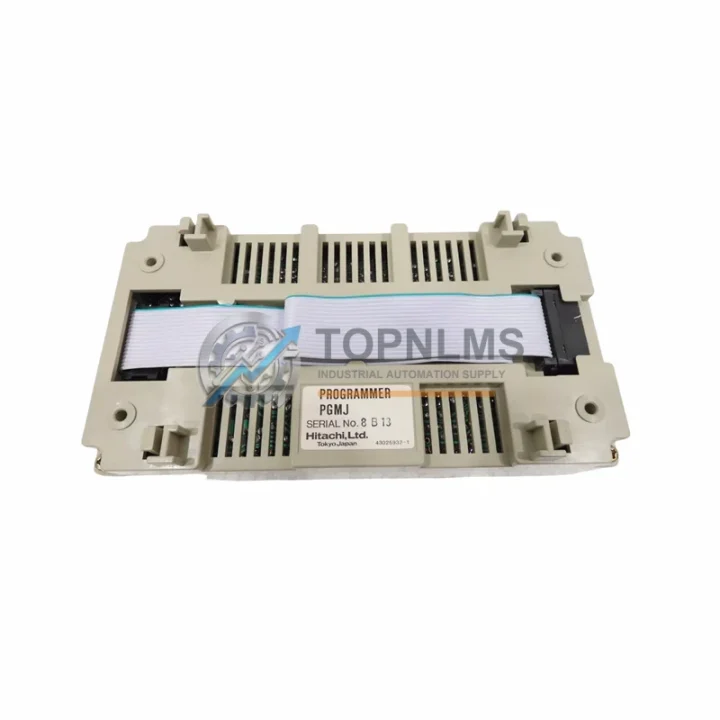

The Hitachi PGMJ is a ruggedized handheld programming console engineered for direct on-site programming, monitoring, and diagnostics of Hitachi H-Series, EC-Series, and EH-Series programmable logic controllers. Designed to operate reliably in the demanding conditions found across heavy industry — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and strong electromagnetic interference — the PGMJ delivers the field-level control access that maintenance engineers and automation technicians depend on when every minute of downtime carries a cost.

In continuous production environments such as steel mills, petrochemical plants, and water treatment facilities, the ability to connect directly to a PLC without a laptop or network infrastructure is not a convenience — it is a critical operational requirement. The PGMJ fulfills this role with a compact, handheld form factor that withstands the physical realities of industrial fieldwork: accidental drops, exposure to cutting fluids, dust ingress from grinding operations, and the constant low-frequency vibration present on production floors and compressor platforms.

Rugged Specifications Table

Comprehensive Protection Solutions

The PGMJ does not operate in isolation — it is the diagnostic and programming gateway into a broader Hitachi automation architecture. When deployed alongside the Hitachi EH-150 CPU module or the EH-A08DR mixed I/O module, the PGMJ enables engineers to perform live ladder logic edits, monitor real-time I/O states, and force discrete outputs during commissioning without interrupting the production cycle. In control cabinets where the Hitachi EH-ETH Ethernet communication module handles SCADA connectivity, the PGMJ serves as the local fallback programming interface — essential when network access is unavailable or when isolating a fault requires working directly at the rack level.

For installations that integrate Hitachi SJ700 or SJ-P1 series variable frequency drives into the same control system, the PGMJ allows PLC-side parameter verification and interlock logic review without disconnecting the drive network. In safety-critical zones where safety relay modules and emergency stop circuits are wired into the EH-Series I/O bus, the ability to read and verify PLC logic on-site — without a PC — reduces the risk of inadvertent program overwrites during live maintenance. The PGMJ’s keypad-based entry method also eliminates the dependency on Windows driver compatibility, a common failure point when using laptop-based programming tools in the field.

Control panels that incorporate Hitachi terminal block modules, 24VDC industrial power supply units, and DIN-rail mounted relay output modules benefit from the PGMJ’s ability to force individual output coils during wiring verification — a procedure that would otherwise require a full PC setup. When paired with Hitachi H-series analog input modules for process variable monitoring, the PGMJ can display scaled register values directly, enabling field calibration checks without additional instrumentation.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the PGMJ is deployed at wellhead control panels and pipeline compressor stations where Hitachi EH-Series PLCs manage valve sequencing, pressure interlocks, and emergency shutdown logic. The ability to connect a handheld console directly to the PLC — without a network — is essential in classified hazardous areas where wireless devices are restricted and laptop use requires hot-work permits.

In mining and mineral processing, Hitachi H-Series PLCs control conveyor drives, crusher sequencing, and slurry pump interlocks. The PGMJ allows maintenance teams to diagnose faults and modify timer setpoints directly at the machine, reducing the time between fault detection and production resumption. Dust concentrations and vibration levels in these environments make the PGMJ’s compact, sealed construction a practical advantage over fragile laptop-based alternatives.

In power generation and substation automation, EH-Series PLCs handle auxiliary equipment control — cooling fans, oil pumps, and circuit breaker sequencing. The PGMJ enables control room engineers to verify interlock logic and monitor coil states during scheduled outages, supporting safe isolation and return-to-service procedures without relying on SCADA connectivity.

In water and wastewater treatment, Hitachi PLCs manage pump station sequencing, chemical dosing, and level control. The PGMJ is used by field technicians to adjust setpoints and diagnose sensor faults at remote pump stations where PC access is impractical. Its battery-independent operation (powered directly from the PLC programming port) eliminates the need for a charged laptop in locations with limited power access.

In metallurgy and steel production, where ambient temperatures near furnaces and rolling mills can exceed 45°C and electromagnetic noise from large motor drives is constant, the PGMJ’s tolerance for electrically harsh environments makes it the preferred on-site diagnostic tool for Hitachi PLC installations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Hitachi PGMJ?
The 12-month warranty covers all hardware defects and functional failures under normal industrial operating conditions. If the unit fails to communicate with a compatible Hitachi H/EC/EH-Series PLC or exhibits display, keypad, or connector faults within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed with documented test reports.

Q2: How is the PGMJ tested before shipment?
Every PGMJ unit is functionally tested prior to dispatch. Testing includes physical connector inspection, display and backlight verification, keypad response check, and communication handshake confirmation with a compatible Hitachi PLC. A test report is available upon request. Units that do not pass functional verification are not listed for sale.

Q3: Is the PGMJ compatible with all Hitachi H-Series and EH-Series PLC models?
The PGMJ is compatible with the Hitachi H-Series (H-20, H-28, H-40, H-64), EC-Series, and EH-Series (EH-150, EH-A) PLC families. It uses the standard Hitachi programming port interface. Compatibility with specific CPU revisions should be confirmed against the Hitachi programming console compatibility matrix. TOPNLMS technical support can assist with pre-purchase compatibility verification.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for the PGMJ?
TOPNLMS maintains stock of the Hitachi PGMJ and related Hitachi H/EH-Series spare parts to support ongoing maintenance programs. For customers managing multi-site Hitachi PLC installations, we recommend contacting our team to discuss blanket order arrangements and reserved stock agreements. Long-term supply continuity is a core part of our service to industrial MRO and spare parts procurement teams.
