Hirschmann RH1-TP/FL Original Industrial Spare MICE Compatible: System Stability & Industrial Spare Parts Maintenance Value

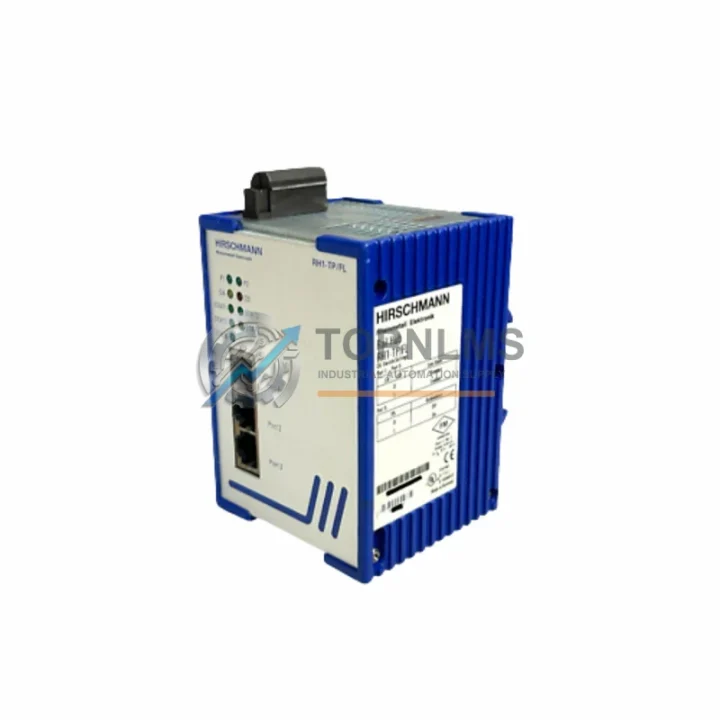

The Hirschmann RH1-TP/FL is an original MICE (Modular Industrial Communication System for Ethernet) Rail Hub designed for demanding industrial Ethernet environments. As a DIN rail-mounted Fast Ethernet hub, the RH1-TP/FL serves as a critical network node in factory automation control cabinets, process control systems, and distributed I/O architectures. When this component fails or degrades, the consequences extend far beyond a single network port — entire PLC communication loops, SCADA data acquisition chains, and remote I/O polling cycles can be disrupted, triggering unplanned downtime that costs far more than the component itself.

Sourcing a verified original Hirschmann RH1-TP/FL spare in advance is one of the most cost-effective decisions a maintenance engineer can make. TOPNLMS stocks this unit as a ready-to-ship replacement, fully tested prior to dispatch, with a 12-month warranty covering manufacturing defects and functional performance.

Critical Technical Specs

Preventive Maintenance Strategy

The RH1-TP/FL sits at the heart of the industrial Ethernet segment within the control cabinet. A structured preventive maintenance approach around this hub should extend to the entire communication and power ecosystem it supports. During scheduled shutdowns or annual inspections, maintenance teams should treat the RH1-TP/FL replacement as an opportunity to audit the broader system health.

Begin with the 24 VDC power supply rail feeding the MICE hub — power supply modules such as the Hirschmann PS series or equivalent Siemens SITOP PSU100S units are common failure points that cause intermittent hub resets and are frequently misdiagnosed as hub faults. Verify output voltage stability under load before condemning the RH1-TP/FL itself.

Next, inspect the fiber optic patch cables and SC/ST connectors on the FL port. Contaminated or damaged fiber connectors are a leading cause of link-loss events on MICE hubs. Keeping a set of pre-tested fiber jumpers as shelf spares eliminates a common source of false hub failures during emergency troubleshooting.

The RJ45 patch cables and industrial Ethernet connectors on the TP ports should also be checked for corrosion, bent pins, and cable jacket integrity — particularly in high-vibration or high-humidity environments. Industrial-grade Cat5e or Cat6 shielded cables with IP67-rated connectors are recommended for cabinet penetrations.

If the RH1-TP/FL connects to a Hirschmann RS20 or RS30 managed switch upstream, verify the switch firmware version and port configuration. Mismatched duplex settings between the hub and the managed switch are a common source of CRC errors and packet loss that can appear as hub malfunction. Keeping a spare RS20/RS30 module in inventory alongside the RH1-TP/FL ensures the entire Ethernet segment can be restored rapidly.

For systems using Profibus DP or Profinet I/O alongside the Ethernet hub, inspect the associated Profibus repeaters, DP/PA couplers, and Profinet media converters. A failing RH1-TP/FL in a hybrid Profibus/Ethernet cabinet can mask underlying Profibus segment issues — use the maintenance window to run a full Profibus diagnostic and check termination resistors on both ends of the bus segment.

The I/O modules connected through the Ethernet backbone — whether Siemens ET 200S, ET 200M, or Hirschmann-compatible remote I/O stations — should be visually inspected for status LED anomalies, loose terminal connections, and module seating. A loose I/O module can generate spurious network traffic that overloads a hub’s backplane and accelerates wear.

Finally, review the DIN rail grounding and cabinet earthing. Poor cabinet ground continuity is a systemic cause of Ethernet communication errors in industrial environments. Verify that the DIN rail carrying the RH1-TP/FL is properly bonded to the cabinet PE bar, and that all cable shields are terminated correctly at a single grounding point to prevent ground loops.

A complete spare kit for the MICE Ethernet segment should include: the RH1-TP/FL hub, at least one upstream managed switch module, fiber patch cables, shielded RJ45 patch cables, a 24 VDC power supply module, and a set of terminal block fuse holders for the power feed circuit. This kit approach reduces mean time to repair (MTTR) from hours to minutes during an unplanned outage.

Strategic Replacement Solutions

The Hirschmann RH1-TP/FL was designed for long service life in industrial environments, but aging units in systems installed 10–15 years ago are increasingly susceptible to capacitor degradation, port contact oxidation, and firmware incompatibility with newer network management tools. Rather than waiting for a catastrophic failure, a planned replacement strategy delivers measurable operational benefits.

A direct like-for-like replacement with a new original RH1-TP/FL preserves full compatibility with the existing MICE system architecture — no reconfiguration of upstream switches, no changes to IP addressing schemes, and no revalidation of the Profinet or EtherNet/IP device table. This is the lowest-risk replacement path for production environments where revalidation costs are high.

For sites managing multiple MICE hubs across several control cabinets, a staggered replacement program — replacing the oldest units first based on installation date records — smooths capital expenditure and prevents simultaneous multi-point failures during peak production periods. TOPNLMS can support bulk procurement with consistent lead times and batch testing documentation.

Where the original system design used the RH1-TP/FL as a simple repeater hub, maintenance engineers should evaluate whether upgrading to a MICE-compatible managed switch module (such as the Hirschmann MS20 or MS30) would provide additional diagnostic visibility — port statistics, SNMP traps, and RSTP ring redundancy — without requiring cabinet redesign. This upgrade path extends the useful life of the overall MICE system while improving fault isolation capability.

All units supplied by TOPNLMS are sourced from verified supply chains, individually tested for port link integrity and power-up behavior, and shipped with full packaging and documentation. A 12-month warranty is included as standard, covering return and replacement for any unit that fails to perform to specification under normal operating conditions.
