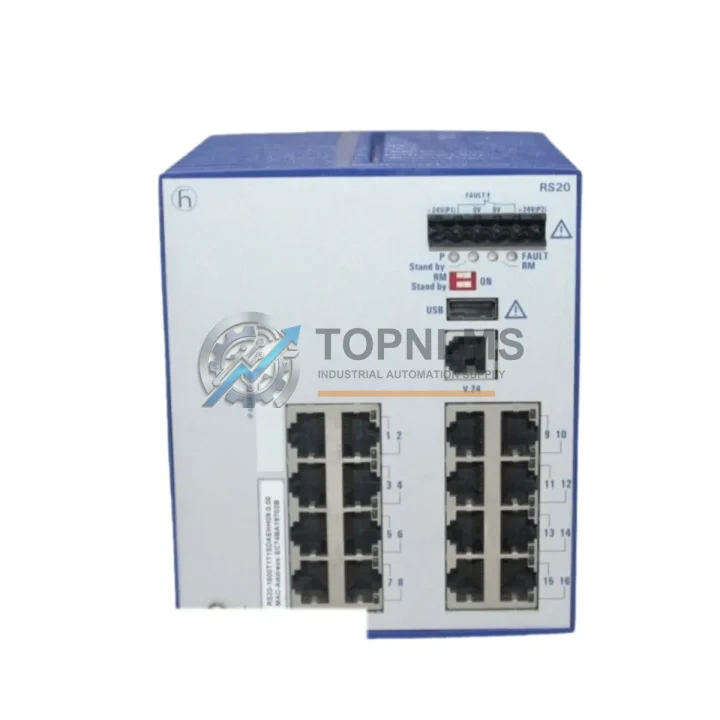

Hirschmann RS20-1600T1T1SDAEHH09.0.00 Original Industrial Spare RS20 Compatible

Product Overview

Hirschmann RS20-1600T1T1SDAEHH09.0.00 Original Industrial Spare RS20 Compatible: System Stability and Industrial Spare Parts Maintenance Value

In modern industrial automation environments, network infrastructure reliability is as critical as the PLC or DCS hardware it connects. The Hirschmann RS20-1600T1T1SDAEHH09.0.00 is a 16-port managed industrial Ethernet switch from the proven RS20 Series, engineered for demanding factory floor, process control, and utility automation applications. Whether you are managing a scheduled shutdown, responding to an unplanned network fault, or building a strategic spare parts inventory, this switch delivers the performance, compatibility, and long-term availability that industrial maintenance teams depend on.

Sourced as an original spare, the RS20-1600T1T1SDAEHH09.0.00 is fully compatible with existing RS20 Series installations and integrates seamlessly into Hirschmann-managed network topologies including RSTP/MSTP and HiPER-Ring redundancy configurations. Its DIN-rail form factor and wide operating temperature range make it suitable for control cabinet deployment across a broad range of industrial sectors including automotive, chemical, water treatment, and discrete manufacturing.

Critical Technical Specs

Preventive Maintenance Strategy

Industrial Ethernet switches like the RS20-1600T1T1SDAEHH09.0.00 sit at the heart of plant-wide communication networks, linking PLCs, remote I/O stations, HMI panels, and SCADA servers. A single failed switch can isolate an entire production cell, making proactive spare parts planning essential for any maintenance team operating under uptime KPIs.

When conducting a control cabinet inspection or scheduled network audit, it is good practice to verify not only the switch itself but the full communication chain. Check the 24 VDC redundant power supply modules feeding the switch — dual-input redundancy is only effective if both supply rails are healthy. Inspect the industrial Ethernet patch cables and M12 connectors for physical damage, especially in high-vibration environments where connector fatigue is common. If your installation uses fiber uplinks, verify the condition of SFP transceivers or fiber media converters in the same cabinet.

For facilities running Hirschmann RS20 or RS30 Series switches across multiple control zones, maintaining at least one cold-standby unit per network segment is a widely adopted strategy. During the same maintenance window, it is advisable to inspect associated Hirschmann MACH100 Series backbone switches, as these carry aggregated traffic from multiple RS20 edge switches and represent a higher-impact single point of failure.

On the PLC and I/O side, the devices connected through this switch — such as Siemens S7-300 / S7-400 CPU modules, Profibus DP communication modules, and distributed ET 200 remote I/O stations — should be cross-checked during any network-related maintenance event. A switch replacement is an ideal opportunity to verify firmware versions on connected controllers and confirm that Siemens CP 343-1 or CP 443-1 Ethernet communication processors are operating within specification. Similarly, DIN-rail fuse modules and terminal blocks in the same cabinet should be inspected for signs of overheating or loose connections that could cause intermittent network faults misattributed to the switch itself.

For facilities with aging control systems, maintaining a documented spare parts list that includes the RS20-1600T1T1SDAEHH09.0.00 alongside compatible signal isolators, relay output modules, and 24 VDC bus power distribution modules ensures that a single procurement order can address multiple vulnerability points simultaneously, reducing both administrative overhead and lead-time risk.

Strategic Replacement Solutions

The RS20-1600T1T1SDAEHH09.0.00 is a direct form-fit-function replacement for existing RS20 Series units installed in legacy automation systems. Because Hirschmann maintains backward compatibility within the RS20 platform, this unit can be swapped into an existing DIN-rail slot without requiring changes to cabinet wiring, power distribution, or network configuration files — provided the replacement unit is loaded with the same firmware version or a compatible upgrade.

For maintenance teams managing older installations where the original switch has reached end-of-service-life, sourcing an original spare rather than an unverified substitute eliminates the risk of firmware incompatibility, SNMP MIB mismatches, or ring redundancy protocol failures that can occur with non-original replacements. The RS20-1600T1T1SDAEHH09.0.00 preserves full compatibility with Hirschmann’s Industrial HiVision network management software, ensuring that existing monitoring dashboards, SNMP traps, and port mirroring configurations remain intact after replacement.

Planned replacement during a scheduled maintenance window — rather than emergency replacement during an unplanned outage — reduces mean time to repair (MTTR) from hours to minutes. Stocking this unit as a pre-tested, ready-to-deploy spare is the most cost-effective way to protect against the disproportionate production losses that a network-layer failure can cause in tightly integrated automation environments. Every unit shipped by TOPNLMS undergoes full functional testing before dispatch and is covered by a 12-month quality warranty, giving procurement and maintenance teams the confidence to stock with certainty.

Support FAQ

Q1: Is the RS20-1600T1T1SDAEHH09.0.00 an original Hirschmann product?
Yes. TOPNLMS supplies original industrial spare parts. Each unit undergoes full functional testing prior to shipment and is covered by a 12-month quality warranty.

Q2: How do I verify compatibility with my existing RS20 Series installation?
The RS20-1600T1T1SDAEHH09.0.00 is a direct replacement within the RS20 platform. Confirm your existing unit’s order code and firmware version. If you require compatibility verification before purchase, contact our technical team with your current unit’s label information and we will confirm fit prior to order.

Q3: What is included in the pre-shipment testing process?
Every unit is powered on and subjected to a full functional test covering port link negotiation, management interface access, and power input redundancy before dispatch. Units that do not pass testing are not shipped.

Q4: What is your recommended inventory strategy for this switch?
For facilities with 3 or more RS20 Series switches deployed, we recommend maintaining a minimum of one cold-standby unit on-site. For critical process industries or 24/7 production environments, a 1:5 spare ratio is a commonly adopted benchmark. Bulk procurement pricing is available — contact us for a volume quotation.
