Hirschmann OZDPROFI12MG12 Replacement for OZD PROFI Series

Product Overview

Hirschmann OZDPROFI12MG12 Replacement for OZD PROFI Series: Seamless PROFIBUS Network Transition

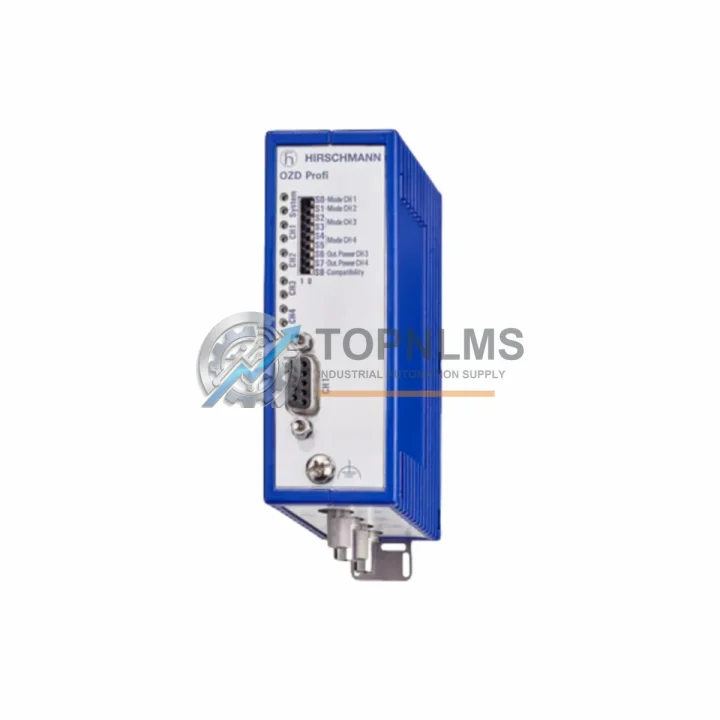

The Hirschmann OZDPROFI12MG12 is a high-performance PROFIBUS fiberoptic repeater operating at 12 Mbps over multimode fiber, designed for demanding industrial automation environments. As legacy PROFIBUS networks age and original OZD PROFI series hardware approaches end-of-life, plant engineers and system integrators face the critical challenge of maintaining network integrity without triggering full-scale rewiring or PLC reprogramming projects. This replacement and upgrade solution is engineered to address exactly that challenge — delivering a drop-in compatible transition path that preserves your existing fiber infrastructure, communication topology, and control logic.

The OZDPROFI12MG12 serves as a direct functional replacement for discontinued or aging OZD PROFI repeater nodes within Siemens SIMATIC S5, S7-300, and S7-400 PROFIBUS DP networks, as well as third-party PLC platforms that rely on IEC 61158-compliant fieldbus architectures. Whether your facility operates a distributed I/O ring, a star-topology segment, or a mixed copper-fiber hybrid bus, this unit integrates without requiring changes to your GSD files, DP master configuration, or segment addressing.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful PROFIBUS fiberoptic repeater replacement rarely involves a single component. In practice, field engineers replacing an OZDPROFI12MG12 node will simultaneously audit adjacent network hardware to ensure the entire segment performs reliably post-migration. Common co-replacement components in OZD PROFI network upgrades include the Hirschmann OZD PROFI 12M G12-1300 for extended-range single-mode fiber segments, and the Hirschmann BAT54-Rail wireless access point where copper-to-wireless bridging is required at remote I/O drops.

On the PLC side, customers migrating from Siemens S7-300 CP 342-5 PROFIBUS communication processors to newer S7-1500 architectures often retain their OZD PROFI fiber backbone during the transition period, using the OZDPROFI12MG12 as a bridging repeater while the DP master is upgraded. Similarly, facilities running Siemens ET 200M distributed I/O racks connected via fiber segments benefit from the OZDPROFI12MG12’s transparent repeater behavior — no changes to the IM 153-2 interface module configuration are needed.

Power distribution within the control cabinet is another consideration. The OZDPROFI12MG12 operates on 24 VDC, making it directly compatible with existing Siemens SITOP PSU100S or equivalent 24 VDC DIN-rail power supplies already installed in the panel. If the cabinet also houses a Hirschmann RS20 managed switch for Ethernet/IP supervisory traffic running in parallel with the PROFIBUS segment, the shared 24 VDC bus simplifies the power architecture and avoids the need for an additional PSU.

For sites where the PROFIBUS segment terminates at a Siemens S7-400 CPU 414-3 DP or similar high-availability controller with redundant DP interfaces, the OZDPROFI12MG12 supports both ring and line fiber topologies, enabling the redundant path to remain active during hot-swap maintenance. Technicians should also verify that any PROFIBUS termination resistors and bus connectors (such as Siemens 6ES7 972-0BA52-0XA0) at the RS-485 segment ends are correctly terminated before commissioning the replacement unit.

Retrofit Guidance FAQ

Q: Do I need to reconfigure my DP master after replacing the repeater?
No. The OZDPROFI12MG12 is a transparent repeater — it does not appear as a DP slave in the network configuration. Your existing GSD-based hardware configuration in STEP 7 or TIA Portal requires no modification.

Q: Can I reuse my existing multimode fiber cables?
Yes. The unit uses standard ST/BFOC connectors compatible with 62.5/125 µm and 50/125 µm multimode fiber. No fiber re-termination is required in most installations.

Q: Is the RS-485 wiring pinout identical to the original OZD PROFI unit?
Yes. The 9-pin Sub-D connector follows the standard PROFIBUS DP pinout (EN 50170). Existing bus cables and connectors can be reconnected directly without modification.

Q: What baud rates are supported?
The OZDPROFI12MG12 supports all standard PROFIBUS DP baud rates from 9.6 kbps up to 12 Mbps. The unit auto-detects the baud rate — no manual DIP switch configuration is required for baud rate selection.

Q: How much cabinet space does the replacement unit require?
The unit mounts on a standard 35 mm DIN rail with the same physical footprint as the original OZD PROFI repeater, ensuring it fits within existing control cabinet layouts without panel modifications.

Q: What is the recommended commissioning procedure?
Power down the PROFIBUS segment, remove the legacy repeater, mount the OZDPROFI12MG12 on the DIN rail, reconnect the fiber and RS-485 cables, verify termination at both segment ends, then power up and confirm LED status indicators show active link on both fiber ports before resuming PLC operation.

Warranty Assurance

Every Hirschmann OZDPROFI12MG12 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including optical power output testing, RS-485 signal integrity checks, and power supply input validation. Units are shipped in anti-static protective packaging with full documentation.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit dispatch within 3 business days. Our technical support team is available to assist with installation queries, commissioning troubleshooting, and compatibility verification before and after purchase. Stock is maintained in Xiamen, China, with express international shipping options available to minimize your plant downtime.

For volume procurement, OEM integrators, and MRO purchasing teams, we offer consolidated invoicing, advance replacement programs, and dedicated account management. Contact us to discuss lead times, quantity pricing, and consignment stock arrangements tailored to your maintenance schedule.
