Hirschmann OZD PROFI 12M G12 PRO Upgrade Solution

Product Overview

Hirschmann OZD PROFI 12M G12 PRO Upgrade Solution: Seamless Transition from Legacy PROFIBUS Fiber Networks

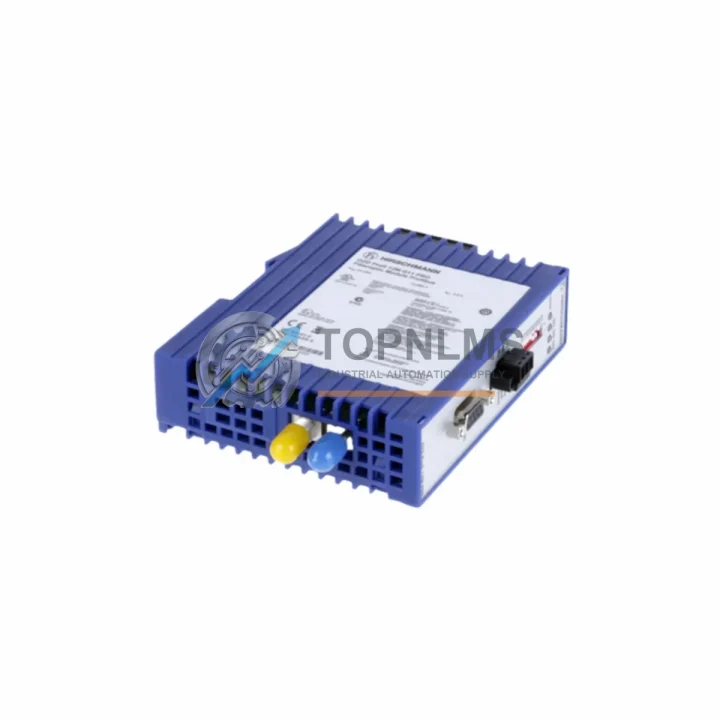

The Hirschmann OZD PROFI 12M G12 PRO is a high-performance PROFIBUS DP fiber optic repeater and converter designed for industrial automation environments where signal integrity, transmission distance, and network reliability are non-negotiable. As legacy PROFIBUS copper-based networks age and original OZD PROFI series units approach end-of-service, plant engineers and system integrators increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, communication protocols, and control cabinet layouts without triggering a full system redesign.

This product page is dedicated to supporting engineers and procurement teams planning a controlled migration from discontinued or aging PROFIBUS optical interface hardware to the OZD PROFI 12M G12 PRO — covering wiring compatibility, communication protocol continuity, physical installation constraints, power supply requirements, and commissioning guidance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PROFIBUS fiber optic network to the OZD PROFI 12M G12 PRO rarely involves replacing a single component in isolation. In practice, the upgrade process touches multiple layers of the control architecture — from the field device wiring and I/O modules through to the master controller and HMI. Understanding which adjacent components are involved helps procurement teams plan a complete bill of materials and avoid secondary delays during commissioning.

In most retrofit projects, the OZD PROFI 12M G12 PRO is installed alongside a Siemens SIMATIC S7-300 or S7-400 CPU acting as the PROFIBUS DP master. The fiber optic segment connects the master rack to remote I/O stations — typically Siemens ET 200M or ET 200S distributed I/O racks — where the existing IM 153 or IM 151 interface modules continue to operate without firmware changes. The OZD PROFI 12M G12 PRO transparently bridges the optical segment, so the PLC program, GSD file configuration, and DP address assignments remain unchanged.

On the power distribution side, the 24 VDC supply feeding the OZD PROFI 12M G12 PRO is typically sourced from a Siemens SITOP PSU100S or equivalent rail-mount power supply already present in the control cabinet. No additional power feed is required, and the low current draw of the converter (typically under 200 mA) means existing circuit protection is adequate.

Where the legacy installation used a Hirschmann OZD PROFI 12M G12 (the predecessor without the PRO designation) or an earlier OZD PROFI 12M G4 four-port variant, the physical replacement is straightforward: the DIN rail footprint, ST fiber connectors, and Sub-D RS-485 interface are mechanically identical. Engineers have confirmed that existing fiber patch cables — typically 62.5/125 µm multimode ST-to-ST — can be reused without re-termination, which significantly reduces on-site labor time.

For installations where the PROFIBUS segment also includes a Hirschmann OZD PROFI 12M EL (electrical repeater) at an intermediate node, the OZD PROFI 12M G12 PRO can coexist on the same segment without protocol conflicts. The two units operate transparently at the physical layer, and the DP master continues to see a single logical bus regardless of the mixed optical/electrical topology.

In control cabinets where space is constrained, the compact form factor of the OZD PROFI 12M G12 PRO is a practical advantage. Unlike some third-party alternatives that require wider DIN rail spacing or additional terminal blocks, the G12 PRO fits within the same slot previously occupied by the legacy unit. If the cabinet also houses a Siemens CP 342-5 communications processor or a Profichip VPC3+C-based DP slave ASIC board, no physical rearrangement is necessary.

For sites upgrading from older Siemens S5 systems with Siemens 6ES5 095-8MA02 or similar CPU modules connected via PROFIBUS, the migration path typically involves retaining the OZD PROFI fiber segment while replacing the S5 CPU with an S7-300 and a CP 342-5 DP master module. In this scenario, the OZD PROFI 12M G12 PRO serves as the stable optical backbone that survives the controller swap, eliminating the need to re-cable the entire field device network.

Finally, where the system includes an HMI panel — such as a Siemens TP700 Comfort or KTP900 Basic — connected to the same PROFIBUS segment via a DP slave interface, the OZD PROFI 12M G12 PRO’s transparent operation ensures that HMI tag communication, alarm logging, and recipe management continue without interruption after the fiber converter swap.

Retrofit Guidance FAQ

Q: Do I need to modify my PROFIBUS GSD file or DP address configuration after replacing the fiber converter?
No. The OZD PROFI 12M G12 PRO operates transparently at the PROFIBUS physical layer. It does not appear as a DP node and does not consume a DP address. Your existing GSD file, hardware configuration in STEP 7 or TIA Portal, and all DP slave addresses remain unchanged.

Q: Can I reuse my existing ST fiber patch cables?
Yes, provided they are 62.5/125 µm multimode fiber with ST connectors. The OZD PROFI 12M G12 PRO uses standard ST ports. Clean the fiber end faces before reconnection and verify optical power budget if the cable run exceeds 2 km.

Q: What happens to baud rate detection during the swap?
The OZD PROFI 12M G12 PRO features automatic baud rate detection across the full PROFIBUS range (9.6 kbps to 12 Mbps). On power-up, it synchronizes to the active bus baud rate within seconds. No manual DIP switch configuration is required in standard installations.

Q: Is the RS-485 wiring on the copper segment compatible?
Yes. The Sub-D 9-pin connector pinout and terminal block assignments follow the standard PROFIBUS EN 50170 specification. Existing copper segment cables, bus termination resistors, and cable shields can be reconnected without modification.

Q: How much physical space does the unit require in the control cabinet?
The OZD PROFI 12M G12 PRO mounts on a standard 35 mm DIN rail and occupies approximately 45 mm of rail width. It is mechanically interchangeable with the previous OZD PROFI 12M G12 and OZD PROFI 12M G12 PRO revisions. No additional clearance is required for ventilation under normal operating conditions.

Q: What commissioning steps are required after installation?
Power on the unit and verify the LED status indicators: the PWR LED should illuminate green, and the optical TX/RX LEDs should show activity within seconds of the DP master initiating bus communication. If the BUS FAULT LED illuminates, check fiber connector seating, verify baud rate lock, and confirm that bus termination is active at both ends of the copper segment.

Q: Can this unit be used in a redundant PROFIBUS ring topology?
The OZD PROFI 12M G12 PRO supports optical ring redundancy when used in conjunction with compatible OZD PROFI series units at other nodes. Consult the Hirschmann OZD PROFI product family documentation for ring configuration requirements and maximum node counts.

Warranty Assurance

Every Hirschmann OZD PROFI 12M G12 PRO unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Before dispatch, each unit undergoes a functional pre-shipment inspection that includes power-on verification, optical port continuity check, and RS-485 interface validation. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit — not a repair-and-return process — to minimize your system downtime. Replacement units are dispatched within 2 business days of claim confirmation. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (CST, Monday–Friday).

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is reinforced for international air and sea freight. Lead time for in-stock units is typically 3–5 business days to most destinations.

We understand that unplanned downtime in an industrial facility carries significant operational and financial consequences. Our inventory of OZD PROFI series components is maintained specifically to support urgent replacement scenarios, and we prioritize order processing for customers with active production line outages.
