HIMA F3417A Ruggedized Safety Relay Module for Harsh Environments

Product Overview

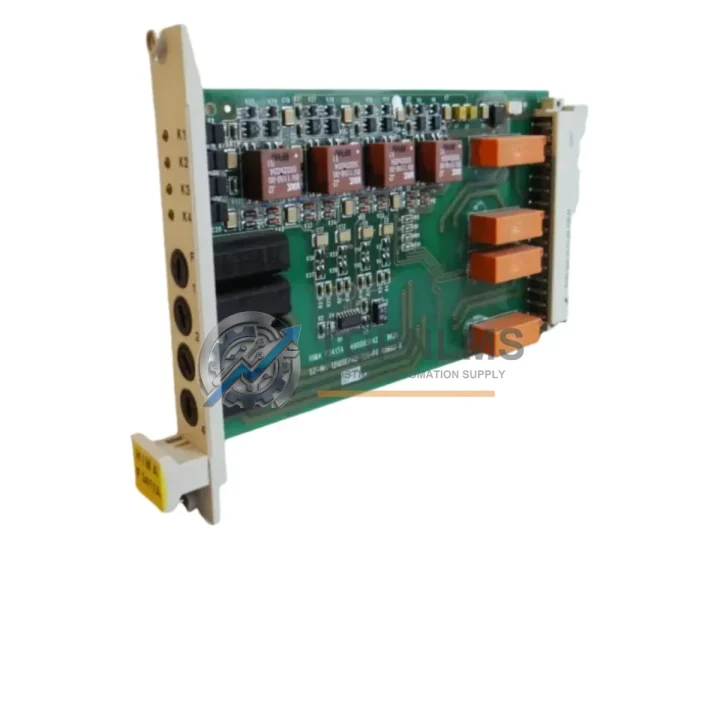

HIMA F3417A Ruggedized Safety Relay Module for Harsh Environments

The HIMA F3417A is a fail-safe relay amplifier module engineered for the most demanding industrial safety applications. As a core component of the HIMA F3000 Safety Controller series, the F3417A delivers deterministic, SIL 2-rated output switching in environments where conventional relay modules would fail — including high-temperature process areas, moisture-laden atmospheres, dust-heavy production floors, and facilities subject to continuous mechanical vibration or electromagnetic interference. Designed and manufactured in Germany to IEC 61508 functional safety standards, this module is the backbone of safety instrumented systems (SIS) across oil and gas, petrochemical, power generation, mining, water treatment, and heavy metallurgical industries.

In continuous production lines where unplanned downtime carries six-figure hourly costs, the F3417A provides the deterministic switching response and diagnostic coverage that plant engineers depend on. Its fail-safe architecture ensures that any internal fault drives outputs to a defined safe state, protecting personnel, equipment, and process integrity simultaneously. Whether integrated into a new F3000 safety controller rack or deployed as a replacement module in an existing SIS, the F3417A maintains full backward compatibility with the F3000 platform, eliminating costly re-engineering during maintenance windows.

Rugged Specifications Table

Comprehensive Protection Solutions

The F3417A does not operate in isolation — it is one element of a tightly integrated safety architecture. In a typical F3000-based safety instrumented system, the F3417A relay amplifier module works in concert with the HIMA F3236 digital input module, which acquires field signals from pressure transmitters, gas detectors, and emergency stop circuits. The F3330 analog input module handles 4–20 mA process signals from temperature and flow sensors, feeding the F3000 CPU modules — such as the F3 DIO 20/8 01 — with the real-time data required for safety logic execution.

On the output side, the F3417A drives final control elements including solenoid valves, motor contactors, and safety relays in the field. In applications requiring higher current switching, it is often paired with HIMA F3 DO 8/4 01 digital output modules to distribute load across the safety rack. For communication-intensive installations, the F3000 platform supports PROFIBUS DP and Modbus RTU via dedicated HIMA communication modules, enabling the safety controller to exchange diagnostic data with the plant DCS — typically a Siemens SIMATIC S7-400H or ABB System 800xA — without compromising the safety network’s integrity.

Power supply redundancy is equally critical. The F3000 rack is typically fed by HIMA F3 PS 24V power supply modules, which provide regulated, monitored DC power to all I/O modules including the F3417A. In hazardous area installations classified as Zone 1 or Zone 2 under ATEX/IECEx, the F3417A is installed in purged and pressurized Ex p enclosures, with Zener barriers or galvanic isolators — such as the P+F KFD2-SR2-Ex1.W series — protecting field wiring from intrinsically safe circuits. Terminal modules and marshalling panels complete the wiring infrastructure, ensuring clean, labeled, and maintainable connections throughout the control cabinet.

Application in Critical Infrastructure

In offshore oil and gas platforms, the HIMA F3417A is deployed in emergency shutdown (ESD) systems and fire and gas (F&G) detection panels, where SIL 2 certification is a regulatory requirement under IEC 61511. The module’s relay outputs directly actuate subsea wellhead control valves and topside blowdown valves, providing the deterministic response times — typically under 10 ms — demanded by process hazard analyses (PHA) and safety requirement specifications (SRS).

In coal-fired and gas-fired power generation facilities, the F3417A is integrated into turbine protection systems and boiler management systems (BMS), where it monitors burner flame signals and drives fuel shutoff valves. Its high diagnostic coverage ensures that spurious trips are minimized while genuine fault conditions are acted upon without delay — a balance that is critical in baseload generation where availability and safety must coexist.

Underground mining operations present some of the harshest environments for electronic control equipment: ambient temperatures fluctuate widely, coal dust and silica particulate are omnipresent, and mechanical shock from blasting and heavy machinery is continuous. The F3417A’s robust construction and IEC 60068-2-6 vibration compliance make it a proven choice for conveyor belt safety systems, ventilation fan control, and methane gas monitoring panels in these environments.

In municipal and industrial water treatment plants, the F3417A controls high-integrity pump shutdown systems and chemical dosing interlocks, where a failure to safe state prevents both environmental contamination and personnel exposure to hazardous chemicals. Metallurgical plants — including electric arc furnace (EAF) steel mills and aluminum smelters — rely on the F3417A in crane overload protection systems and furnace tapping control panels, where electromagnetic interference from high-current bus bars would compromise lesser-grade modules.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the HIMA F3417A?
The 12-month warranty covers all manufacturing defects, component failures, and functional non-conformance under normal operating conditions. If the module fails to perform its specified relay switching or diagnostic functions within the warranty period, we will provide a replacement or full refund. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each F3417A module tested before shipment?
Every HIMA F3417A unit undergoes a multi-stage inspection protocol prior to dispatch: visual inspection for physical damage, power-on functional test verifying relay output switching, and continuity verification of all I/O terminals. Units sourced from decommissioned systems are additionally subjected to insulation resistance testing. A test report is available upon request for quality-critical procurement processes.

Q3: Is the F3417A compatible with my existing HIMA F3000 safety controller rack?
Yes. The F3417A is a standard relay amplifier output module for the HIMA F3000 platform and is backward compatible with all F3000 series racks and CPU configurations. No firmware changes or rack modifications are required for direct replacement. If you are integrating the module into a system running HIMA ELOP II Factory or HIMA ELOP II NT engineering software, the module is recognized automatically upon rack configuration scan.

Q4: Can you support long-term or repeat supply of the F3417A for ongoing maintenance programs?
Absolutely. We maintain standing inventory of HIMA F3000 series modules specifically to support plant maintenance, turnaround, and emergency replacement programs. For customers with scheduled maintenance windows or annual spare parts budgets, we offer priority reservation and advance procurement agreements. Contact us at [email protected] or +86 18359293191 to discuss your supply continuity requirements.
