Hengstler HC202500/0XX0XM5 Original Industrial Spare HC20 Compatible: Ensuring System Stability in Demanding Automation Environments

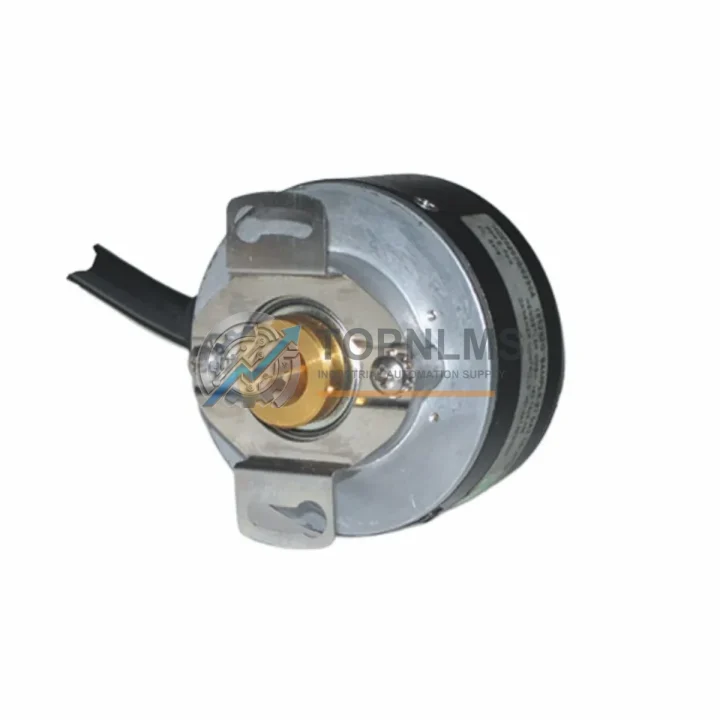

The Hengstler HC202500/0XX0XM5 is a precision incremental rotary encoder from the HC20 series, engineered for continuous operation in industrial automation, motion control, and process measurement applications. With a resolution of 2500 pulses per revolution (PPR) and HTL (High Transistor Logic) push-pull output, this encoder delivers reliable position and speed feedback in environments where signal integrity and mechanical durability are non-negotiable. Whether you are managing a planned maintenance shutdown, responding to an unscheduled line stoppage, or building a strategic spare parts inventory, the HC202500/0XX0XM5 represents a direct, original-specification replacement that eliminates compatibility risk and accelerates return-to-production timelines.

Sourced as an original Hengstler component, this encoder is fully compatible with existing HC20-series mounting configurations, shaft couplings, and cable assemblies. It integrates seamlessly into servo drive systems, CNC machine tool axes, conveyor positioning systems, and packaging line synchronization circuits without requiring firmware reconfiguration or mechanical adaptation. For maintenance engineers managing aging control systems, the HC202500/0XX0XM5 provides a like-for-like replacement path that preserves the original system architecture and avoids costly re-engineering.

Critical Technical Specs

Preventive Maintenance Strategy

Rotary encoders are among the most failure-sensitive components in a motion control system. A degraded or failed encoder on a servo axis does not merely cause positioning errors — it can trigger drive faults, emergency stops, and full line shutdowns that cascade across interconnected production cells. When scheduling a maintenance window to inspect or replace the HC202500/0XX0XM5, experienced maintenance engineers treat the encoder replacement as the starting point for a broader system health audit rather than an isolated task.

Begin by inspecting the encoder cable and connector assembly. The shielded multi-core cable connecting the HC202500/0XX0XM5 to the servo drive or PLC input card is subject to continuous flexing, oil contamination, and connector oxidation. A cable with compromised shielding will introduce noise into the A/B/Z signal channels, causing intermittent count errors that are difficult to diagnose without an oscilloscope. Replacing the encoder cable at the same time as the encoder body eliminates this hidden failure mode and avoids a repeat maintenance call within weeks.

Next, verify the condition of the servo drive or frequency inverter receiving the encoder feedback. In systems where the HC20 encoder feeds a variable frequency drive (VFD) or servo amplifier, the encoder input card or encoder interface module within the drive should be inspected for signs of capacitor aging, terminal corrosion, or firmware faults. If the drive has been in service for more than five years, it is prudent to stock a replacement encoder input module alongside the HC202500/0XX0XM5 spare.

The power supply module feeding the encoder circuit deserves equal attention. HTL encoders operating at 24 V DC are sensitive to supply voltage ripple. A 24 V DC power supply module with aging filter capacitors may deliver nominal voltage under no-load conditions but exhibit significant ripple under load, causing signal instability at the encoder output. Checking the power supply output with a multimeter or oscilloscope during the maintenance window takes minutes and can prevent encoder misdiagnosis.

For systems using the HC202500/0XX0XM5 in conjunction with a PLC digital input module for speed or position counting, inspect the input module’s counter channels for correct parameterization and terminal integrity. High-speed counter input modules used with 2500 PPR encoders at elevated shaft speeds must be rated for the resulting pulse frequency — a mismatch here causes count saturation and false position data. If the PLC input module is from an aging product family approaching end-of-life, sourcing a replacement module as a cold spare is a sound inventory decision.

In control cabinets housing the associated drive and PLC hardware, inspect terminal blocks and DIN rail-mounted relay modules in the encoder signal circuit. Loose terminal connections on signal-level wiring are a leading cause of intermittent encoder faults that are misattributed to the encoder itself. Tightening terminals, replacing any discolored or heat-damaged terminal blocks, and verifying the integrity of signal isolators or pulse multipliers in the circuit will extend the service life of the new HC202500/0XX0XM5 significantly. Where signal isolation is required between the encoder and the control system, a DIN-rail signal isolator module should be verified for correct input impedance and output signal levels compatible with the HTL output of the HC20 series.

Finally, if the machine uses an HMI panel to display position or speed data derived from the encoder, verify that the HMI’s communication with the PLC is stable and that the displayed values update correctly after encoder replacement. An HMI that shows frozen or erratic position data after a confirmed encoder replacement often indicates a PLC program parameter that references the old encoder’s scaling factor and requires updating.

Strategic Replacement Solutions

The HC202500/0XX0XM5 is a direct replacement for earlier HC20-series encoder variants that may have been specified in original machine documentation under slightly different ordering codes. Hengstler’s HC20 platform has maintained dimensional and electrical compatibility across multiple product generations, meaning that the HC202500/0XX0XM5 can replace older 2500 PPR HTL variants without mechanical modification to the machine’s encoder mounting bracket or shaft coupling.

For maintenance teams managing a mixed fleet of machines with different encoder resolutions, the HC20 series offers a rationalization opportunity. By standardizing on the HC202500/0XX0XM5 as the site-wide spare for all 2500 PPR HTL encoder positions, procurement teams can reduce the number of unique spare part numbers held in stock, simplify reorder processes, and reduce the risk of incorrect part substitution during emergency maintenance. A single verified spare held in the maintenance store can cover multiple machine types, reducing both inventory carrying cost and the administrative burden of managing multiple encoder part numbers.

In legacy systems where the original encoder specification called for an obsolete model that is no longer available from the original manufacturer, the HC202500/0XX0XM5 provides a technically sound upgrade path. The HTL output is compatible with the vast majority of industrial drive and PLC encoder input circuits designed for push-pull signal levels, and the 2500 PPR resolution is a standard value supported by virtually all motion control firmware without requiring pulse scaling adjustments. This makes the HC202500/0XX0XM5 one of the most versatile and low-risk encoder replacement choices available for industrial maintenance applications.

All units supplied by TOPNLMS are tested prior to dispatch, shipped with protective packaging appropriate for precision encoder components, and covered by a 12-month warranty against manufacturing defects. Expedited shipping options are available to support urgent maintenance requirements.

Support FAQ

Q1: Is the HC202500/0XX0XM5 compatible with my existing HC20-series mounting and cable assembly?
Yes. The HC202500/0XX0XM5 conforms to the HC20 series standard flange dimensions and shaft diameter, making it a direct mechanical replacement for other HC20-series encoders with the same physical configuration. The HTL push-pull output is electrically compatible with standard industrial encoder input circuits. We recommend verifying the cable connector pinout against your machine’s wiring diagram before installation.

Q2: How is the unit tested before shipment?
Each HC202500/0XX0XM5 unit is functionally tested prior to dispatch to verify output signal integrity across all channels (A, B, Z) and confirm that the unit meets the specified 2500 PPR resolution. Units are shipped in anti-static, impact-protective packaging to prevent transit damage to the precision bearing assembly and optical disc.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overspeed operation, or exposure to conditions outside the specified operating range. To initiate a warranty claim, contact TOPNLMS with the order reference and a description of the fault. We will arrange return logistics and provide a replacement or refund upon verification.

Q4: Can I order multiple units for strategic spare parts inventory?
Yes. TOPNLMS supports bulk and multi-unit orders for maintenance inventory planning. Holding one or two HC202500/0XX0XM5 units as cold spares is a cost-effective strategy for facilities operating multiple machines with HC20-series encoders, as it eliminates lead-time risk during unplanned shutdowns. Contact us for volume pricing and availability confirmation.
