Hengstler HC202500/0XX0AJ2 Replacement for HC20 Series

Product Overview

Hengstler HC202500/0XX0AJ2 Replacement for HC20 Series: Seamless Transition & Compatible Upgrade

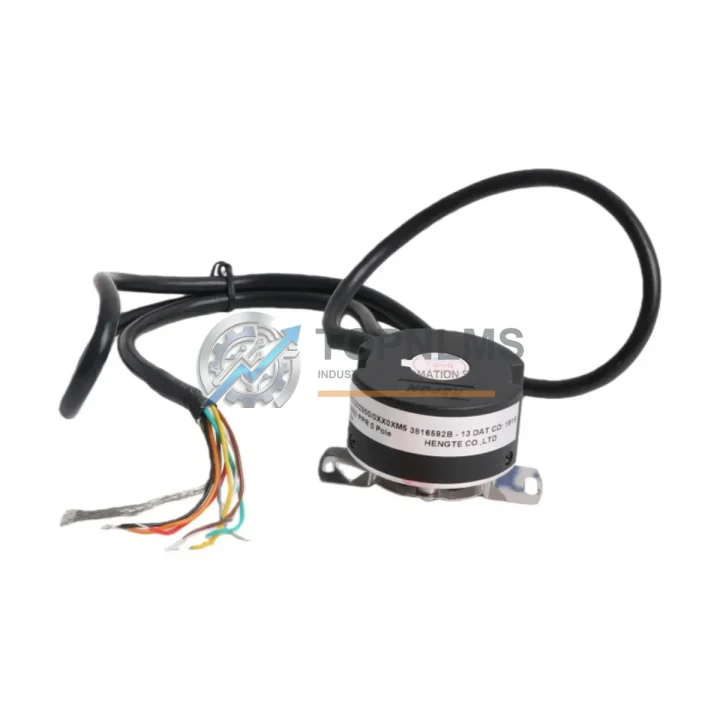

The Hengstler HC202500/0XX0AJ2 is a high-resolution incremental rotary encoder from the HC20 Series, rated at 2500 pulses per revolution (PPR) and widely deployed in precision motion control, CNC machine tools, servo drive feedback loops, and industrial automation systems. As legacy installations age and original units reach end-of-service life, sourcing a verified replacement or compatible upgrade becomes a critical priority for maintenance engineers and procurement teams alike.

At TOPNLMS, we supply the HC202500/0XX0AJ2 as a direct replacement unit — fully tested, original-specification, and ready for immediate installation. Whether you are replacing a failed encoder on a Siemens SINUMERIK-controlled machining center, retrofitting a Fanuc servo axis, or upgrading a legacy Bosch Rexroth drive system, this encoder integrates without requiring mechanical re-engineering or signal conditioning modifications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder replacement rarely involves the encoder alone. In most retrofit and modernization projects, the HC202500/0XX0AJ2 is installed alongside a broader set of components that must be verified for compatibility. When migrating from an older Hengstler RI58-O or RI76 series encoder, engineers typically need to re-terminate the feedback cable to match the new M23 connector pinout — a task made straightforward with a pre-wired Hengstler encoder cable assembly or a universal M23-to-D-Sub adapter harness.

For servo drive integration, the encoder signal is fed directly into the feedback port of drives such as the Siemens SINAMICS S120 drive module or the Lenze i550 servo inverter. Both platforms accept incremental A/B/Z signals natively, and the 2500 PPR resolution of the HC202500/0XX0AJ2 is well within the interpolation range of their encoder evaluation boards. If the existing drive uses a Heidenhain EnDat or SSI interface, a signal converter module — such as a Wachendorff WDGA interface converter — bridges the incremental output to the drive’s digital input.

In CNC retrofit applications, the encoder is often paired with a Siemens SINUMERIK 808D or 828D CNC controller, where the axis parameter for encoder resolution (MD31020) must be updated to reflect the new 2500 PPR value. Similarly, when replacing encoders on Fanuc α-series servo motors, the Fanuc servo amplifier parameter settings for feedback pulse count must be reconfigured via the FANUC LADDER-III programming tool or the CNC parameter screen.

Control cabinet space is rarely a constraint with the HC20 Series, as the compact synchro-flange housing fits standard 58 mm encoder cutouts without modification. However, if the legacy installation used a larger 63 mm flange encoder such as the Kübler 8.5820 or a Baumer HOG 86, a flange adapter plate is recommended to maintain mechanical alignment without re-drilling the motor endplate.

For applications requiring signal isolation — common in high-noise environments such as frequency converter cabinets or welding cells — a DIN-rail mounted signal isolator such as the Phoenix Contact MCR-SL-IFF-2I-OLP provides clean, galvanically isolated incremental pulse outputs to the PLC or motion controller. This is particularly relevant when the HC202500/0XX0AJ2 is used in conjunction with a Beckhoff EL5101 incremental encoder terminal or a Siemens ET 200SP encoder input module.

Retrofit Guidance FAQ

Q: Is the HC202500/0XX0AJ2 a direct wiring replacement for my existing HC20 encoder?
A: In most cases, yes. The HC20 Series uses a standardized pinout on the M23 connector. Verify the cable color coding against the Hengstler HC20 wiring diagram (available on request) before terminating. If your existing cable uses a legacy 12-pin connector, a pigtail adapter is required.

Q: Do I need to change any PLC or drive parameters after replacement?
A: If you are replacing a unit with the same 2500 PPR specification, no parameter changes are needed. If the original encoder had a different PPR (e.g., 1000 or 2048), update the encoder resolution parameter in your servo drive or motion controller accordingly. For Siemens drives, this is typically parameter p0408; for Lenze drives, refer to parameter C0010.

Q: Will the encoder fit in the same physical space as my old unit?
A: The HC20 Series uses a 58 mm synchro flange, which is an industry-standard form factor. If your existing encoder uses the same flange diameter and shaft size (6 mm), the HC202500/0XX0AJ2 is a mechanical drop-in. For different shaft diameters, use a flexible bellows coupling to accommodate minor misalignment.

Q: What communication protocols does this encoder support?
A: The HC202500/0XX0AJ2 outputs standard incremental A, B, and Z (index) pulse signals compatible with TTL and HTL logic levels. It does not natively support fieldbus protocols such as PROFIBUS, EtherCAT, or CANopen. For fieldbus-integrated encoder feedback, consider pairing with a gateway module or selecting a Hengstler absolute encoder from the AC58 or AD58 series.

Q: Can I use this encoder as a replacement for a discontinued model from another brand?
A: Yes, provided the mechanical interface (flange, shaft diameter, mounting), electrical interface (supply voltage, output signal type), and resolution (PPR) are compatible. TOPNLMS can provide a cross-reference assessment upon request — contact [email protected] with your original part number.

Warranty Assurance

Every HC202500/0XX0AJ2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including signal output testing at rated speed, supply voltage range confirmation, and mechanical shaft runout inspection. Units that do not meet Hengstler factory specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our average response time for warranty inquiries is within 1 business day. Expedited replacement shipping is available for customers with critical production downtime situations.

For procurement teams, we can provide a certificate of conformity, packing list, and commercial invoice with HS code declaration for customs clearance. Stock is held in Xiamen, China, with DHL Express and FedEx International Priority available for next-flight-out delivery to most industrial regions globally.

To place an order, request a quotation, or submit a cross-reference inquiry, contact our technical sales team directly.
