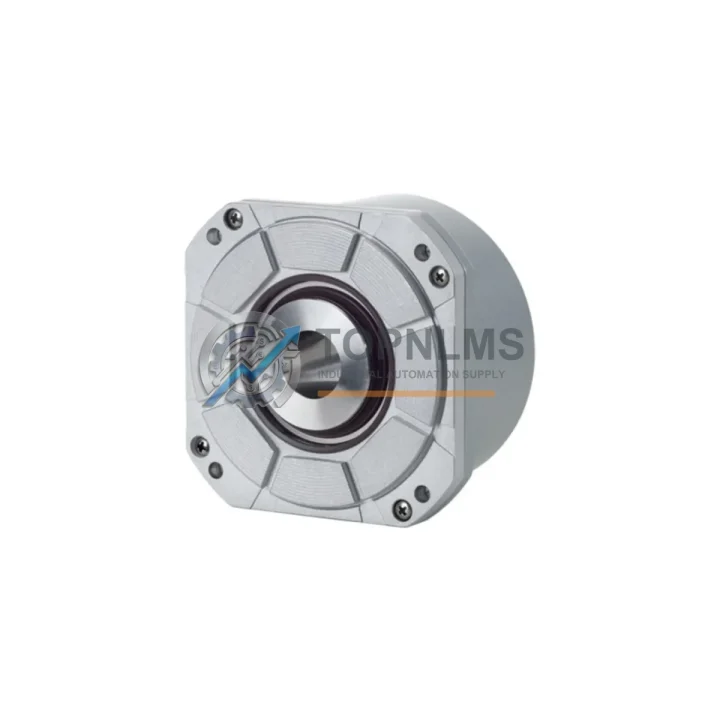

HEIDENHAIN RCN 223 16384 03S17-0D Original Industrial Spare RCN 200 Compatible

Product Overview

HEIDENHAIN RCN 223 16384 03S17-0D Original Industrial Spare RCN 200 Compatible: Ensuring System Stability in Precision Motion Control

In high-precision manufacturing and industrial automation environments, the integrity of your position feedback system is non-negotiable. The HEIDENHAIN RCN 223 16384 03S17-0D is an original absolute rotary encoder from the renowned RCN 200 Series, engineered for demanding closed-loop control applications in CNC machining centers, precision grinding systems, rotary tables, and multi-axis servo drive platforms. When a position encoder fails or degrades, the downstream impact on machine accuracy, cycle time, and production yield can be severe. Stocking a verified original spare — tested, certified, and backed by a 12-month warranty — is the most effective insurance against unplanned downtime.

This unit features a high-resolution absolute position output with 16,384 signal periods per revolution, eliminating the need for reference-point traversal after power-up. The 03S17-0D variant designation specifies the mechanical interface, shaft configuration, and electrical output protocol, making it a direct replacement for worn or failed units in existing HEIDENHAIN-equipped machine tools without any software reconfiguration or parameter adjustment.

Critical Technical Specs

Preventive Maintenance Strategy

A rotary encoder failure rarely occurs in isolation. In a typical CNC machining center or precision rotary axis, the encoder is one node in a tightly coupled feedback chain. When scheduling a planned maintenance window or responding to an unplanned stoppage, experienced maintenance engineers know that replacing only the failed encoder without inspecting adjacent components is a missed opportunity — and a risk factor for the next breakdown.

When replacing the RCN 223 16384 03S17-0D, begin by inspecting the EnDat 2.2 feedback cable assembly connecting the encoder to the servo drive or controller. Cable shielding degradation and connector pin corrosion are leading causes of intermittent position errors that are often misdiagnosed as encoder failure. At the same time, verify the condition of the HEIDENHAIN PWM 20 or PWM 21 power supply module feeding the encoder circuit — voltage ripple or brownout conditions accelerate encoder wear and can corrupt absolute position data on power-up.

For machines running HEIDENHAIN TNC 640 or iTNC 530 controllers, it is advisable to simultaneously inspect the HSCI bus coupler module and any associated UEC 11x or UMC 11x controller expansion cards, as these handle the EnDat communication protocol decoding. A marginal bus coupler can cause sporadic position alarms even after a new encoder is installed, leading to repeat service calls. While the control cabinet is open, check the 24 VDC auxiliary power supply module and the terminal strip wiring blocks on the encoder feedback circuit — loose terminations are a common source of noise-induced position drift.

In rotary table and trunnion axis applications, the encoder is typically mounted adjacent to the torque motor stator assembly and shares the same thermal environment. Inspect the motor’s temperature sensor (KTY or PT100) and its associated signal conditioning module during the same service interval. Overtemperature events that go undetected due to a faulty thermal sensor are a primary cause of premature encoder bearing failure. For multi-axis systems, cross-reference the maintenance log against the axis-specific servo amplifier module — HEIDENHAIN-compatible drives from the same control cabinet should be inspected for DC bus capacitor aging and IGBT thermal performance at the same time.

Finally, if the machine operates in a coolant-rich or chip-laden environment, verify the integrity of the encoder mounting flange seal and consider stocking a spare stator coupling set alongside the encoder itself. Coupling fatigue is a common secondary failure mode in high-cycle rotary axis applications and can cause mechanical runout that degrades encoder signal quality long before the encoder itself fails electrically.

Strategic Replacement Solutions

The HEIDENHAIN RCN 200 Series was introduced to replace earlier RCN 700 and RON 700 series angle encoders in high-accuracy rotary axis applications. The RCN 223 16384 03S17-0D is a direct functional successor to legacy models such as the RCN 723 and RON 285, offering the same mechanical bolt pattern and shaft interface while upgrading the output protocol from 11 µA sinusoidal to pure EnDat 2.2 serial — a transition that eliminates interpolation electronics in the drive and reduces wiring complexity.

For maintenance teams managing aging machine fleets, this compatibility means the RCN 223 can be retrofitted into machines originally equipped with older HEIDENHAIN angle encoders without mechanical modification, provided the servo drive or controller supports EnDat 2.2 input. This extends the serviceable life of precision machine tools by 5–10 years, deferring capital expenditure on new equipment while maintaining positioning accuracy within original OEM specifications.

Procurement teams should note that HEIDENHAIN encoder lead times from the OEM can extend to 8–16 weeks during peak demand periods. Maintaining a single unit of the RCN 223 16384 03S17-0D in local safety stock eliminates this exposure entirely. At TOPNLMS, each unit is individually tested for signal integrity, absolute position accuracy, and EnDat communication compliance before shipment, with a full inspection report available on request. Units are shipped in original anti-static packaging with all mechanical interfaces protected.

Support FAQ

Q1: Is this unit a genuine original HEIDENHAIN part or an aftermarket replacement?
This is a genuine original HEIDENHAIN RCN 223 16384 03S17-0D. We do not supply aftermarket, clone, or refurbished units under this listing. Each unit is sourced from authorized distribution channels and carries the original HEIDENHAIN part markings and serial number. A 12-month warranty is provided from the date of shipment.

Q2: How do I verify compatibility with my existing machine controller before ordering?
Compatibility depends on two factors: the mechanical interface (hollow shaft bore diameter and stator coupling bolt pattern) and the electrical interface (EnDat 2.2 serial protocol). The 03S17-0D variant is designed for a specific shaft diameter and coupling configuration — please confirm your existing encoder’s full part number and cross-reference against your machine’s axis specification sheet. If you need assistance, send your machine model and existing encoder part number to [email protected] and our technical team will confirm compatibility before you order.

Q3: What pre-shipment testing is performed on each unit?
Every RCN 223 16384 03S17-0D unit undergoes electrical continuity testing, EnDat 2.2 communication protocol verification, absolute position output validation across the full 360° range, and mechanical runout inspection before packaging. Units that do not meet HEIDENHAIN factory specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q4: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, signal output failures, and EnDat communication faults under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, mechanical impact, or operation outside the specified environmental parameters. Warranty claims are processed within 5 business days of receiving the returned unit, with replacement shipment or full refund at the buyer’s option.
