Heidenhain 785C.0003-18000 Encoder 785C Series

Product Overview

Heidenhain 785C.0003-18000 Encoder 785C Series – Industrial Spare for System Stability

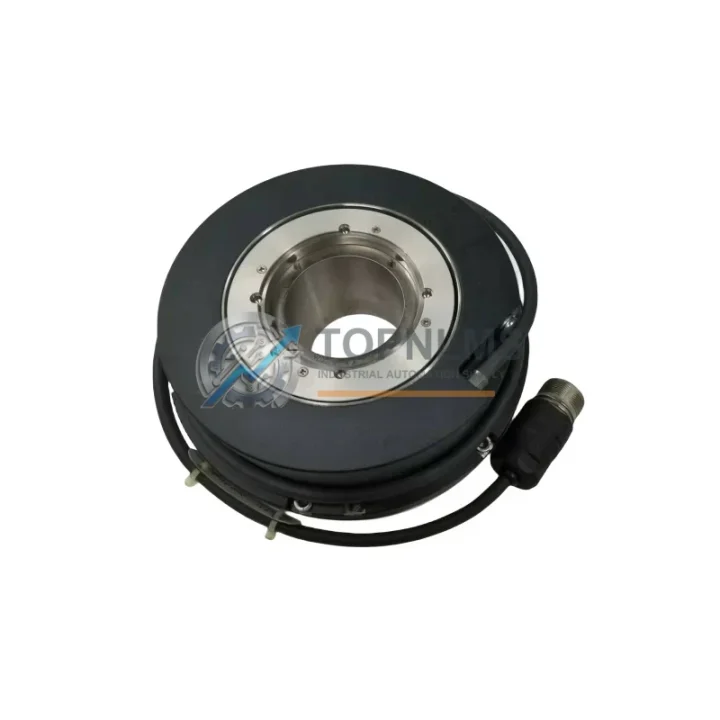

The Heidenhain 785C.0003-18000 (311262-01) is a high-resolution incremental rotary encoder from the renowned 785C Series, engineered for precision position and speed feedback in demanding industrial environments. With a resolution of 18,000 PPR (pulses per revolution), this encoder delivers the signal accuracy required by CNC machine tools, servo drive systems, grinding machines, and high-precision motion control platforms where positional integrity is non-negotiable.

In factory maintenance operations, the rotary encoder is one of the most failure-prone feedback components in a servo axis. Contamination, bearing wear, cable fatigue, and vibration-induced signal degradation are the primary causes of unplanned downtime on production lines. Keeping a verified original spare of the Heidenhain 785C.0003-18000 in your maintenance inventory is a proven strategy to reduce mean time to repair (MTTR) and protect production continuity.

This unit is sourced as a genuine original spare, pre-tested for signal integrity, and shipped with full documentation. It is directly compatible with Heidenhain-compatible servo drives and CNC controllers that accept TTL or HTL incremental encoder interfaces, making it a reliable drop-in replacement for aging or failed units in existing installations.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for encoder-equipped servo axes should extend well beyond the encoder itself. When scheduling a planned inspection or replacement of the Heidenhain 785C.0003-18000, experienced maintenance engineers routinely audit the entire feedback and drive chain to prevent secondary failures from masking the root cause.

Begin with the Heidenhain encoder cable (PUR-jacketed, shielded, 12-pin) — cable fatigue at the drag chain entry point is the leading cause of intermittent encoder faults that are often misdiagnosed as encoder failure. Inspect the cable for micro-fractures, connector pin corrosion, and shield continuity. A replacement cable should be stocked alongside the encoder unit.

Next, verify the condition of the servo drive’s encoder input card or feedback module. On platforms such as the Siemens SIMODRIVE 611 or SINAMICS S120, the encoder evaluation board (e.g., SMC20 or SME20 sensor module) processes the differential TTL signals from the 785C encoder. A degraded sensor module can corrupt position data even with a new encoder installed. Inspect for capacitor aging and connector oxidation.

The 5 V DC encoder power supply within the drive cabinet deserves equal attention. Voltage sag below 4.75 V will cause signal errors and false zero-pulse detection. Use a calibrated multimeter to verify supply voltage at the encoder connector under load. If the cabinet uses a dedicated 24 V to 5 V DC/DC converter module for encoder power, include it in your spare parts inventory.

For machines using Heidenhain TNC 426, TNC 430, or iTNC 530 CNC controllers, the controller’s encoder input interface card should be inspected for firmware currency and connector integrity. These controllers rely on the 785C’s Z-channel (reference pulse) for homing accuracy — any noise on this channel will cause repeatable positioning errors after power cycle.

In multi-axis machining centers, it is advisable to inspect the encoders on adjacent axes — particularly the Y-axis and Z-axis linear encoders (such as Heidenhain LC 183 or LB 382 linear scales) — during the same maintenance window. Thermal cycling and vibration affect all feedback devices equally, and replacing one encoder while leaving aged neighbors in service is a common cause of repeat breakdowns within 3–6 months.

Finally, check the stator coupling and mounting flange for mechanical play. A loose stator coupling introduces angular error that no signal processing can compensate. Replacement stator couplings for the 785C Series are available and should be treated as a consumable in high-cycle applications.

Strategic Replacement Solutions

The Heidenhain 785C.0003-18000 (311262-01) is a direct replacement for worn, damaged, or end-of-life units of the same part number. Its 18,000 PPR resolution and standard 785C mechanical interface mean no mechanical adaptation is required when replacing a like-for-like unit — the original cable, mounting flange, and drive parameterization remain valid.

For installations where the original 785C encoder is no longer available through OEM channels, the Heidenhain ERN 1387 or ERN 1381 series encoders offer compatible TTL output with equivalent PPR options and the same synchro flange mounting standard, subject to shaft diameter and cable connector verification. Drive re-parameterization is minimal and typically limited to encoder line count confirmation in the servo drive’s commissioning menu.

When replacing the encoder on a Siemens SINUMERIK 840D-controlled machine, the encoder data set (EDS) stored in the NCU (Numerical Control Unit) must be updated to reflect the new encoder’s line count and signal type. This is a standard commissioning step that takes under 15 minutes with SINUMERIK Operate access and does not require a full machine re-calibration.

Stocking the 785C.0003-18000 as a critical spare eliminates the 4–12 week OEM lead time that is typical for precision encoder procurement, directly translating to reduced unplanned downtime costs. For high-utilization production lines, a minimum stock of two units per machine type is the industry-standard recommendation.

Support FAQ

Q1: How do I verify compatibility before installation?
Confirm the existing encoder’s part number from the nameplate (785C.0003-18000 / 311262-01), check the shaft diameter (6 mm standard), connector type (12-pin Heidenhain circular), and supply voltage (5 V DC). Cross-reference with your servo drive’s encoder specification sheet to confirm TTL/RS-422 input compatibility. All units shipped from TOPNLMS are pre-tested for signal output prior to dispatch.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, signal output failure, and mechanical integrity of the encoder body and shaft. Each unit undergoes outgoing inspection including PPR verification and differential signal output testing. In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3 business days upon receipt of the defective unit and fault confirmation.

Q3: What is the recommended spare parts lifecycle strategy for this encoder?
For continuous-production environments, replace incremental encoders on a 3–5 year preventive cycle regardless of apparent condition, or immediately upon detection of intermittent signal faults, positioning drift, or homing errors. Maintain a minimum of one spare unit per machine type. For critical single-point-of-failure axes, maintain two units in bonded inventory.

Q4: How quickly can this unit be shipped?
In-stock units are dispatched within 1–2 business days from Xiamen, China. International shipping via DHL Express or FedEx International Priority typically delivers within 3–7 business days depending on destination. Expedited shipping options are available upon request. Contact TOPNLMS for lead time confirmation on your specific destination.
