HBM WGX002-PX01PN Original Industrial Spare WGX Compatible

Product Overview

HBM WGX002-PX01PN Original Industrial Spare – System Stability & Weighing Maintenance Value

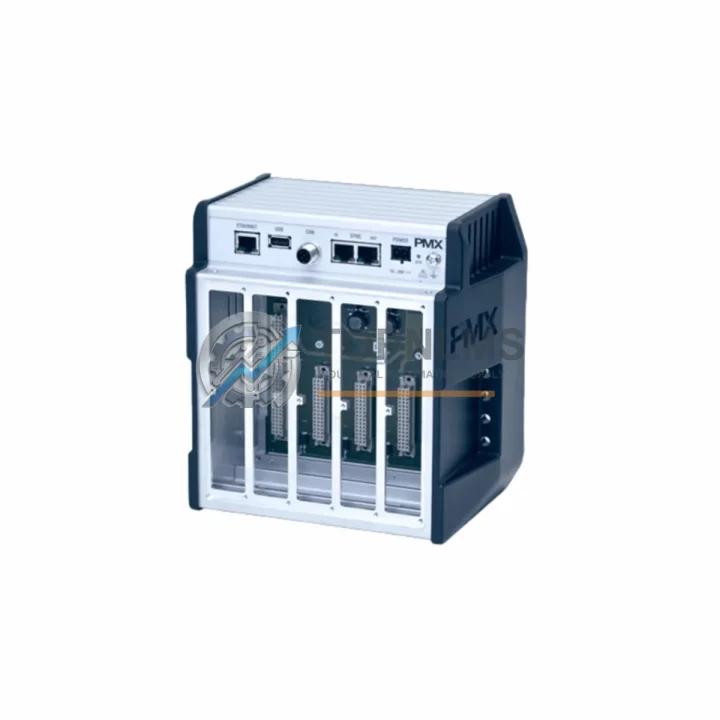

The HBM WGX002-PX01PN is an original spare PROFINET weighing module designed for industrial load cell measurement and process control applications. As a core component of the HBM WGX series, this module delivers high-precision weight acquisition over PROFINET IO networks, making it a critical asset in automated batching, filling, mixing, and checkweighing systems across food & beverage, chemical, pharmaceutical, and heavy manufacturing industries.

When a weighing module fails in a production line, the consequences extend far beyond a single sensor reading. Entire batching sequences halt, quality control loops break down, and downstream processes stall. Maintaining a verified original spare of the WGX002-PX01PN in your facility’s critical spare inventory is one of the most cost-effective decisions a maintenance engineer can make. With a direct plug-in replacement profile and full PROFINET IO compatibility, swap-out time is minimized and system re-commissioning is straightforward — reducing mean time to repair (MTTR) and protecting production throughput.

Critical Technical Specs

Preventive Maintenance Strategy

A weighing module like the WGX002-PX01PN does not operate in isolation. It sits at the intersection of your load cell wiring harness, your PROFINET network infrastructure, and your PLC control logic. A comprehensive preventive maintenance inspection of any weighing station should treat the WGX002-PX01PN as part of a broader system health check.

During scheduled downtime or annual cabinet inspections, maintenance teams should simultaneously verify the condition of the HBM load cell cables and shielded signal cables connecting the weighing platform to the module — cable insulation degradation and connector corrosion are leading causes of drift and measurement instability. The 24 V DC power supply module feeding the WGX002-PX01PN should be load-tested; an aging power supply with voltage ripple will introduce noise into the mV/V signal chain and produce erratic weight readings long before the power supply visibly fails.

On the PROFINET network side, inspect the PROFINET IO switch or managed Ethernet switch ports connected to the weighing module. Marginal network ports cause intermittent communication faults that are frequently misdiagnosed as module failures. If your system uses a Siemens S7-1500 or S7-300 CPU as the PROFINET controller, confirm that the GSD file version for the WGX002-PX01PN matches the firmware on the replacement module before installation.

The terminal blocks and DIN rail mounting hardware within the control cabinet should be inspected for loose connections and oxidation — particularly on the load cell excitation and signal lines, where even milliohm-level resistance changes affect calibration. If your facility uses signal isolators or analog signal conditioners between the weighing module and any legacy 4–20 mA process loops, verify isolator calibration as part of the same maintenance cycle.

For facilities running older HBM WGX-series installations alongside Siemens ET 200SP or ET 200M distributed I/O, it is advisable to maintain a parallel spare of the relevant I/O interface module that handles the digital status outputs from the weighing system. Similarly, HBM junction boxes or summing boxes used in multi-load-cell platform configurations should be inspected for moisture ingress and terminal integrity during the same service window as the WGX002-PX01PN replacement.

Facilities with HMI panels (such as Siemens TP700, TP900, or KTP series) displaying live weight data should confirm that the HMI tag mapping and scaling parameters are re-validated after any module swap, as parameter sets may differ between module firmware revisions. Keeping a documented backup of the PROFINET device configuration and PLC program block associated with the weighing station is a best practice that dramatically reduces re-commissioning time.

Strategic Replacement Solutions

The WGX002-PX01PN is a direct replacement for earlier WGX series weighing modules used in legacy HBM PROFINET weighing installations. Its backward-compatible PROFINET IO device profile means it can be substituted into existing network topologies without requiring PLC hardware changes, provided the GSD/GSDML device description file is updated in the engineering software (TIA Portal or STEP 7).

For plants operating aging HBM weighing systems originally commissioned 8–15 years ago, sourcing an original spare WGX002-PX01PN is significantly more cost-effective than a full weighing system retrofit. The module preserves the existing load cell infrastructure, calibration data structure, and PLC function block library — eliminating the engineering hours, validation cycles, and production downtime associated with a platform migration.

In multi-line facilities, a single WGX002-PX01PN spare can serve as a rotating emergency replacement across multiple weighing stations using the same module type, provided each station’s calibration parameters are documented and stored in the PLC or a calibration management system. This pooled-spare strategy reduces total inventory cost while maintaining rapid-response capability across the plant floor.

All units supplied by TOPNLMS are sourced as original HBM components, individually tested for communication integrity and signal accuracy prior to shipment, and covered by a 12-month warranty. Shipment is available worldwide with full export documentation.

Support FAQ

Q1: Is the WGX002-PX01PN a direct drop-in replacement for my existing WGX series module?
In most cases, yes. The WGX002-PX01PN uses the standard PROFINET IO device profile of the WGX series. You will need to update the GSDML file in TIA Portal or STEP 7 if the firmware version differs from your current installation. Load cell wiring and DIN rail mounting are compatible with standard WGX series installations.

Q2: How do you verify the module before shipment?
Each WGX002-PX01PN unit undergoes a pre-shipment functional test covering PROFINET communication initialization, load cell channel signal acquisition, and power supply integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: What is the recommended spare holding strategy for this module?
For facilities with 1–3 active WGX002-PX01PN installations, we recommend holding one unit as a cold spare. For plants with 4 or more units in service, a ratio of one spare per four installed units is a common industry practice. Given typical lead times for specialty weighing modules, maintaining an on-site spare eliminates the risk of extended unplanned downtime.

Q4: Can this module be used with non-Siemens PROFINET controllers?
Yes. The WGX002-PX01PN is a standard PROFINET IO device and is compatible with any PROFINET IO controller that supports the module’s GSDML device description, including controllers from Beckhoff, Phoenix Contact, B&R, and other PROFINET-compliant PLC platforms. Compatibility should be validated in the engineering environment before field deployment.
