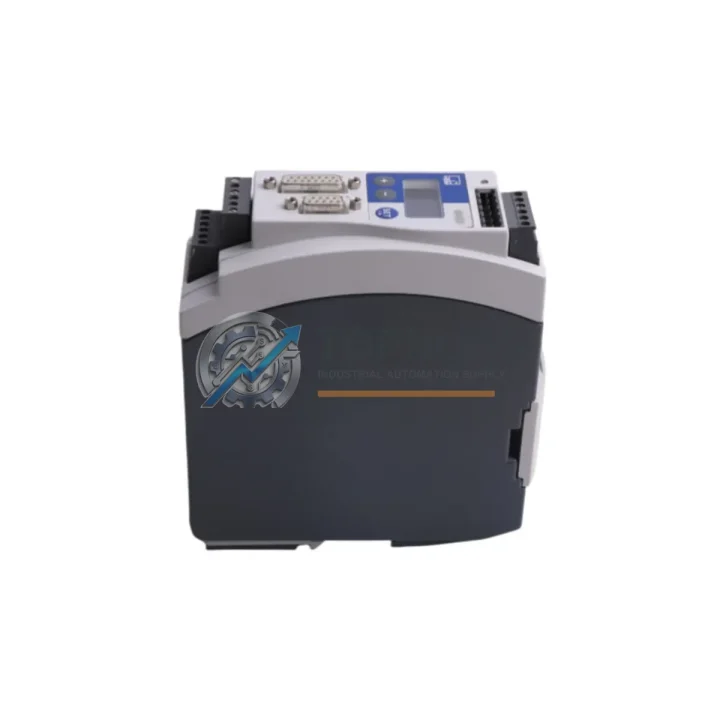

HBM MP60DP PME-MP60DP Original Industrial Spare PME Compatible

Product Overview

HBM MP60DP PME-MP60DP Original Industrial Spare PME Compatible: System Stability and Industrial Spare Maintenance Value

The HBM MP60DP (PME-MP60DP) is a genuine PROFIBUS DP interface module from HBM’s PME Series, engineered for high-precision measurement and control applications in demanding industrial environments. As a critical communication bridge between measurement electronics and PROFIBUS DP fieldbus networks, this module plays a pivotal role in maintaining system stability across process automation, machine monitoring, and quality control installations. When a PROFIBUS DP interface module fails or degrades, the consequences extend far beyond a single measurement point — entire control loops, data acquisition chains, and safety interlocks can be compromised. Sourcing an original HBM MP60DP PME-MP60DP spare ensures that your system returns to full specification without the risk of compatibility drift or signal integrity issues that can arise from non-original substitutes.

For maintenance engineers managing aging PME Series installations, the availability of a verified original spare is a decisive factor in minimizing mean time to repair (MTTR). The MP60DP integrates directly into existing PME amplifier racks and control cabinets without firmware reconfiguration, preserving the calibration and parameterization of the host system. This plug-and-replace capability is especially valuable during unplanned shutdowns, where every hour of downtime carries measurable production cost.

Critical Technical Specs

Preventive Maintenance Strategy

A PROFIBUS DP interface module does not operate in isolation. Its reliability is directly tied to the health of the surrounding PME rack infrastructure and the broader fieldbus network. During scheduled maintenance windows or corrective shutdowns, experienced maintenance teams treat the MP60DP replacement as an opportunity to audit the entire measurement and communication chain.

Begin with the PME power supply module — an aging or under-spec power rail is one of the most common root causes of intermittent PROFIBUS communication faults that are incorrectly attributed to the interface module itself. Verify output voltage stability under load before condemning the MP60DP. Next, inspect the PME analog input modules (such as the PME-MP55 or PME-MP60 amplifier cards) seated in adjacent rack slots; a failing amplifier card can generate bus noise that degrades PROFIBUS DP signal integrity across the entire rack.

The PROFIBUS DP cable and termination resistors deserve equal attention. Damaged shielding, improper termination at segment ends, or corroded DB9 connectors on the bus cable are frequent contributors to CRC errors and station dropouts. If the installation uses PROFIBUS repeaters or optical link modules to extend segment length, these should be tested for signal attenuation and replaced on a defined lifecycle schedule.

Within the control cabinet, examine the terminal blocks and signal wiring connected to the PME rack. Loose ferrules, oxidized terminals, and undersized cable cross-sections can introduce ground loops that corrupt measurement data upstream of the PROFIBUS interface. Surge protection modules on the fieldbus cable entry points should also be checked — particularly in environments with frequent lightning events or heavy motor switching loads.

On the PLC or DCS side, verify that the PROFIBUS DP master module (such as a Siemens CP 342-5 or equivalent) has current firmware and that the GSD file for the PME-MP60DP is correctly loaded in the hardware configuration. A mismatch between the GSD parameterization and the physical module can cause the master to report the slave as unavailable even when the hardware is fully functional. Keeping a spare PROFIBUS DP master communication processor in your critical spares inventory is a prudent measure for high-availability lines.

Finally, document the replacement in your CMMS with the module’s serial number, installation date, and pre/post-replacement bus diagnostics. This record supports warranty claims, audit compliance, and future predictive maintenance scheduling.

Strategic Replacement Solutions

The HBM MP60DP PME-MP60DP is a direct original replacement for aging or failed PROFIBUS DP interface modules within the PME Series ecosystem. Unlike third-party alternatives, the original module retains full compatibility with HBM’s proprietary rack communication protocol, ensuring that all PME amplifier channels continue to report correctly to the PROFIBUS DP master without requiring re-parameterization or GSD file updates.

For facilities operating legacy PME installations that are no longer covered by OEM service contracts, maintaining a stock of original spare modules is the most cost-effective strategy for extending system life. A single unplanned shutdown on a high-throughput production line can cost multiples of the spare module’s procurement price in lost output alone. Proactive spare procurement — ideally holding one MP60DP PME-MP60DP per two to three installed racks — provides a buffer against lead time uncertainty and ensures that maintenance teams can execute same-shift replacements without waiting for emergency freight.

The MP60DP’s plug-and-replace design means that a trained technician can complete a module swap in under 30 minutes, including bus diagnostics verification. This compares favorably to the hours or days required to retrofit a non-compatible alternative, which may require custom GSD files, firmware updates, or PLC hardware configuration changes. For facilities committed to minimizing engineering change risk, the original HBM spare is the only defensible choice.

Support FAQ

Q1: What is the expected service life of the HBM MP60DP PME-MP60DP, and when should I plan for replacement?
Under normal operating conditions (continuous duty, 0–50 °C, clean industrial environment), the MP60DP is designed for multi-year service. HBM recommends proactive replacement at the first sign of recurring PROFIBUS communication faults, CRC error escalation, or after 8–10 years of continuous operation. Maintaining one spare per installation cluster eliminates unplanned downtime risk.

Q2: How do I verify compatibility with my existing PME rack before installation?
The PME-MP60DP is compatible with all standard PME Series amplifier racks that support plug-in interface modules. Confirm your rack’s slot designation and firmware version against the HBM PME system documentation. If your PROFIBUS DP master uses a GSD file, ensure it matches the MP60DP’s device identity. Our technical team can assist with compatibility verification prior to shipment.

Q3: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every HBM MP60DP PME-MP60DP unit is functionally tested for PROFIBUS DP communication, power integrity, and slot interface continuity before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage from incorrect installation, overvoltage, or environmental exposure beyond rated limits. Warranty claims are processed with proof of purchase and a fault description.

Q4: Can I use this module to replace a failed unit in a system that is still running other PME channels?
Yes. The MP60DP is a hot-swap-capable module in racks that support live insertion (refer to your PME rack documentation for confirmation). In racks that require power-down for slot changes, the replacement procedure is straightforward: power down the rack, remove the failed module, insert the replacement, restore power, and verify PROFIBUS DP slave status on the master. Total downtime for a prepared maintenance team is typically under 30 minutes.
