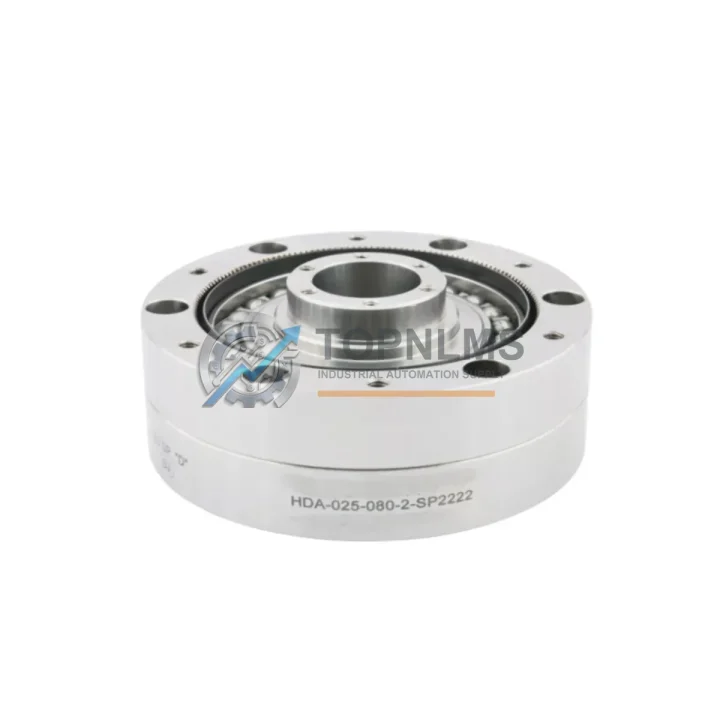

Harmonic Drive HDA-025-080-2-SP2222 Ruggedized Gear Module

Product Overview

Harmonic Drive HDA-025-080-2-SP2222 Ruggedized Gear Module: Industrial Resilience for Harsh Environments

The Harmonic Drive HDA-025-080-2-SP2222 is a precision strain-wave gear unit engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of Harmonic Drive’s proven HDA Series, this bearing assembly delivers an 80:1 reduction ratio with exceptional torsional rigidity, zero-backlash performance, and a compact, sealed form factor that resists contamination from dust, moisture, and mechanical vibration. Whether deployed in robotic joint actuators, precision servo axes, or heavy-duty automation machinery, the HDA-025-080-2-SP2222 maintains positional accuracy and torque transmission integrity under conditions that would compromise conventional gear systems.

In high-temperature foundry environments, chemical processing plants, and offshore oil and gas platforms, gear units face relentless thermal cycling, corrosive atmospheres, and continuous mechanical stress. The HDA-025-080-2-SP2222 addresses these challenges through its integrated cross-roller bearing structure, which provides simultaneous radial, axial, and moment load capacity within a single, rigid housing. The SP2222 bearing specification ensures long-term fatigue resistance, making this unit a dependable choice for applications where unplanned downtime carries significant operational and safety consequences.

This unit is fully compatible with standard servo motor flanges and is routinely paired with Harmonic Drive FHA-C Mini actuators, SHA-CG series hollow-shaft actuators, and CSF-mini series component sets in multi-axis robotic systems. In PLC-controlled automation lines, the HDA-025-080-2-SP2222 interfaces seamlessly with servo drives from leading manufacturers, supporting high-cycle indexing, precision positioning, and torque-limited safety functions. When integrated into a control cabinet alongside Siemens SINAMICS S120 servo drive modules or Mitsubishi MR-J4 servo amplifiers, the gear unit’s low-backlash characteristic ensures that encoder feedback loops remain stable even under rapid acceleration and deceleration profiles.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable motion control in critical infrastructure depends on more than a single component — it requires a coordinated system of precision mechanics, intelligent drives, and robust safety architecture. The HDA-025-080-2-SP2222 is most effective when deployed as part of a validated system stack. In servo-driven robotic arms and gantry systems, it is commonly paired with Harmonic Drive CSG-25 component sets for the wrist and elbow joints, while the shoulder axis may use a Harmonic Drive SHG-45 series unit for higher torque capacity. These combinations ensure consistent zero-backlash performance across all axes, which is essential for path accuracy in welding, dispensing, and assembly applications.

On the electrical side, the gear unit’s servo interface is compatible with Yaskawa SGDV series servo packs and Panasonic MINAS A6 servo drivers, both of which provide the high-resolution encoder feedback and dynamic braking functions needed to protect the gear unit during emergency stops. In safety-critical zones classified under IEC 62061 or ISO 13849, the HDA-025-080-2-SP2222 is often integrated with Pilz PNOZ safety relay modules or Sick i10 safety interlock switches to ensure that the drive train is de-energized before any maintenance access. Power conditioning for the servo system is typically handled by Phoenix Contact QUINT-PS industrial power supplies, which provide stable 24 VDC bus voltage with active buffering to prevent nuisance trips during voltage sags common in heavy industrial facilities.

For communication and diagnostics, the HDA-025-080-2-SP2222 system integrates with EtherCAT or PROFINET fieldbus architectures, allowing real-time torque, position, and temperature monitoring from the PLC or SCADA layer. This telemetry capability supports predictive maintenance strategies, reducing unplanned downtime in continuous production environments such as automotive body shops, pharmaceutical filling lines, and food and beverage packaging plants.

Application in Critical Infrastructure

The HDA-025-080-2-SP2222 has established a strong track record across multiple critical infrastructure sectors where mechanical reliability is non-negotiable.

Oil & Gas: In subsea valve actuators and topside pipeline control systems, the zero-backlash characteristic of the HDA series ensures precise valve positioning even after extended periods of inactivity. The sealed bearing assembly resists ingress of hydrocarbon vapors and saline moisture, maintaining torque transmission accuracy in Zone 1 and Zone 2 classified areas when housed in appropriate explosion-proof enclosures.

Mining & Mineral Processing: Continuous dust exposure and high-vibration environments in underground mining operations demand gear units with robust sealing and fatigue-resistant bearing races. The HDA-025-080-2-SP2222’s cross-roller bearing design distributes shock loads evenly, preventing premature spalling that commonly affects conventional planetary gearboxes in these conditions.

Power Generation: In turbine blade inspection robots and generator maintenance manipulators, the HDA series provides the combination of high torque density and compact envelope required to access confined spaces within generating equipment. The 80:1 ratio delivers sufficient mechanical advantage for heavy-duty positioning without requiring oversized servo motors, reducing the overall system weight and inertia.

Water Treatment & Utilities: Automated valve actuation in water treatment plants requires gear units that can operate reliably in high-humidity environments with minimal maintenance intervals. The HDA-025-080-2-SP2222’s sealed construction and corrosion-resistant materials make it suitable for outdoor and semi-outdoor installations where condensation and chemical cleaning agents are present.

Metallurgy & Steel: In continuous casting and rolling mill automation, the gear unit withstands radiant heat and scale contamination. Its rigid output flange maintains alignment under the high axial loads generated by rolling force feedback, protecting the servo motor from overload conditions that could cause winding damage or encoder failure.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All HDA-025-080-2-SP2222 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, bearing failure under normal operating conditions, and dimensional non-conformance. In the event of a warranty claim, TOPNLMS will arrange return logistics and provide a replacement unit or full refund upon verification. Warranty claims are processed within 5 business days of receiving the returned item.

Q2: How is each unit tested before dispatch?
Every HDA-025-080-2-SP2222 unit undergoes a pre-shipment functional inspection that includes rotational smoothness verification, backlash measurement, and visual inspection of the bearing race and flexspline interface. Units sourced as surplus new are additionally checked for storage condition compliance and packaging integrity. A test report is available upon request for OEM and system integrator customers.

Q3: Is the HDA-025-080-2-SP2222 a direct drop-in replacement for existing HDA series installations?
Yes. The HDA-025-080-2-SP2222 is dimensionally and functionally interchangeable with other HDA-025-080 variants sharing the SP2222 bearing specification. It is also cross-referenced to part numbers PGM-320REC, BM23951L29, BM17180L14/N, and EPS31196, which may appear in legacy BOM documentation. Customers are advised to verify the output flange bolt pattern and shaft bore dimensions against their existing installation drawings before ordering.

Q4: Can TOPNLMS support long-term or repeat supply requirements?
Yes. TOPNLMS maintains a managed inventory program for critical Harmonic Drive components, including the HDA series. For OEM customers and system integrators with recurring demand, we offer blanket order arrangements with reserved stock allocation, priority dispatch, and dedicated technical account support. Contact our team to discuss volume pricing and supply continuity agreements.
