Harmonic Drive CSF-25-160 Original Industrial Spare CSF Compatible: Ensuring System Stability in Precision Motion Control

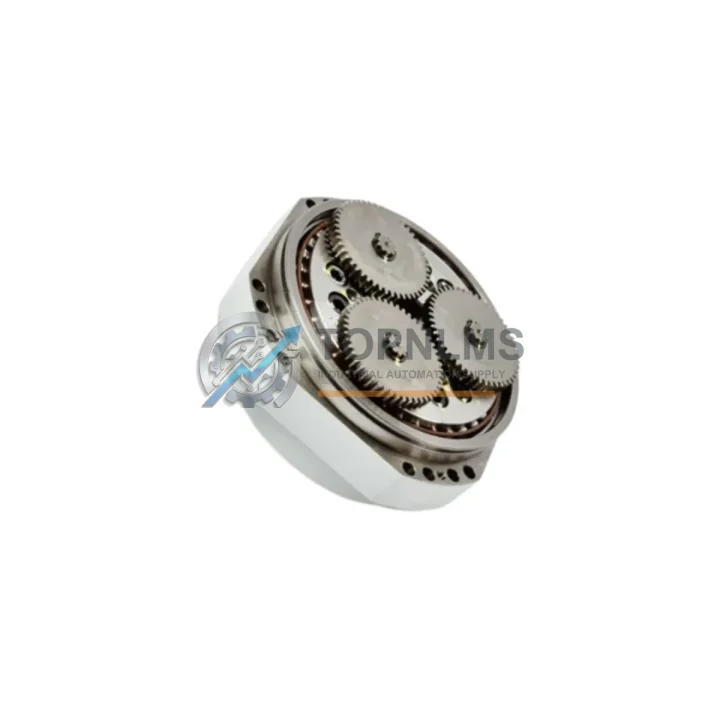

The Harmonic Drive CSF-25-160 is a factory-original strain wave gear (harmonic reducer) from Harmonic Drive Systems, engineered for high-precision, zero-backlash torque transmission in demanding industrial automation environments. As a core component of the CSF Series, the CSF-25-160 delivers a gear ratio of 160:1 within a compact, lightweight housing — making it the preferred choice for robotic joints, CNC rotary axes, semiconductor handling equipment, and precision servo-driven systems where positional accuracy and long service life are non-negotiable.

In factory maintenance operations, the CSF-25-160 is frequently the first component to be inspected when a servo axis exhibits positioning drift, abnormal vibration, or torque irregularity. Replacing a worn or failed harmonic reducer with a genuine original part — rather than an aftermarket substitute — is the single most effective way to restore axis accuracy, protect the servo motor, and avoid cascading failures in the broader motion control system. Stocking an original CSF-25-160 as a critical spare eliminates the risk of extended downtime caused by lead-time delays on precision mechanical components.

Critical Technical Specs

Preventive Maintenance Strategy

A harmonic reducer failure rarely occurs in isolation. When a CSF-25-160 shows signs of wear — such as increased backlash, oil seepage from the flex spline, or audible noise during low-speed rotation — experienced maintenance engineers treat it as a signal to audit the entire servo axis assembly. A comprehensive inspection should include the servo motor encoder cable and connector (signal degradation is a common hidden cause of positioning error), the servo drive unit (check for fault codes related to overload or position deviation), and the motor coupling or bellows coupling connecting the motor shaft to the wave generator input.

For systems using Harmonic Drive CSF-25 series reducers in multi-axis configurations — such as a 6-axis articulated robot or a 3-axis gantry — it is strongly recommended to inspect the CSF-32 or CSF-20 reducers on adjacent axes simultaneously, as they share the same lubrication schedule and thermal cycling profile. The circular spline housing (sold separately as a CSF-25 unit type) should be checked for fretting wear on the spline teeth and housing bore concentricity.

Beyond the reducer itself, a complete preventive maintenance cycle for a precision servo axis should also address the servo amplifier’s regenerative resistor module, the 24VDC control power supply module feeding the drive rack, and the I/O interface module handling position feedback signals. In robotic welding or assembly cells, the teach pendant cable assembly and emergency stop relay module in the control cabinet should be inspected on the same maintenance window. For systems with integrated vision or force sensing, the signal isolation module between the sensor and the controller I/O card is a frequently overlooked wear item that can cause intermittent faults mimicking reducer problems.

Stocking the CSF-25-160 alongside a compatible grease cartridge (Harmonic Drive SK-1A or equivalent specified grease) ensures that any replacement can be completed correctly in a single maintenance window, avoiding a second shutdown for re-lubrication.

Strategic Replacement Solutions

The CSF-25-160 is a direct component-type replacement for legacy Harmonic Drive units including the CSF-25-160-2A-GR (with integrated output flange) and the CSF-25-160-2UH (ultra-flat variant). When the original unit type is no longer available or has extended lead times, the CSF-25-160 component set allows maintenance teams to rebuild the existing circular spline housing rather than replacing the entire gearhead assembly — significantly reducing both cost and downtime.

For older robotic systems originally designed around the Harmonic Drive HFUC-25 or SHF-25 series, the CSF-25-160 can serve as a functional equivalent in many configurations, provided the circular spline housing bore and output flange interface are verified against the installation drawing. This cross-compatibility makes the CSF-25-160 a strategically valuable spare for facilities managing mixed-generation robot fleets or legacy CNC equipment where original unit-type reducers are discontinued.

Maintaining one or two CSF-25-160 units in the plant spare parts store eliminates the typical 8–16 week procurement lead time for precision harmonic reducers, converting a potential multi-week production stoppage into a same-shift repair. For high-utilization equipment running two or three shifts, the inventory carrying cost of a spare reducer is recovered within a single avoided downtime event.

Support FAQ

Q1: Is the CSF-25-160 a complete gearhead or a component set?
The CSF-25-160 is a 2-piece component set consisting of the flex spline and wave generator. It requires a separately sourced CSF-25 circular spline housing to form a complete reducer assembly. If you require a complete unit-type gearhead, please contact us to confirm the appropriate CSF-25 unit-type model for your application.

Q2: How is the CSF-25-160 tested before shipment?
Each unit undergoes dimensional inspection and functional verification prior to dispatch. All CSF-25-160 units supplied by TOPNLMS are original Harmonic Drive products sourced through authorized industrial supply channels. A 12-month warranty is provided from the date of shipment, covering manufacturing defects under normal operating conditions.

Q3: Can the CSF-25-160 replace my existing CSF-25-160-2A-GR unit?
In most cases, yes — the CSF-25-160 component set is the internal assembly of the CSF-25-160-2A-GR unit type. If your circular spline housing is undamaged, replacing only the flex spline and wave generator with the CSF-25-160 component set is the standard field repair procedure. We recommend verifying housing condition and concentricity before installation.

Q4: What is the recommended spare parts strategy for facilities with multiple CSF-25 axes?
For facilities operating 3 or more axes using CSF-25 series reducers, we recommend maintaining a minimum of 1–2 CSF-25-160 component sets as critical spares, alongside the appropriate grease and any axis-specific coupling components. For mixed-ratio systems, stocking the most common ratios (typically 100:1 and 160:1) provides coverage for the majority of failure scenarios without excessive inventory investment.
