GE UR9DH Original Industrial Spare Universal Relay Compatible

Product Overview

GE UR9DH Original Industrial Spare Universal Relay Compatible: Ensuring System Stability in Critical Protection Circuits

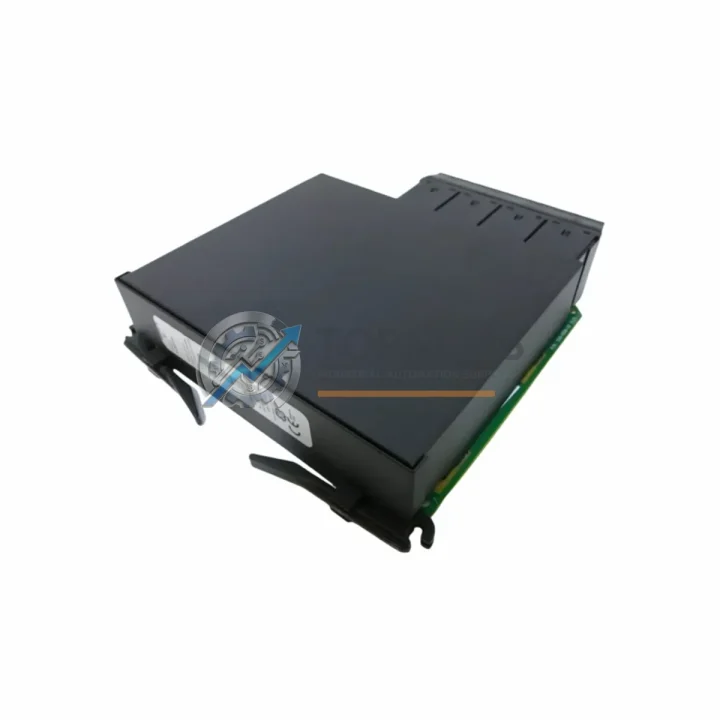

The GE UR9DH is a Central Processing Unit module designed for GE’s Universal Relay (UR) Series platform — one of the most widely deployed digital protection relay architectures in industrial power systems, substations, and utility-grade electrical infrastructure. As a direct original spare part, the UR9DH CPU module serves as the computational core of the UR relay chassis, executing protection algorithms, managing I/O communication, and maintaining real-time system diagnostics. When this module fails or degrades, the entire relay protection function is compromised, exposing connected equipment — motors, transformers, feeders, and bus sections — to unprotected fault conditions.

For maintenance engineers and reliability teams managing aging UR Series installations, sourcing a verified original UR9DH replacement is the fastest path to restoring full protection functionality without redesigning the control cabinet or replacing the entire relay panel. The UR9DH is backward-compatible with the UR chassis platform, allowing direct slot-for-slot replacement with minimal reconfiguration.

Critical Technical Specs

Preventive Maintenance Strategy for UR Series Protection Systems

A UR relay panel is not a standalone device — it is an integrated protection system where the CPU module, power supply, I/O modules, and communication interfaces must all function reliably in concert. When scheduling a planned outage or responding to an unplanned trip, experienced maintenance teams treat the UR9DH CPU replacement as the starting point of a broader inspection, not the end of it.

During a CPU module swap, the control cabinet should be inspected systematically. The UR 9PA power supply module is the first component to verify: a degraded power supply can cause intermittent CPU resets and false protection trips that are often misdiagnosed as CPU failures. If the UR9DH is being replaced due to communication faults, the UR 9E1 Ethernet communication module and associated fiber or copper patch cables should be tested for signal integrity before the new CPU is commissioned.

I/O integrity is equally critical. The UR 9G analog input module and UR 9H digital input/output module interface directly with current transformers (CTs), voltage transformers (VTs), and trip coil circuits. Loose terminal connections or aged I/O modules can introduce measurement errors that compromise protection accuracy even after a CPU replacement. Inspect terminal blocks and wiring harnesses in the same maintenance window.

For substations running IEC 61850 GOOSE messaging, the UR 9E2 dual-port Ethernet module should be checked for firmware compatibility with the replacement UR9DH CPU. Mismatched firmware versions between the CPU and communication modules are a common source of post-replacement communication failures. Always verify firmware revision alignment before closing the cabinet.

Time synchronization is another area that deserves attention during CPU replacement. The IRIG-B signal distribution module or GPS clock receiver feeding the UR relay should be tested to confirm the new CPU acquires time lock within specification. Accurate time-stamping is essential for post-fault event analysis and sequence-of-events (SOE) reporting.

Maintenance teams managing multi-relay panels should also inspect adjacent relay modules — particularly GE UR 9DS and UR 9DC CPU variants — for signs of aging: elevated operating temperature, capacitor bulge on the PCB, or degraded response times during self-test routines. Proactive replacement of aging CPU modules before failure eliminates the risk of simultaneous protection gaps across multiple feeders.

Finally, spare parts inventory planning for UR Series installations should include at minimum: one UR9DH CPU module, one compatible power supply module, and one I/O module matched to the site’s protection scheme. Facilities with multiple UR relay panels benefit from maintaining a small buffer stock of these modules to support rapid same-day replacement during unplanned outages — dramatically reducing mean time to repair (MTTR) and avoiding costly emergency procurement delays.

Strategic Replacement Solutions

The GE UR9DH is a direct replacement for earlier UR Series CPU modules including the UR 9DC and UR 9DS variants, offering enhanced processing speed, expanded memory for event recording, and improved IEC 61850 protocol support. For facilities still operating legacy UR relay firmware (v5.x or v6.x), the UR9DH supports field firmware upgrades, allowing the existing relay configuration and settings files to be migrated without re-engineering the protection scheme.

This compatibility-first design philosophy means that maintenance teams can extend the operational life of existing UR relay panels by 5–10 years through targeted CPU module replacement, deferring the capital expenditure of a full relay panel replacement. The UR9DH retains the same physical form factor, connector pinout, and chassis slot assignment as its predecessors, ensuring zero-modification installation in existing cabinets.

For facilities transitioning from older electromechanical or first-generation digital relays to the UR platform, the UR9DH CPU module provides a modern IEC 61850-compliant protection core that integrates with SCADA systems, substation automation networks, and digital fault recorders — without requiring changes to the existing CT/VT wiring infrastructure.

Support FAQ

Q1: Is the UR9DH compatible with all UR Series relay chassis models?
The UR9DH CPU module is designed for the GE Universal Relay (UR) modular chassis platform and is compatible with the majority of UR Series relay families including C60, D60, F60, G60, L60, M60, N60, and T60 variants. Compatibility depends on chassis generation and firmware version. We recommend confirming your chassis model and current firmware revision before ordering. Our technical team can assist with compatibility verification.

Q2: What pre-shipment testing is performed on the UR9DH?
Every UR9DH unit undergoes full functional testing prior to dispatch, including power-on self-test (POST) verification, communication interface checks, and firmware boot confirmation. Units are inspected for physical integrity and packed in anti-static ESD-safe packaging. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround — replacement units are dispatched within 5 business days of confirmed fault diagnosis.

Q4: Can I use the UR9DH to replace a failed CPU without losing my existing relay settings?
Yes. GE UR Series relay settings are stored in non-volatile memory and can be backed up using GE’s EnerVista UR Setup software prior to CPU replacement. After installing the UR9DH, the saved settings file can be restored directly via the software interface. This process preserves all protection element settings, communication parameters, and event log configurations, minimizing commissioning time after replacement.
