GE 745-W3-P511-G51-HI-R-E-H Original Industrial Spare 745 Compatible

Product Overview

GE 745-W3-P511-G51-HI-R-E-H Original Industrial Spare 745 Compatible: System Stability & Transformer Protection Maintenance

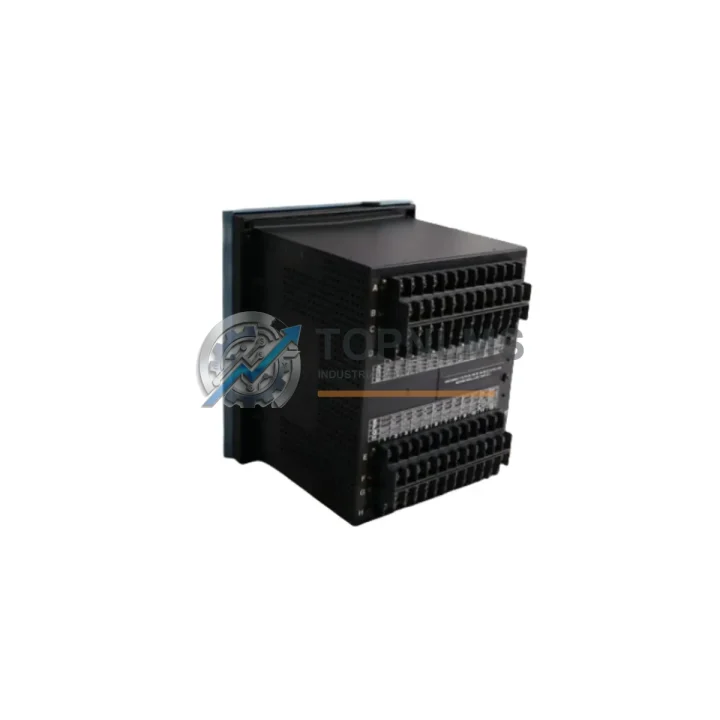

The GE 745-W3-P511-G51-HI-R-E-H is a fully original, factory-configured Transformer Management Relay (TMR) from GE Grid Solutions, belonging to the proven 745 series. Designed for critical transformer protection in industrial power distribution systems, this relay delivers comprehensive differential, overcurrent, thermal, and restricted earth fault protection in a single integrated unit. For maintenance engineers managing aging substation infrastructure or planning preventive overhaul cycles, sourcing a verified original 745-W3-P511-G51-HI-R-E-H spare is a foundational step in ensuring uninterrupted transformer operation and grid stability.

This specific configuration includes thermocouple input capability for direct winding temperature monitoring, an Ethernet communications port for SCADA and DCS integration, and the high-interrupting (HI) contact output option — making it suitable for demanding industrial environments where both protection accuracy and remote supervisory control are essential. Whether you are replacing a failed relay in an emergency shutdown scenario or building a strategic spare inventory ahead of a planned outage, the 745-W3-P511-G51-HI-R-E-H offers a direct, configuration-matched replacement that eliminates re-engineering risk.

Critical Technical Specs

Preventive Maintenance Strategy

A transformer protection relay like the 745-W3-P511-G51-HI-R-E-H sits at the center of a broader protection and control ecosystem. When scheduling a relay replacement or conducting a substation inspection, experienced maintenance teams know that the relay itself is rarely the only component requiring attention. A thorough inspection of the protection panel should include verification of the GE 745 CT input wiring harness and terminal blocks — loose or corroded connections at the current transformer secondary circuits are a leading cause of spurious trips and relay misoperation.

The auxiliary power supply module feeding the relay should be load-tested during the same maintenance window. An unstable DC bus voltage can cause relay resets and loss of protection during fault conditions. If the substation uses a GE D60 or D30 line protection relay in the same protection zone, its firmware version and settings coordination with the 745 should be reviewed simultaneously to ensure selectivity is maintained after the relay swap.

For substations with Ethernet-based SCADA integration, the Ethernet switch or managed hub connecting the 745’s E port to the control network should be inspected for port errors and firmware currency. A degraded network link can silently disable remote monitoring while the relay continues to operate locally — a risk that is only discovered during an actual fault event.

Thermal monitoring is a key feature of the 745-W3-P511-G51-HI-R-E-H. During replacement, technicians should also inspect the thermocouple extension cables running from the transformer winding temperature sensors to the relay panel. Damaged insulation or incorrect thermocouple type mismatches (Type K vs. Type J) will produce erroneous temperature readings and may trigger nuisance thermal alarms. Replacement thermocouples and extension cables should be stocked alongside the relay spare.

In facilities running aging transformer protection schemes, it is also advisable to review the condition of interposing relay modules (such as GE or Omron plug-in relay bases) used in the trip output circuits. High-interrupting contacts on the 745 are rated for direct breaker trip coil duty, but the interposing relays in the circuit may have accumulated contact wear over years of operation. Similarly, fuse modules and miniature circuit breakers protecting the relay’s auxiliary supply and CT circuits should be tested for correct operation and replaced if they show signs of aging.

For facilities planning a broader control system refresh, the 745-W3-P511-G51-HI-R-E-H is compatible with GE’s EnerVista 745 PC software for settings upload and event record retrieval — ensuring that existing protection settings files can be transferred directly to the replacement unit without re-engineering. Stocking a USB-to-RS485 or Ethernet settings cable specific to the 745 series is recommended to avoid commissioning delays.

Strategic Replacement Solutions

The 745-W3-P511-G51-HI-R-E-H is a configuration-specific model. Its option string (W3-P511-G51-HI-R-E-H) encodes the exact hardware fitted at the factory — including the power supply range, I/O configuration, high-interrupting contacts, Ethernet port, and thermocouple input. This means it is a direct, plug-compatible replacement for any existing 745 unit with the same option string, with no hardware modification required.

For facilities where the original relay has reached end-of-life or where GE has discontinued a specific sub-variant, the 745-W3-P511-G51-HI-R-E-H can serve as a functional replacement for adjacent 745 configurations, provided the protection settings are reviewed and adjusted for any minor I/O differences. This approach is significantly faster and lower-risk than migrating to a next-generation relay platform, which would require new wiring, settings re-engineering, and protection coordination studies.

Sourcing an original spare in advance — rather than waiting for a relay failure — eliminates the most costly element of unplanned downtime: the procurement lead time. With a tested, warranted 745-W3-P511-G51-HI-R-E-H unit on the shelf, a transformer protection relay failure can be resolved within hours rather than weeks, keeping critical power infrastructure online and avoiding the cascading production losses associated with transformer outages in industrial facilities.

Support FAQ

Q1: Is the 745-W3-P511-G51-HI-R-E-H a new original unit or a refurbished spare?
All units supplied by TOPNLMS are original GE Grid Solutions manufacture. Each unit undergoes a full functional test prior to shipment. Refurbished or repaired units are clearly identified separately and are never substituted without explicit customer agreement.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating and installation conditions. It does not cover damage resulting from incorrect wiring, overvoltage events beyond the relay’s rated input range, or physical damage during installation. Warranty claims are processed with return shipping support and priority replacement dispatch.

Q3: Can I transfer my existing 745 settings file directly to this replacement unit?
Yes. The 745-W3-P511-G51-HI-R-E-H uses the same GE EnerVista 745 PC software platform as all 745 series relays. Settings files (.745 format) created on the original unit can be uploaded directly to the replacement, provided the hardware option strings match. TOPNLMS recommends verifying the firmware version of the replacement unit before upload and updating if necessary.

Q4: How quickly can the unit be shipped, and what pre-shipment checks are performed?
In-stock units are dispatched within 1–3 business days. Pre-shipment checks include power-on functional verification, communications port test (Ethernet), output contact continuity, and thermocouple input channel verification. A test report is available upon request. International shipping with tracking and insurance is standard for all orders.
