GE UR8RH Original Industrial Spare UR Series Compatible

Product Overview

GE UR8RH Original Industrial Spare UR Series Compatible: Ensuring System Stability in Critical Protection Circuits

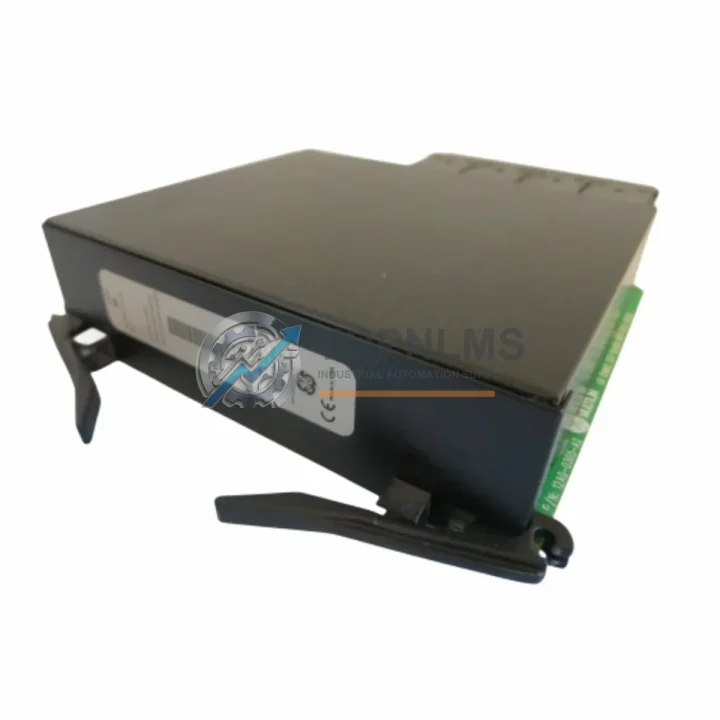

The GE UR8RH is an original CT/VT (Current Transformer / Voltage Transformer) input module designed for GE’s Universal Relay (UR) Series platform — one of the most widely deployed protection relay architectures in power generation, transmission, and industrial automation environments worldwide. As a direct-fit spare part, the UR8RH restores full metering and protection functionality to UR-frame relay chassis without requiring firmware reconfiguration or system re-commissioning, making it an indispensable component in any maintenance engineer’s spare parts inventory.

In high-availability industrial facilities — including petrochemical plants, steel mills, water treatment stations, and power substations — unplanned relay failures can cascade into costly production shutdowns. Stocking a verified original UR8RH module eliminates the critical gap between fault detection and system restoration, reducing mean time to repair (MTTR) from days to minutes. Every UR8RH shipped from TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month quality warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A UR8RH replacement is rarely an isolated event. In practice, when a CT/VT input module shows signs of degradation — such as erratic metering values, relay misoperation, or communication alarms — the root cause often involves adjacent components within the same protection panel or electrical circuit. A disciplined preventive maintenance approach requires inspecting and, where appropriate, proactively replacing the surrounding system elements at the same service interval.

Begin with the UR Series power supply module (e.g., UR-series PSU cards such as the UR8AC or UR8DC variants). An aging or under-spec power supply is a leading cause of intermittent module faults and should be verified for output voltage stability before the new UR8RH is commissioned. Simultaneously, inspect the UR Series CPU/DSP module — the central processing card that interprets the analog signals delivered by the UR8RH. Firmware version compatibility between the CPU module and the replacement input module must be confirmed prior to installation.

Within the same control cabinet, the UR Series digital output (DO) module and digital input (DI) module should be checked for contact wear and signal integrity. These modules interact directly with the protection logic driven by CT/VT measurements, and a degraded DO module can prevent trip commands from reaching circuit breakers even when the relay correctly detects a fault. If the installation includes a UR Series communications module (supporting IEC 61850 GOOSE, DNP3, or Modbus protocols), verify that its fiber or copper interface remains clean and properly seated — communication module failures are frequently misdiagnosed as input module faults.

At the panel level, inspect CT shorting terminal blocks and VT fuse modules. Open-circuited CT secondaries present a serious safety hazard and will immediately corrupt the metering data processed by the UR8RH. Replacing aged DIN-rail terminal strips and verifying torque on all secondary wiring connections is a low-cost step that significantly extends the service life of the new input module. For facilities running multiple UR-frame relays in a bus protection or line differential scheme, also verify the condition of inter-relay communication cables (typically multimode fiber or shielded twisted pair) and the associated signal isolators or optical converters used in the differential protection loop.

Finally, if the UR relay is integrated into a SCADA or DCS environment, confirm that the HMI or engineering workstation running GE’s EnerVista UR Setup software can communicate with the relay post-replacement. A spare USB-to-RS232 or Ethernet patch cable for relay configuration access is a practical addition to any UR Series maintenance kit.

Strategic Replacement Solutions

The GE UR Series platform was introduced in the late 1990s and has been continuously deployed across global power infrastructure for over two decades. Many installations now operate relay chassis that are 10–20 years old, with original modules approaching or exceeding their recommended service life. The UR8RH provides a direct, drop-in replacement path that preserves the existing relay chassis, wiring, and protection settings — eliminating the need for costly panel redesign or full relay replacement projects.

For facilities managing legacy UR-frame relays where GE factory support has been reduced or lead times from OEM channels have extended to 12–26 weeks, sourcing a verified original UR8RH through TOPNLMS provides an immediate alternative. Our inventory is sourced from authenticated supply chains, and each module is individually tested for CT/VT input accuracy, channel isolation, and communication handshake with UR chassis firmware prior to dispatch.

Replacing only the failed UR8RH — rather than the entire relay — reduces capital expenditure by 60–80% compared to a full relay replacement, while maintaining 100% compatibility with existing protection settings, IEC 61850 configurations, and SCADA integration. This approach is particularly valuable in aging substation environments where panel space, wiring infrastructure, and protection coordination studies represent significant sunk costs that a module-level replacement fully preserves.

TOPNLMS maintains buffer stock of UR8RH and related UR Series modules to support emergency dispatch requirements. Standard orders ship within 3–5 business days; expedited same-day dispatch is available for confirmed critical outage situations. All units are shipped with full documentation, including test records and a 12-month warranty certificate.

Support FAQ

Q1: Is the UR8RH compatible with all UR Series relay frames?
The UR8RH is designed for the GE Universal Relay (UR) platform and is compatible with the majority of UR-frame chassis including C60, D60, F60, G60, L60, M60, N60, T60, and related models. Compatibility depends on the chassis slot assignment and firmware version. We recommend confirming your relay model and firmware revision before ordering. Our technical team can assist with compatibility verification at no charge.

Q2: How is the UR8RH tested before shipment?
Every UR8RH unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, power-on functional verification, CT/VT input channel accuracy check, and communication handshake test with a UR chassis. A test record is included with each shipment. Units that do not pass all test criteria are quarantined and not dispatched.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in GE’s UR Series technical documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will arrange replacement dispatch upon receipt and inspection of the returned unit.

Q4: Can I stock multiple UR8RH units as part of a preventive spare parts program?
Yes, and we strongly recommend it for facilities operating three or more UR-frame relays. A minimum buffer of one UR8RH per protection bay significantly reduces exposure to extended lead times during emergency outages. TOPNLMS offers volume pricing for multi-unit orders and can assist with spare parts program planning for UR Series and other GE Grid Solutions product lines. Contact our team to discuss inventory agreements.
