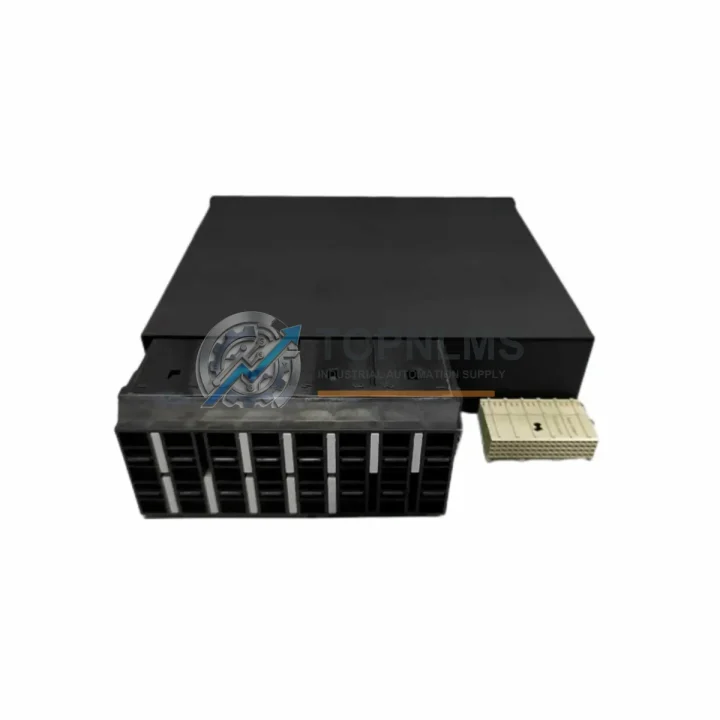

GE UR6FH Ruggedized Digital I/O Module for Harsh Environments

Product Overview

GE UR6FH Ruggedized Digital I/O Module for Harsh Environments

The GE UR6FH is a high-density Digital I/O Expansion Module engineered for the General Electric UR Series protection relay platform — one of the most widely deployed numerical protection architectures in critical power infrastructure worldwide. Designed to operate continuously in environments characterized by extreme temperature cycling, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, the UR6FH delivers the signal integrity and operational resilience that mission-critical industrial installations demand.

In substations, power generation facilities, oil and gas processing plants, and heavy industrial control rooms, protection relay systems must perform without compromise. The UR6FH expands the digital I/O capacity of UR Series relays — including the GE UR T35, T60, L90, D60, and F60 platforms — enabling engineers to connect a broader array of field contacts, trip coils, breaker status inputs, and alarm outputs within a single unified protection scheme. This modularity is essential when retrofitting aging switchgear panels or scaling protection coverage across multi-feeder substations without replacing the entire relay chassis.

The module’s robust construction meets the stringent dielectric, impulse withstand, and EMC requirements expected of IEC 61850-compliant protection equipment. Its optically isolated digital inputs reject ground loops and common-mode noise from adjacent VFDs, motor starters, and high-current bus bars — a persistent challenge in steel mills, cement plants, and petrochemical complexes where the UR6FH is routinely deployed alongside GE Multilin SR750 feeder protection relays and GE Multilin 850 universal relay platforms.

For facilities operating continuous production lines — where an unplanned relay trip or I/O failure can cascade into hours of lost throughput — the UR6FH’s field-replaceable modular design is a decisive advantage. Maintenance teams can swap the module during a scheduled outage window without disturbing the relay’s configuration database or protection settings, minimizing mean time to repair (MTTR) and preserving system availability.

Rugged Specifications Table

Comprehensive Protection Solutions

The UR6FH does not operate in isolation — it is one component within a layered protection and control architecture. In a typical substation bay, the UR6FH-equipped relay works in concert with a GE Multilin 750/760 Feeder Protection Relay for overcurrent and earth fault protection, while a GE Multilin 469 Motor Management Relay safeguards critical pump and compressor motors on the same bus. Trip signals from the UR6FH’s output contacts feed directly into ABB REF615 feeder protection IEDs or interface with legacy electromechanical schemes via interposing relay modules mounted on DIN rail within the same control cabinet.

On the power supply side, the UR Series chassis — and by extension the UR6FH — is typically powered by a Phoenix Contact QUINT-PS 24VDC or equivalent redundant DC power supply, ensuring that a single PSU failure does not compromise protection availability. Upstream, a Schneider Electric Sepam 80 series protection relay may handle transformer differential protection, with the UR6FH-equipped relay managing the downstream feeder bay. Communication between these devices is standardized over IEC 61850 using a managed industrial Ethernet switch — commonly a Hirschmann MACH 100 or Moxa EDS-510A — ensuring deterministic GOOSE message delivery even in electrically noisy switchgear environments.

For facilities requiring SIL-rated safety functions, the UR6FH’s digital outputs can be wired into a Pilz PNOZ X safety relay or a Rockwell Automation GuardLogix safety PLC to implement emergency shutdown (ESD) interlocks. In mining and mineral processing applications, the module frequently interfaces with Siemens SIPROTEC 5 series protection devices and ABB Ability™ System 800xA DCS platforms via hardwired I/O, providing a reliable bridge between numerical protection and process automation layers.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the GE UR6FH is deployed within motor control centers (MCCs) and switchgear rooms that must maintain continuous operation despite ambient temperatures exceeding 50°C, corrosive hydrogen sulfide atmospheres, and frequent voltage transients from large reciprocating compressor starts. Its optically isolated inputs prevent false trips caused by ground potential rise events — a documented failure mode in facilities with inadequate earthing systems.

In coal and metal mining operations, the module withstands the constant mechanical vibration transmitted through structural steel from crushers, conveyors, and hoisting equipment. Protection relay systems in these environments must tolerate shock loads that would destabilize conventional relay contacts; the UR6FH’s solid-state input circuitry is immune to contact bounce and vibration-induced chatter.

In power generation and transmission — including thermal, hydro, and wind generation facilities — the UR6FH expands the I/O capacity of generator protection relays, enabling comprehensive monitoring of breaker auxiliary contacts, lockout relay (86) status, and transformer tap changer positions. Grid operators rely on this data for real-time SCADA visibility and post-fault analysis.

In water and wastewater treatment plants, where continuous pump operation is non-negotiable, the UR6FH provides the additional digital inputs needed to monitor wet-well levels, pump seal failures, and valve position feedback — all integrated into the protection relay’s logic engine without requiring a separate PLC scan cycle.

In metallurgical and steel production facilities, the module operates reliably adjacent to high-power arc furnaces and induction heating systems that generate severe electromagnetic interference. Its EMC-hardened design ensures that protection functions remain stable and that no spurious trip signals are generated during furnace ignition sequences.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The UR6FH carries a 12-month warranty from the date of shipment, covering all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified digital I/O functions within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed promptly — contact [email protected] with your order reference and a description of the fault.

Q2: How is each unit tested before shipment?
Every UR6FH unit undergoes a pre-shipment functional inspection that verifies input channel continuity, output contact operation, and power-up self-test completion. Units sourced from verified supply channels are cross-checked against GE Multilin part number databases to confirm authenticity. Packaging is inspected for transit damage before dispatch, and a test report is available upon request for critical infrastructure procurement.

Q3: Is the UR6FH compatible with all UR Series relay chassis?
The UR6FH is designed for the GE UR Series modular chassis architecture and is compatible with the T35, T60, L90, D60, F60, C60, B30, and B90 relay platforms. Slot compatibility depends on the specific chassis configuration and firmware revision. TOPNLMS technical staff can verify compatibility against your existing relay order code before shipment — provide your relay’s full model number and firmware version for confirmation.

Q4: Can long-term supply and replacement support be arranged?
Yes. TOPNLMS maintains buffer stock of high-demand UR Series modules to support planned maintenance programs and emergency spare requirements. For facilities operating multiple UR Series relays, we recommend establishing a standing spare parts agreement to guarantee availability during critical outage windows. Contact our sales team to discuss volume pricing, lead times, and consignment stock arrangements tailored to your maintenance schedule.
