GE DS200TCDAH1BHD Replacement Upgrade for Mark V: Seamless Transition from Legacy Speedtronic Systems

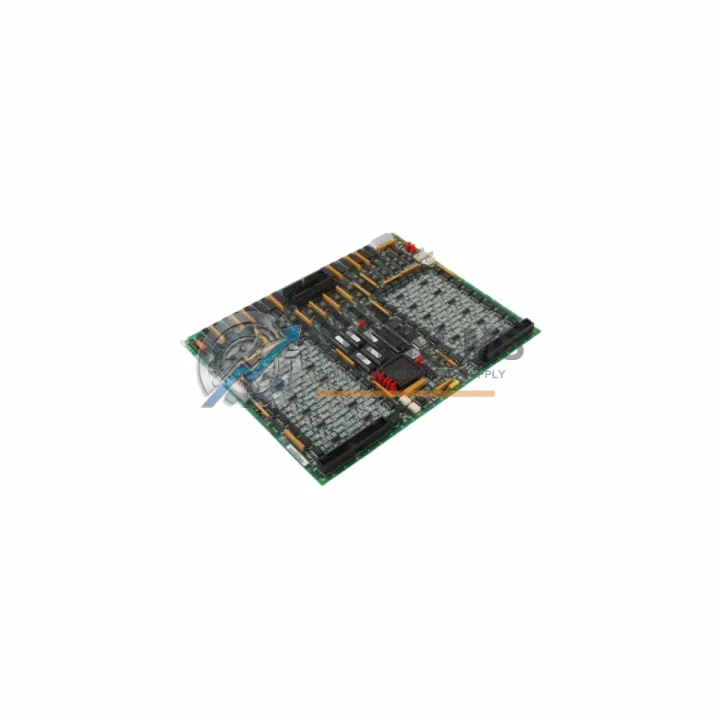

Upgrading or replacing a GE Mark V Speedtronic turbine control system is one of the most critical decisions a plant engineer faces. The DS200TCDAH1BHD Digital I/O Control Board is a core component of the Mark V architecture, responsible for managing discrete input and output signals across the turbine protection, sequencing, and control loops. When this board fails or reaches end-of-life, the consequences range from unplanned shutdowns to extended outages that cost thousands of dollars per hour. TOPNLMS maintains verified stock of the DS200TCDAH1BHD to support both emergency replacement and planned migration projects, ensuring your facility can restore or modernize operations with minimal disruption.

The DS200TCDAH1BHD interfaces directly with the Mark V , , and processor boards within the TMR (Triple Modular Redundant) control architecture. It communicates over the Mark V internal IONet bus and is physically housed in the standard Mark V panel rack, accepting the same 48-pin edge connector as its predecessor variants. Engineers migrating from earlier Mark IV Speedtronic systems or from third-party turbine controllers will find that the DS200TCDAH1BHD’s wiring terminations align with the standard JR, JS, and JT terminal blocks already present in most GE-designed control cabinets, significantly reducing rewiring labor during a retrofit.

For facilities executing a phased migration from a full Mark V suite to a Mark VIe or Mark VIeS platform, the DS200TCDAH1BHD often remains in service during the transition period. It can coexist in the same panel with newer IS200 series I/O modules such as the IS200TRLYH1B relay output board and the IS200TBCIH1B contact input terminal board, provided the system integrator correctly maps the legacy IONet addresses to the new EtherNet/IP backbone. This hybrid approach is common in gas turbine and steam turbine plants where a full cutover is not feasible during a single planned outage window.

Power supply compatibility is another key consideration. The DS200TCDAH1BHD operates on the Mark V’s internal ±15 VDC and +5 VDC regulated rails supplied by the DS200VPBLG1AEE or equivalent power supply board. Before installing a replacement board, technicians should verify that the existing power supply is within specification using the Mark V maintenance manual diagnostic routines. If the power supply is also aging, a concurrent replacement with a tested DS200VPBLG1AEE unit is strongly recommended to avoid a secondary failure shortly after the I/O board swap.

Communication protocol compatibility is fully preserved. The DS200TCDAH1BHD uses the proprietary GE IONet serial protocol native to all Mark V panels, requiring no firmware changes or protocol converters when used as a direct replacement. For plants that have already upgraded their HMI layer to a modern SCADA or DCS platform using a Modbus RTU or Modbus TCP gateway, the existing gateway configuration remains valid after the board swap, since the IONet-to-Modbus translation occurs upstream of the I/O board level.

Physical installation follows the standard Mark V board extraction and insertion procedure. The DS200TCDAH1BHD is a full-size VME-form-factor board that slides into a dedicated slot in the Mark V , , or panel. No additional mounting hardware or panel modification is required. The board’s front-panel LED indicators for I/O status, fault, and power are identical in position and function to the original, allowing maintenance technicians familiar with the Mark V to immediately interpret board health without consulting updated documentation.

For turbine OEM integrators and EPC contractors managing multi-unit sites, TOPNLMS can supply matched sets of DS200TCDAH1BHD boards pre-tested against a reference Mark V rack. Each board undergoes functional verification of all discrete input channels, output relay contacts, and internal bus communication before shipment. This factory-level pre-testing reduces on-site commissioning time and lowers the risk of discovering a defective board only after the turbine has been taken offline for maintenance.

Spare parts planning for Mark V systems should also account for associated components that frequently fail in parallel with the I/O board. The DS200SDCIG2AEB signal conditioning board, the DS200TCQCG1BHF I/O terminal board, and the DS200TCEAG1BHF excitation control board are all candidates for simultaneous inspection and replacement during a planned outage. Stocking these alongside the DS200TCDAH1BHD as a coordinated spare kit is a best practice endorsed by GE’s own turbine maintenance guidelines and reduces the probability of a repeat outage within the same maintenance cycle.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200TCDAH1BHD replacement rarely happens in isolation. During the same planned outage, most plant engineers take the opportunity to inspect and refresh adjacent components that share the same operating environment and failure modes. The DS200SDCIG2AEB signal conditioning board is a frequent companion replacement, as it conditions the analog and discrete signals before they reach the I/O board and is subject to the same thermal cycling stress. Similarly, the DS200TCQCG1BHF I/O terminal board, which provides the physical screw-terminal interface between field wiring and the DS200TCDAH1BHD, should be inspected for oxidized contacts and cracked solder joints.

For facilities upgrading their operator interface alongside the control board replacement, the GE Cimplicity HMI workstation software and its associated Mark V Toolbox programming environment remain the standard configuration tools. No changes to the Toolbox project file are required when swapping a like-for-like DS200TCDAH1BHD, which means the existing ladder logic, sequence of events recorder configuration, and alarm setpoints are preserved without re-engineering effort.

Plants that are simultaneously upgrading their communication infrastructure may be installing a DS200CPCBG1A communications processor board to add Modbus or DNP3 connectivity to the Mark V panel. This upgrade is fully compatible with a concurrent DS200TCDAH1BHD replacement and does not require any slot reassignment within the rack. The DS200VPBLG1AEE power supply board should be verified or replaced at the same time to ensure the additional communication processor does not stress an aging power rail.

For multi-turbine sites executing a rolling upgrade program, TOPNLMS can supply the DS200TCEAG1BHF excitation control board and the DS200EXPSG1ADA expansion I/O board as part of a coordinated spare kit. Bundling these components with the DS200TCDAH1BHD order reduces freight costs, simplifies customs clearance for international shipments, and ensures all boards are from the same tested production batch, minimizing compatibility variance across units.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when installing the DS200TCDAH1BHD?
A: No. The DS200TCDAH1BHD uses the same 48-pin edge connector and is compatible with the existing JR, JS, and JT terminal blocks. Field wiring does not need to be disturbed, which significantly reduces installation time and the risk of wiring errors during the swap.

Q: Will my existing Mark V Toolbox program run without modification?
A: Yes. A like-for-like replacement of the DS200TCDAH1BHD does not require any changes to the Toolbox project file. The board’s IONet address and I/O channel mapping are stored in the Mark V processor, not on the board itself, so the replacement board inherits the existing configuration automatically on power-up.

Q: Is the DS200TCDAH1BHD compatible with both TMR and simplex Mark V configurations?
A: The DS200TCDAH1BHD is designed for the TMR (Triple Modular Redundant) Mark V architecture. It can also be used in simplex configurations with appropriate slot assignment. Consult your Mark V system documentation or contact TOPNLMS technical support to confirm slot compatibility for your specific panel revision.

Q: What communication protocols does the DS200TCDAH1BHD support?
A: The board communicates natively over the GE IONet serial bus. It does not directly support Modbus, Profibus, or EtherNet/IP. If your facility requires these protocols, a separate communications processor board such as the DS200CPCBG1A must be installed in the Mark V panel to provide protocol conversion.

Q: How much panel space does the replacement require?
A: The DS200TCDAH1BHD occupies a single VME slot in the standard Mark V rack. No additional panel space, DIN rail mounting, or external enclosure is required. The physical dimensions are identical to the original board, ensuring a direct fit without any mechanical modification to the control cabinet.

Q: What is the recommended procedure for on-site commissioning after installation?
A: After physical installation, power up the Mark V panel and observe the board’s LED indicators. The fault LED should extinguish within 30 seconds as the processor completes its self-test and IONet enumeration. Run the Mark V diagnostic routines from the Toolbox to verify all I/O channels are responding correctly before returning the turbine to service. TOPNLMS provides a pre-shipment test report for each board that can be used as a baseline reference during commissioning.

Warranty Assurance

Every DS200TCDAH1BHD shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers defects in materials and workmanship under normal operating conditions consistent with the GE Mark V Speedtronic operating environment. Prior to shipment, each board undergoes a multi-stage inspection process that includes visual inspection for physical damage, functional testing of all discrete I/O channels, internal bus communication verification, and power rail integrity checks. A test report documenting the results of these checks is included with every shipment.

In the event of a warranty claim, TOPNLMS will arrange for the return of the defective board and dispatch a verified replacement unit within 3–5 business days of receiving the returned item, subject to stock availability. For critical applications where downtime cannot be tolerated, TOPNLMS offers priority advance-replacement arrangements — contact our sales team to discuss terms before placing your order.

Shipments are dispatched from our Xiamen warehouse via DHL Express, FedEx International Priority, or equivalent express freight services, with typical transit times of 3–7 business days to most international destinations. All shipments include commercial invoice, packing list, and certificate of conformance documentation to facilitate customs clearance. Export compliance is handled in accordance with applicable Chinese export regulations and international trade law.

For procurement teams requiring additional documentation, TOPNLMS can provide material traceability records, country of origin certificates, and third-party inspection reports upon request. Volume pricing is available for orders of 3 or more units. Contact our sales team for a formal quotation.
