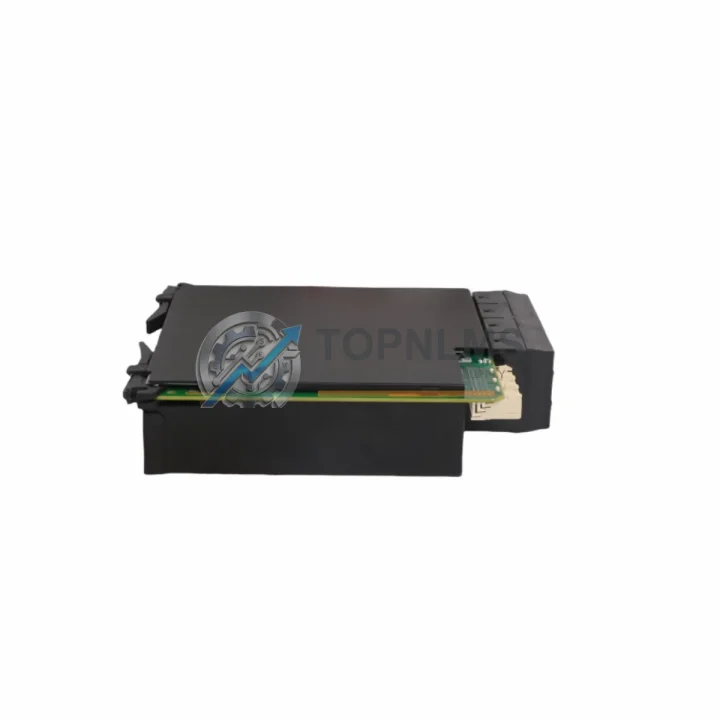

GE UR6AV Replacement Upgrade Solution for UR Series

Product Overview

GE UR6AV Replacement Upgrade Solution for UR Series: Smooth Transition & Legacy System Compatibility

When your GE Multilin UR Series protection relay system requires a Digital I/O Module replacement or upgrade, the GE UR6AV remains one of the most critical plug-in modules in the UR platform architecture. Whether you are retiring an aging UR6AV that has reached end-of-service life, replacing a failed module to restore protection relay functionality, or modernizing a substation automation system built around the UR chassis, this guide covers everything your engineering and procurement team needs to execute a seamless migration with minimal downtime.

The UR6AV is a 6-slot digital I/O module designed for use within the GE Multilin Universal Relay (UR) Series chassis — a platform widely deployed in power utility, oil & gas, mining, and heavy industrial environments for generator protection, transformer protection, feeder protection, and bus differential applications. The UR Series platform, which includes relay models such as the G60 Generator Protection System, T60 Transformer Protection System, F60 Feeder Protection System, and B90 Bus Differential Protection System, relies on modular plug-in I/O cards like the UR6AV to expand digital input and output capacity within the relay chassis.

Replacing or upgrading the UR6AV in an operational protection relay system requires careful attention to wiring compatibility, firmware version alignment, chassis slot assignment, and communication protocol continuity. This page provides a structured migration reference for engineers, maintenance technicians, and procurement specialists managing UR Series relay upgrades in live substation or industrial control environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful UR6AV replacement rarely happens in isolation. In most substation and industrial relay panel upgrades, the I/O module swap is part of a broader system modernization effort that touches multiple components within the same UR chassis or control cabinet. Based on common field migration scenarios, the following related components are frequently sourced alongside the UR6AV:

When the UR6AV is replaced due to a failed relay output, engineers often simultaneously inspect the UR6H — Power Supply Module to ensure stable 24 V DC or 125 V DC auxiliary power delivery to the chassis. A degraded power supply is a common root cause of I/O module failures in aging UR Series installations. In parallel, the UR6T — CPU / Communications Module may be evaluated for firmware currency, particularly if the site is migrating from an older DNP3 SCADA architecture to IEC 61850 GOOSE messaging — a transition that requires both the CPU module and the I/O modules to operate on compatible firmware branches.

For sites running GE Multilin G60 Generator Protection relays or T60 Transformer Protection relays, the UR6AV is typically installed in slots 3–6 of the UR chassis alongside analog input modules such as the UR6F — AC Current/Voltage Input Module, which handles CT and VT secondary inputs. When performing a full chassis audit during a planned outage, procurement teams often source the UR6AV, UR6F, and UR6H together to minimize the risk of a repeat outage caused by a second module failure shortly after the first replacement.

Communication continuity is another critical consideration. If the existing relay communicates via a GE Multilin EnerVista UR Setup programming cable (typically a USB-to-RS232 or fiber interface cable), ensure the cable and driver version are compatible with the relay’s current firmware before initiating the module swap. In SCADA-integrated substations, the UR6C — Communications Module supporting IEC 61850, DNP3, or Modbus TCP should be verified for slot assignment and configuration integrity after the UR6AV is reseated.

For older installations where the UR Series relay is mounted in a legacy control cabinet alongside discontinued GE Multilin SR Series or 489 Generator Management Relay units, the UR6AV upgrade is often the first step in a phased migration toward a fully IEC 61850-compliant protection architecture. Signal isolators and terminal adapter blocks may be required at the cabinet level to bridge legacy wiring standards with the UR platform’s rear terminal interface.

Retrofit Guidance FAQ

Q: Can I replace the UR6AV without rewiring the rear terminal block?
A: Yes. The UR6AV uses a rear-mounted terminal block that remains fixed to the chassis when the module is removed. The plug-in card slides out from the front of the chassis, leaving all field wiring intact. This design allows for a direct swap without disconnecting any field cables, significantly reducing replacement time and the risk of wiring errors.

Q: Do I need to reconfigure the relay after installing the replacement UR6AV?
A: In most cases, no. The relay’s settings file (stored in the CPU module) retains all I/O assignments, logic equations, and protection settings. After installing the replacement UR6AV in the same chassis slot, the relay will automatically recognize the module and restore normal operation. However, it is recommended to perform a functional test of all digital inputs and outputs using GE EnerVista UR Setup software before returning the relay to service.

Q: Is the UR6AV compatible with all UR Series relay models?
A: The UR6AV is designed for use within the GE Multilin UR Series chassis platform, which is shared across relay models including the G60, T60, F60, D60, C60, L90, and B90. Slot compatibility depends on the specific relay model and chassis configuration. Consult the relay’s order code and chassis layout diagram to confirm slot assignment before ordering.

Q: What communication protocols are supported after the UR6AV replacement?
A: The UR6AV is a digital I/O module and does not independently handle communication protocols. All SCADA communication (IEC 61850, DNP3, Modbus RTU/TCP) is managed by the relay’s CPU and communications modules. Replacing the UR6AV has no impact on the relay’s communication configuration or protocol settings.

Q: What if the replacement UR6AV does not fit the chassis slot?
A: Verify the chassis slot type (6-slot vs. 8-slot) and the module’s hardware revision against the relay’s order code. Contact TOPNLMS with your relay model number and chassis configuration for pre-shipment compatibility verification.

Q: How long does shipping take?
A: TOPNLMS ships from Xiamen, China. Standard international shipping typically takes 5–10 business days depending on destination. Expedited DHL/FedEx options are available for urgent replacement requirements. All units are tested and inspected before dispatch.

Warranty Assurance

Every GE UR6AV Digital I/O Module supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point pre-shipment inspection covering physical integrity, connector condition, and functional verification to ensure it meets OEM specifications.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team with your order number and a description of the fault, and we will arrange a replacement unit or issue a refund based on the situation. Our average response time for warranty inquiries is within 1 business day.

For procurement teams managing critical infrastructure spares, TOPNLMS can provide test reports, inspection certificates, and shipping documentation upon request. We understand that industrial control system components require full traceability, and we are committed to supporting your quality assurance process from order to installation.

Whether you are sourcing a single emergency replacement or building a strategic spare parts inventory for a fleet of GE Multilin UR Series relays, TOPNLMS offers competitive pricing, reliable stock availability, and the technical support needed to keep your protection relay systems operating without interruption.
