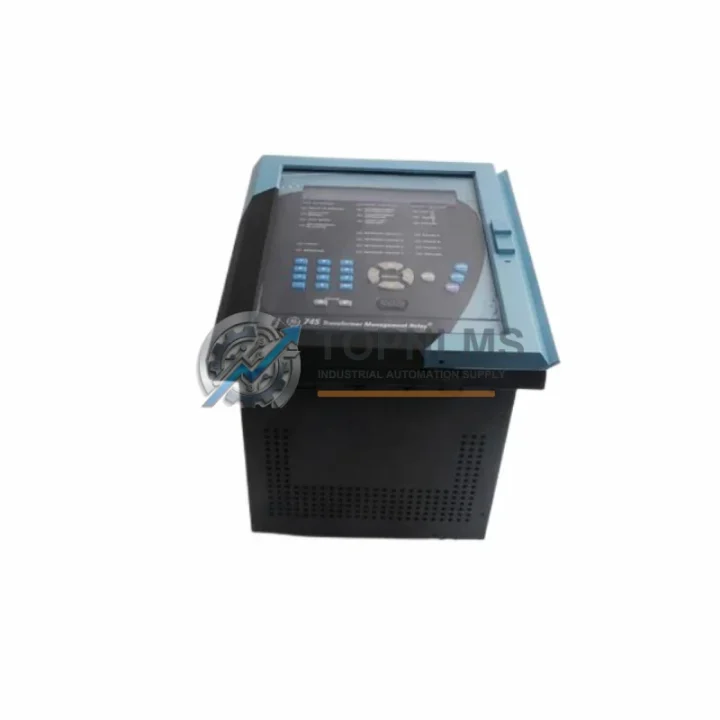

GE SR745-CASE 745-W2-P5-G5-HI-T Original Industrial Spare 745 Compatible

Product Overview

GE SR745-CASE 745-W2-P5-G5-HI-T: Original Spare for Transformer Protection System Stability

The GE SR745-CASE 745-W2-P5-G5-HI-T is an original GE Multilin 745 Series transformer protection relay input module, engineered for mission-critical power transformer protection in industrial substations, utility switchgear, and heavy manufacturing facilities. As a genuine OEM spare, this unit delivers the same firmware-level compatibility, I/O mapping, and protection logic as the factory-installed module — ensuring zero-compromise replacement in live protection schemes.

In industrial environments where transformer failures cascade into full-plant shutdowns, maintaining a verified spare of the SR745-CASE is not optional — it is a core element of any responsible maintenance strategy. Unplanned transformer outages routinely cost facilities tens of thousands of dollars per hour in lost production. Having this module on the shelf converts a potential multi-day emergency procurement into a same-shift swap.

Critical Technical Specs

Preventive Maintenance Strategy

Transformer protection relay systems are only as reliable as their weakest component. When scheduling a planned outage or annual substation inspection, the SR745-CASE module should be evaluated alongside the full 745 relay assembly. Technicians performing a comprehensive inspection of the protection panel should simultaneously verify the condition of the GE 745-W2 current transformer input board and the 745-P5 auxiliary power supply module, as these share the same backplane and are subject to identical thermal cycling stress.

In the same control cabinet, the GE Multilin 489 Generator Management Relay and GE 369 Motor Management Relay are frequently co-installed and should be included in the same inspection cycle. Relay output contacts driving trip coils should be tested in conjunction with the GE SR745 output relay expansion module to confirm contact integrity and coil resistance within specification.

For facilities running IEC 61850 GOOSE-based protection schemes, the 745-G5 Ethernet communications card within this assembly is a critical node. A spare communications module should be stocked alongside the SR745-CASE to prevent protocol-level failures from disabling remote SCADA visibility. Similarly, the GE Multilin 850 feeder protection relay installed on outgoing feeders from the protected transformer should be inspected for firmware version alignment with the 745 relay to ensure coordinated protection curves remain valid.

During transformer differential protection commissioning or re-commissioning after a tap changer service, technicians should cross-check CT polarity and ratio settings against the GE 745 relay settings file stored in the EnerVista 745 Setup software. If the control panel also houses a GE Multilin 750/760 feeder relay or a GE UR-series Universal Relay, those units’ event logs should be reviewed simultaneously to identify any upstream or downstream fault signatures that may have stressed the transformer prior to the maintenance window.

Stocking a GE SR745-CASE spare is most effective when paired with a documented spare parts register that also includes the 745 relay faceplate / HMI display assembly, terminal block connectors (Phoenix Contact or equivalent), and the relevant CT shorting plugs. This approach ensures that any field replacement can be completed within a single shift without secondary procurement delays.

Strategic Replacement Solutions

The GE Multilin 745 platform has been in service at power utilities and industrial facilities for over two decades. Many installations running the original 745 relay firmware are no longer supported under GE’s active product lifecycle, making verified OEM spare modules the only path to maintaining original protection logic without a full relay replacement project.

The SR745-CASE 745-W2-P5-G5-HI-T is a direct drop-in replacement for any failed or degraded 745 case module sharing the same option codes. No firmware re-flashing, no settings migration, and no CT re-wiring is required when the replacement unit carries identical option codes — reducing field replacement time to under two hours for a trained protection engineer.

For facilities considering a phased modernization, stocking this module extends the operational life of the existing 745 relay installation by 5–10 years, deferring capital expenditure on a full IED replacement program. This is particularly valuable in facilities where the 745 relay is deeply integrated into a legacy SCADA or DCS architecture — replacing the relay would require extensive I/O remapping, protocol gateway reconfiguration, and protection study updates that far exceed the cost of a spare module.

TOPNLMS sources, inspects, and tests each SR745-CASE unit prior to shipment. Every module undergoes functional verification of power supply output, digital input response, and communications port integrity. Units are shipped with anti-static packaging, individual test records, and a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
