GE SR469-P5-HI-A20 Replacement for SR469 Series

Product Overview

GE SR469-P5-HI-A20 Replacement for SR469 Series: Seamless Transition & Legacy System Compatibility

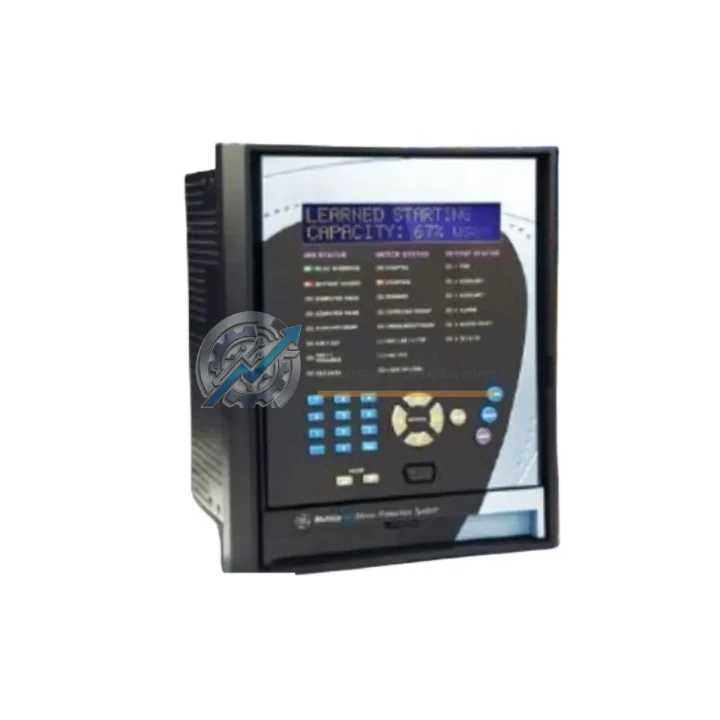

The GE SR469-P5-HI-A20 is a high-specification motor management relay from GE Multilin’s SR469 series, engineered for comprehensive protection of medium- and large-horsepower AC motors in industrial environments. As legacy SR469 units reach end-of-service life or become obsolete in aging control systems, the SR469-P5-HI-A20 serves as the authoritative drop-in replacement and upgrade solution — preserving existing wiring infrastructure, communication architecture, and control cabinet layouts while delivering modern protection performance.

Industrial facilities operating older GE Multilin SR469 variants — including the SR469-P5-HI-A10, SR469-P5-LO-A20, and SR469-P3-HI-A20 — frequently encounter discontinued firmware support, unavailable spare parts, and degraded relay response accuracy. The SR469-P5-HI-A20 addresses all of these pain points with a physically and electrically compatible form factor, enabling retrofit without panel redesign or rewiring campaigns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SR469-P5-HI-A20 retrofit rarely involves the relay alone. In practice, migration from an aging motor protection system requires coordinated replacement of several interdependent components within the same control cabinet or MCC (Motor Control Center) lineup.

When replacing the SR469-P5-HI-A20 in a Modbus RTU network, the RS-485 communication wiring and network termination resistors must be verified for impedance matching. If the existing network uses a GE Multilin 750/760 feeder protection relay or a GE Multilin 469 motor management relay on the same RS-485 bus, the SR469-P5-HI-A20 integrates without protocol conversion, preserving SCADA polling addresses and register maps with minimal reconfiguration.

For facilities running GE Mark V or Mark VI turbine control systems that interface with motor protection relays via hardwired I/O, the SR469-P5-HI-A20’s relay output contacts (trip, alarm, and auxiliary) maintain the same terminal assignments as predecessor units. This means existing interlock wiring to the GE Mark VI I/O modules — including digital input cards and relay output cards — remains intact, eliminating the need for I/O mapping changes in the control system logic.

In MCC applications where the SR469 relay is mounted alongside a GE Multilin 239 motor protection relay or a GE Multilin 369 motor management relay protecting smaller motors in the same lineup, the SR469-P5-HI-A20 occupies the same panel cutout dimensions, preserving cabinet door clearances and cable management trays. Facilities upgrading multiple bays simultaneously often source the GE Multilin 369-HI-R-M-0-0-0 alongside the SR469-P5-HI-A20 to standardize the protection platform across motor sizes.

Power supply compatibility is a critical consideration. The SR469-P5-HI-A20’s HI-range auxiliary power input (100–240 VAC/VDC) accepts both AC and DC control power, making it compatible with existing 125 VDC station battery systems common in utility substations and petrochemical plants. No auxiliary power transformer or DC-DC converter is required when replacing units in 125 VDC control schemes.

For sites where the SR469 communicates upstream to a GE D20MX RTU or a GE UR-series relay (such as the GE C60 or GE T60) via Modbus, the SR469-P5-HI-A20 retains the same default Modbus register structure. Engineers can import existing SR469 settings files using GE EnerVista SR469 Setup software, reducing commissioning time from days to hours. If the site uses a third-party SCADA such as GE iFIX or Wonderware, no driver changes are required.

Current transformer (CT) secondary wiring connected to the SR469-P5-HI-A20’s P5 current inputs (rated for 1–5A secondary) is directly reusable from legacy P5-variant installations. Phase CT and ground CT connections follow the same terminal numbering, and the motor nameplate data — full-load amps, service factor, and thermal damage curve — can be re-entered from the existing relay settings sheet without re-engineering the protection coordination study.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring when replacing an SR469-P5-HI-A10 with the SR469-P5-HI-A20?
A: Yes. The terminal block layout is identical across the SR469 P5 family. Phase CT, ground CT, voltage input, auxiliary power, and relay output wiring can be transferred directly. Verify terminal torque specifications per the SR469 installation manual before energizing.

Q: Is the Modbus RTU address and register map compatible with my existing SCADA configuration?
A: The SR469-P5-HI-A20 uses the same Modbus RTU register map as all SR469 series relays. Your existing SCADA polling configuration, HMI tag database, and historian mappings remain valid. Only the unit address (set via front-panel keypad) needs to be confirmed to match the replaced unit.

Q: Will the SR469-P5-HI-A20 fit in the same panel cutout as my existing SR469?
A: Yes. All SR469 series relays share the same 19″ rack-mount or flush-panel cutout dimensions. No mechanical modification to the control cabinet door or mounting rail is required.

Q: Can I transfer settings from the old relay to the new SR469-P5-HI-A20?
A: Settings can be exported from the legacy unit using GE EnerVista SR469 Setup software (if the unit is still functional) and imported directly into the SR469-P5-HI-A20. For units that have failed, settings can be reconstructed from the original commissioning sheet or protection coordination study.

Q: What communication protocols does the SR469-P5-HI-A20 support?
A: The SR469-P5-HI-A20 supports Modbus RTU over RS-485 as the primary communication protocol. DNP3 and other protocol options are available on specific SR469 variants. Confirm your required protocol variant before ordering.

Q: How long does commissioning typically take for a direct replacement?
A: For a direct P5-to-P5 replacement with settings transfer, experienced protection engineers typically complete commissioning — including wiring verification, settings upload, CT polarity check, and functional trip test — within 4–8 hours, minimizing motor downtime.

Warranty Assurance

Every GE SR469-P5-HI-A20 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including auxiliary power input testing, communication port integrity check, and relay output continuity verification. Units are packaged in anti-static, shock-resistant packaging suitable for international air and sea freight.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund processing within 5 business days of defect confirmation. Our technical support team — reachable at [email protected] — provides pre-sales compatibility consultation, settings migration guidance, and post-installation commissioning support at no additional charge.

Stock is maintained in Xiamen, China, with express DHL/FedEx international shipping available for emergency replacement orders. Lead time for in-stock units is typically 3–5 business days to major industrial hubs globally. For bulk procurement or long-term supply agreements covering multiple SR469 variants, contact our sales team for volume pricing and consignment stock arrangements.

TOPNLMS specializes in sourcing and supplying obsolete, discontinued, and hard-to-find industrial automation components — including GE Multilin protection relays, GE Mark series control system modules, and GE Fanuc PLC hardware — for power generation, oil & gas, petrochemical, mining, and heavy manufacturing industries worldwide.
