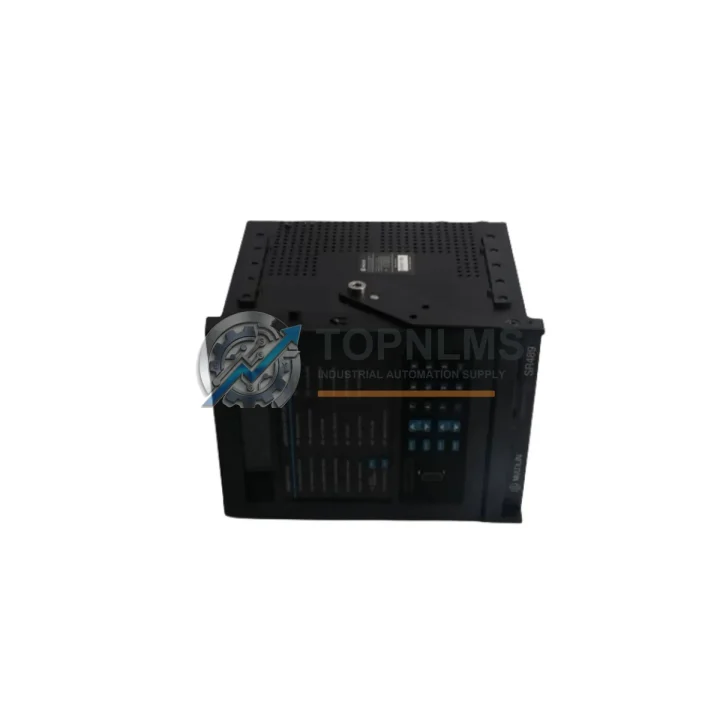

GE SR469-P5-HI-A20-E-H Original Industrial Spare SR469 Compatible

Product Overview

GE SR469-P5-HI-A20-E-H Original Industrial Spare: System Stability and Motor Protection Assurance

The GE SR469-P5-HI-A20-E-H is a genuine GE Multilin SR469 Motor Management Relay — a mission-critical protection device engineered for continuous-duty industrial motor applications. In facilities where unplanned motor failures translate directly into production losses, having a verified original spare of the SR469-P5-HI-A20-E-H on hand is not optional; it is a core element of any responsible maintenance strategy. This unit provides comprehensive motor protection including thermal overload, differential, ground fault, and phase unbalance detection, making it indispensable in petrochemical plants, water treatment facilities, mining operations, power generation stations, and heavy manufacturing environments.

Every SR469-P5-HI-A20-E-H unit supplied by TOPNLMS is sourced as an original component, individually inspected, function-tested prior to dispatch, and backed by a 12-month warranty. Orders are processed and shipped within 1–3 business days, with express logistics options available for emergency maintenance scenarios.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting the Full Motor Control Loop

When a motor management relay such as the SR469-P5-HI-A20-E-H is flagged for replacement during a scheduled shutdown or emergency callout, experienced maintenance engineers know that the relay itself is rarely the only component under stress. The entire motor control loop — from the upstream power feed through the MCC panel to the motor terminals — should be inspected systematically to prevent repeat failures and maximize the value of each maintenance window.

Begin with the current transformer (CT) circuits feeding the SR469. Degraded CTs or loose secondary wiring are a leading cause of nuisance trips and false differential alarms. While the relay is de-energized, verify CT ratios, insulation resistance, and terminal torque values. At the same time, inspect the RTD wiring harness connecting motor winding and bearing sensors to the relay’s RTD input terminals — corroded or broken RTD leads will cause the SR469 to log erroneous thermal data, masking real overheating conditions.

The output relay contacts of the SR469 drive downstream devices including motor contactors, circuit breakers, and annunciator panels. If the relay has been in service for several years, the associated motor contactor (such as GE CL-series or equivalent IEC contactors) should be inspected for contact wear and arc erosion. A contactor with pitted contacts will not interrupt fault current cleanly even when the SR469 issues a correct trip signal, negating the protection benefit of the relay replacement.

For facilities running GE Multilin-based protection schemes, it is also prudent to audit the GE Multilin 369 Motor Management Relay units installed on smaller motors in the same MCC lineup — the 369 and 469 series share similar firmware architecture and communication protocols, and a systematic review of both relay families during the same maintenance campaign reduces future downtime risk. Similarly, any GE Multilin 239 Motor Protection Relay units protecting pump or fan motors in the same electrical room should be checked for firmware currency and contact condition.

Communication integrity is equally important. The SR469-P5-HI-A20-E-H uses RS-485 Modbus RTU for SCADA integration. Inspect the RS-485 communication cable and termination resistors throughout the daisy-chain network. A single failed termination or damaged cable segment can cause intermittent communication loss across all relays on the bus, complicating fault diagnosis. If the facility uses Profibus DP, verify the Profibus DP communication module seated in the SR469 chassis is firmly connected and that the network segment is properly terminated at both ends.

Within the MCC panel itself, check the 24 VDC or 48 VDC auxiliary power supply module that powers the relay’s control circuits. Aging power supplies with high output ripple can cause relay microprocessor resets and data log corruption — symptoms that are frequently misdiagnosed as relay hardware failure. Replacing a worn auxiliary PSU alongside the SR469 eliminates this ambiguity. Also inspect the terminal blocks and DIN rail assemblies in the relay wiring zone; loose or oxidized terminals are a common source of intermittent signal errors in motor protection circuits.

For motors equipped with variable frequency drives (VFDs), confirm that the VFD output filter and motor cable shielding are intact. High-frequency switching noise from VFDs can induce false ground fault readings in sensitive protection relays. A properly grounded and shielded motor cable, combined with a correctly configured ground fault sensitivity setting in the SR469, is essential for stable operation in VFD-driven motor applications.

Finally, if the facility operates a GE Mark VIe or similar DCS platform, verify that the DCS I/O module receiving hardwired trip and alarm signals from the SR469 output relays is functioning correctly. A failed DCS digital input card can prevent the control system from registering a motor trip, leading operators to believe the motor is still running when it has in fact been shut down by the relay — a dangerous condition in process-critical applications.

Strategic Replacement Solutions: Minimizing Downtime, Preserving System Compatibility

The SR469-P5-HI-A20-E-H is a direct form-fit-function replacement for earlier SR469 variants including the SR469-P5-HI-A20-E and SR469-P5-LO-A20-E-H. The physical mounting footprint, terminal block layout, and communication protocol are identical across the SR469 product family, meaning a trained technician can complete a relay swap in a planned maintenance window without requiring panel modifications or rewiring. This backward compatibility is a significant operational advantage for facilities managing aging MCC infrastructure where panel space and wiring modifications are costly and time-consuming.

For sites that have been operating SR469 relays for more than ten years, TOPNLMS recommends a proactive replacement strategy rather than a reactive break-fix approach. Stocking one or two SR469-P5-HI-A20-E-H units as on-site cold spares reduces mean time to repair (MTTR) from days — the typical lead time for emergency procurement — to hours. This is particularly valuable in continuous-process industries such as oil refining, chemical production, and pulp and paper manufacturing, where a single motor trip on a critical pump or compressor can halt an entire production line.

When upgrading from an older SR469 firmware revision, the new unit’s settings can be pre-loaded using GE Multilin’s EnerVista SR469 Setup software before installation, allowing the relay to be commissioned offline and swapped into service with minimal interruption. TOPNLMS can advise on firmware compatibility and settings migration as part of the procurement process.

Support FAQ

Q1: Is the SR469-P5-HI-A20-E-H a direct drop-in replacement for my existing SR469 unit?
Yes. The SR469-P5-HI-A20-E-H shares the same physical dimensions, terminal block layout, and communication interface as all SR469 series variants. Existing wiring and panel cutouts are fully compatible. Settings from the outgoing relay can be exported via EnerVista software and imported into the replacement unit before installation.

Q2: What does the 12-month warranty cover?
All SR469-P5-HI-A20-E-H units supplied by TOPNLMS are covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. Each unit is function-tested prior to dispatch. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer.

Q3: How quickly can the SR469-P5-HI-A20-E-H be shipped for an emergency maintenance situation?
Standard orders are processed and dispatched within 1–3 business days. For emergency maintenance requirements, express shipping options are available. Contact TOPNLMS directly at [email protected] or +86 18359293191 to discuss expedited fulfillment for critical downtime situations.

Q4: How should I verify compatibility before ordering if my existing relay has a different suffix code?
The SR469 model number encodes the power supply voltage range (A20 = 20–60 V AC/DC), output relay type (HI = high-interrupting), communication option (E = RS-485/Modbus, H = additional protocol), and protection element count (P5). If your existing relay has a different suffix, share the full model number with TOPNLMS and our technical team will confirm compatibility or identify the correct replacement variant before your order is placed.
